Trouble Diagnoses Symptom Chart

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Always check the "Work Flow" before troubleshooting. Refer to WORK FLOW .

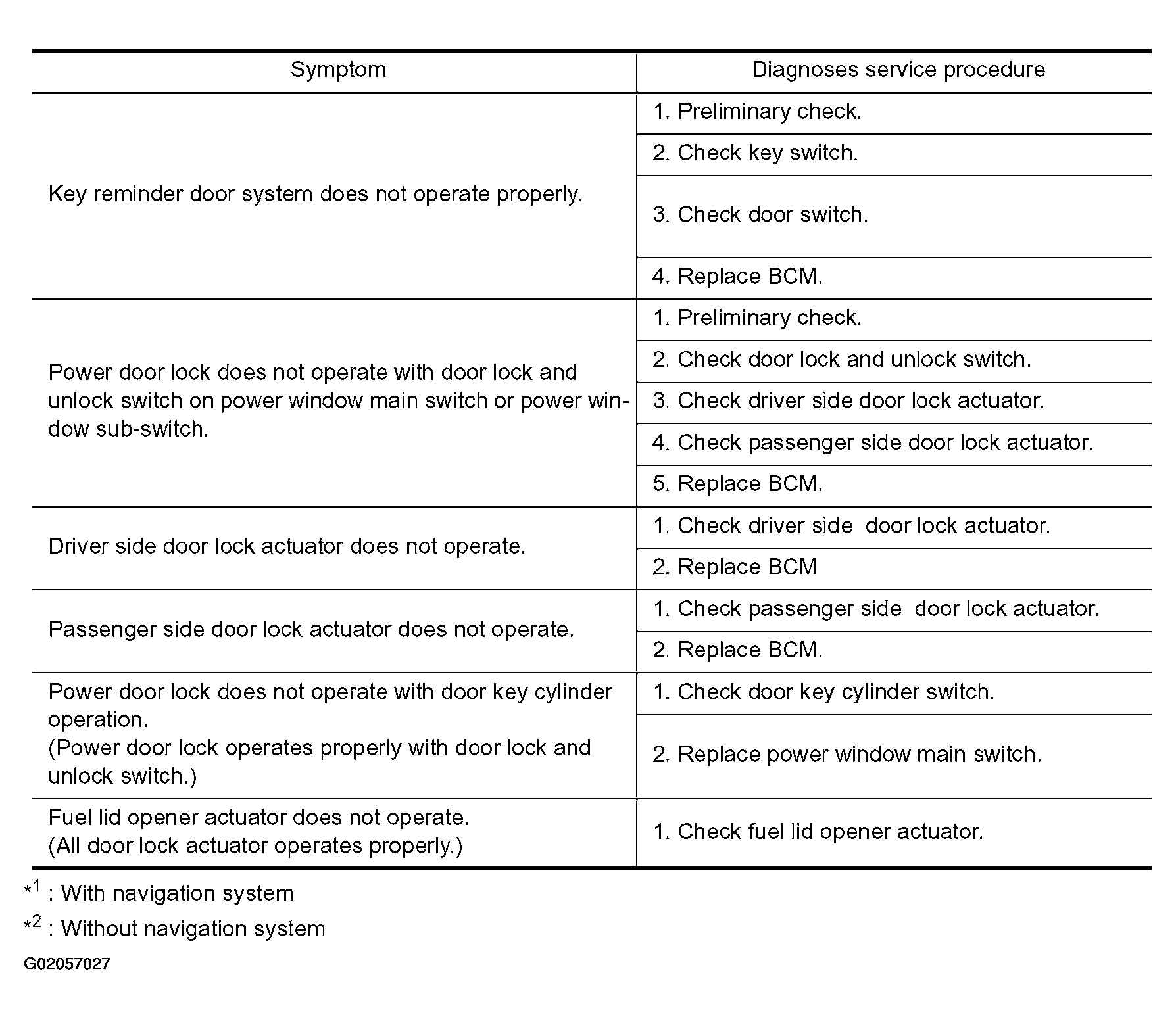

Fig 1: Trouble Diagnoses Symptom Chart
G02057027Courtesy of NISSAN MOTOR CO., U.S.A.
