Mode 4: Notes

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Each time TUNE switch is pressed, error records of A/C and audio controller, as well as audio unit are displayed.

Fig 1: Locating Mode 4 Display
G02159004Courtesy of NISSAN MOTOR CO., U.S.A.

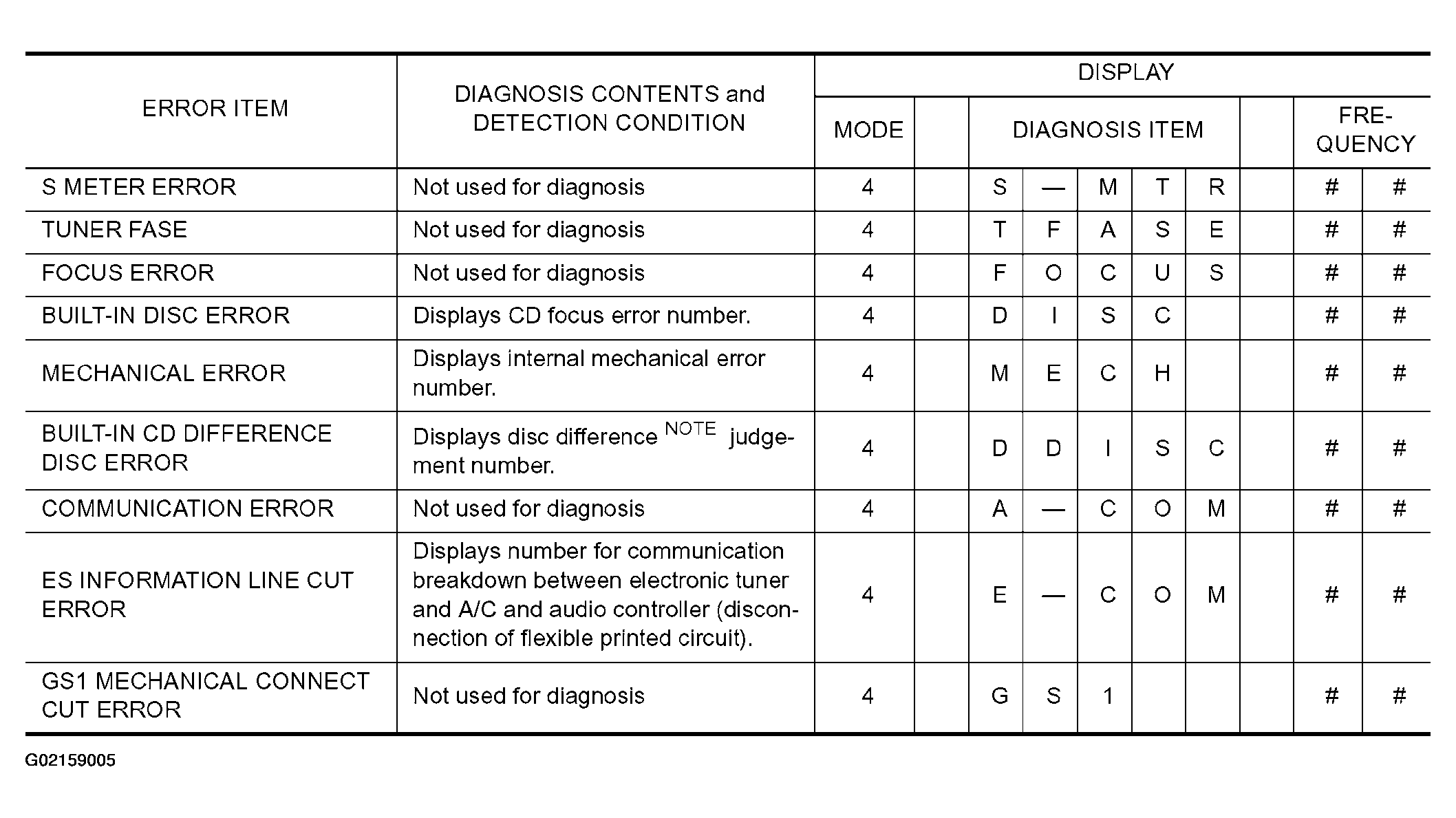

Fig 2: Mode 4 Display Table
G02159005Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Disc difference indicates special-shaped disc or damaged disc.
