Work Step
WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

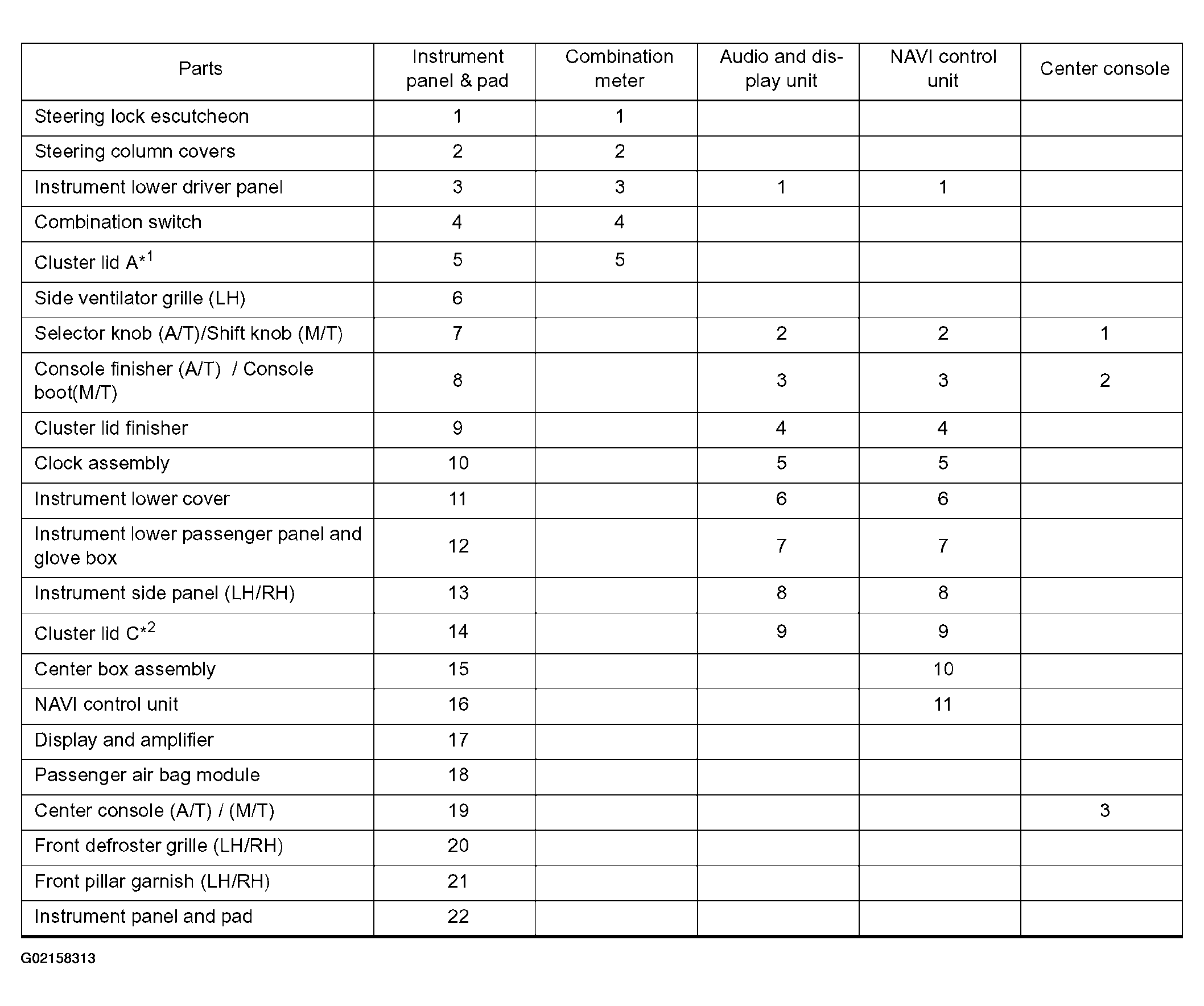

When removing instrument panel and pad, combination meter, audio and display, navigator control unit and center console, take steps in the order shown by the numbers below.
NOTE:
*1: When disassembling and assembling combination meter and mirror control switch, refer to CLUSTER LID A .
*2: When disassembling and assembling center ventilator grille, audio and display unit assembly and navigator switch, refer to CLUSTER LID C .
