Center Box Assembly

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screws.
  2. Hold left side of center box assembly, pull to outside of vehicle and disconnect metal clips. Remove center box assembly.

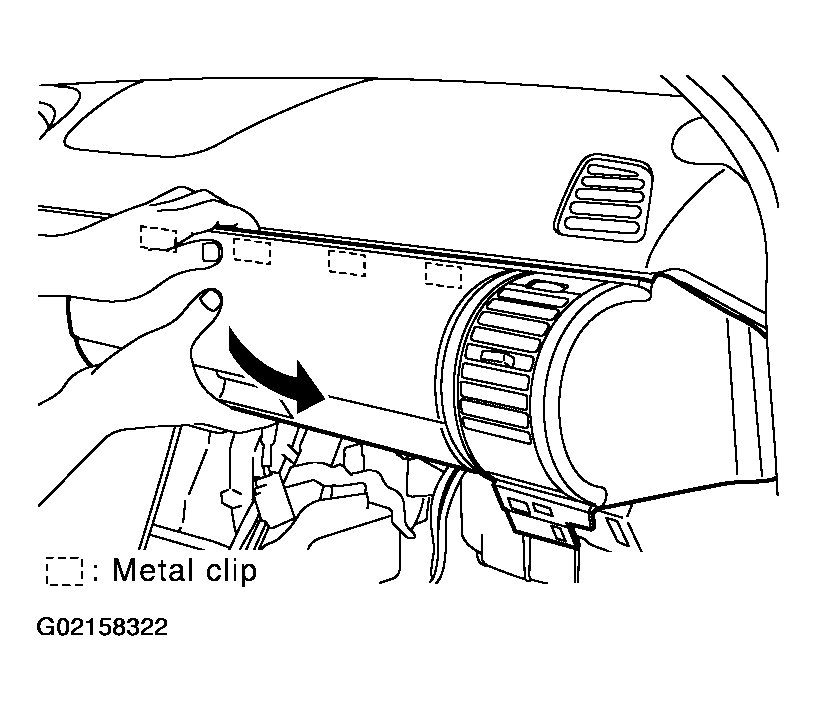

    Fig 1: Removing Center Box Assembly
    G02158322Courtesy of NISSAN MOTOR CO., U.S.A.
  3. After removing, remove side ventilator grille and lid. refer to , CENTER BOX ASSEMBLY  .
