Center Box Assembly

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

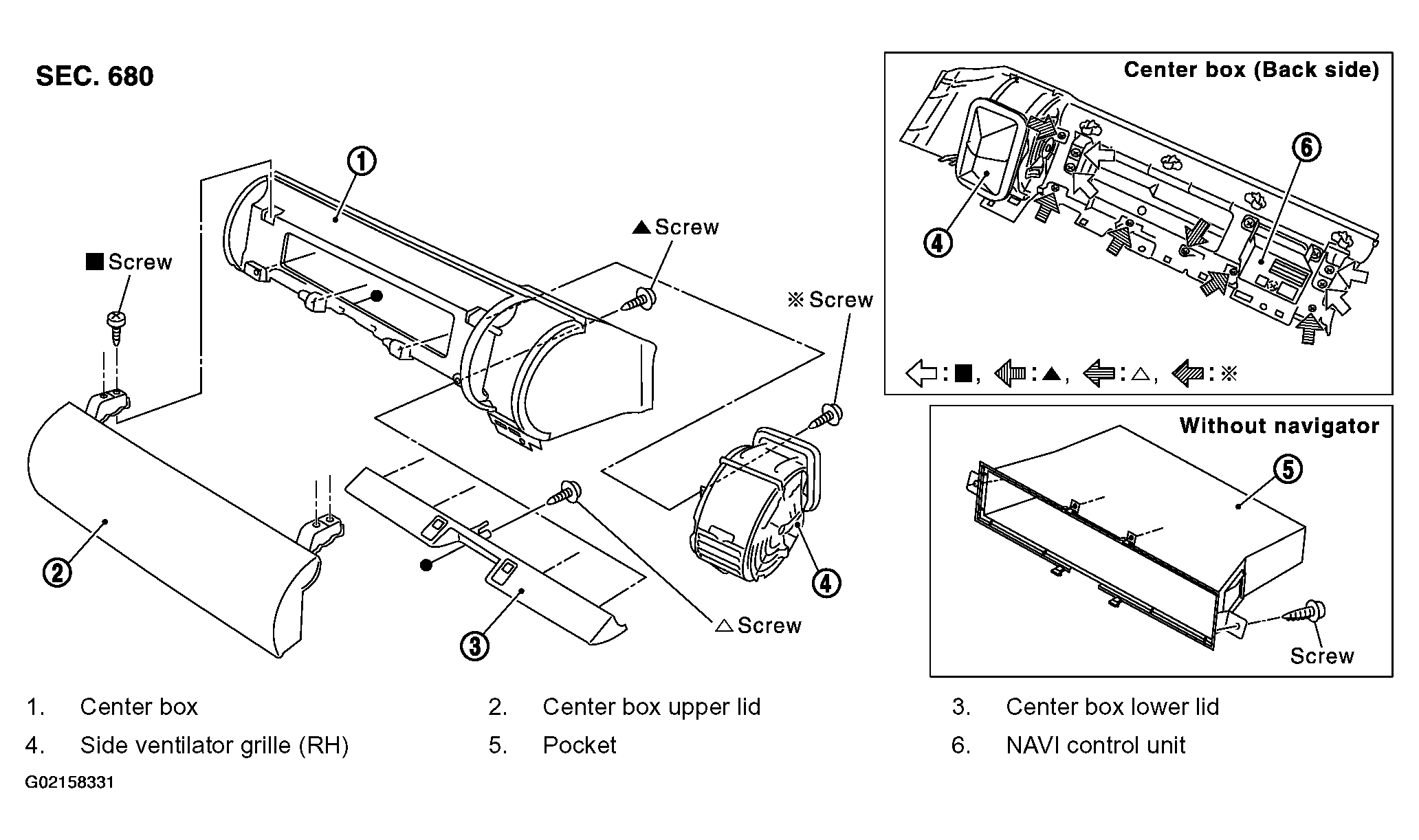

Fig 1: Disassembling Center Box Assembly
G02158331Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove screws and pawls, and remove side ventilator (RH).
  2. Remove screws and remove NAVI control unit.
  3. Remove screws and remove pocket (without NAVI).
  4. Remove screws and remove center box upper and lower lid.
