TCM Inspection Table

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Data are reference value. Measured between each terminals 5, 14, 24 and 46 (TCM ground).

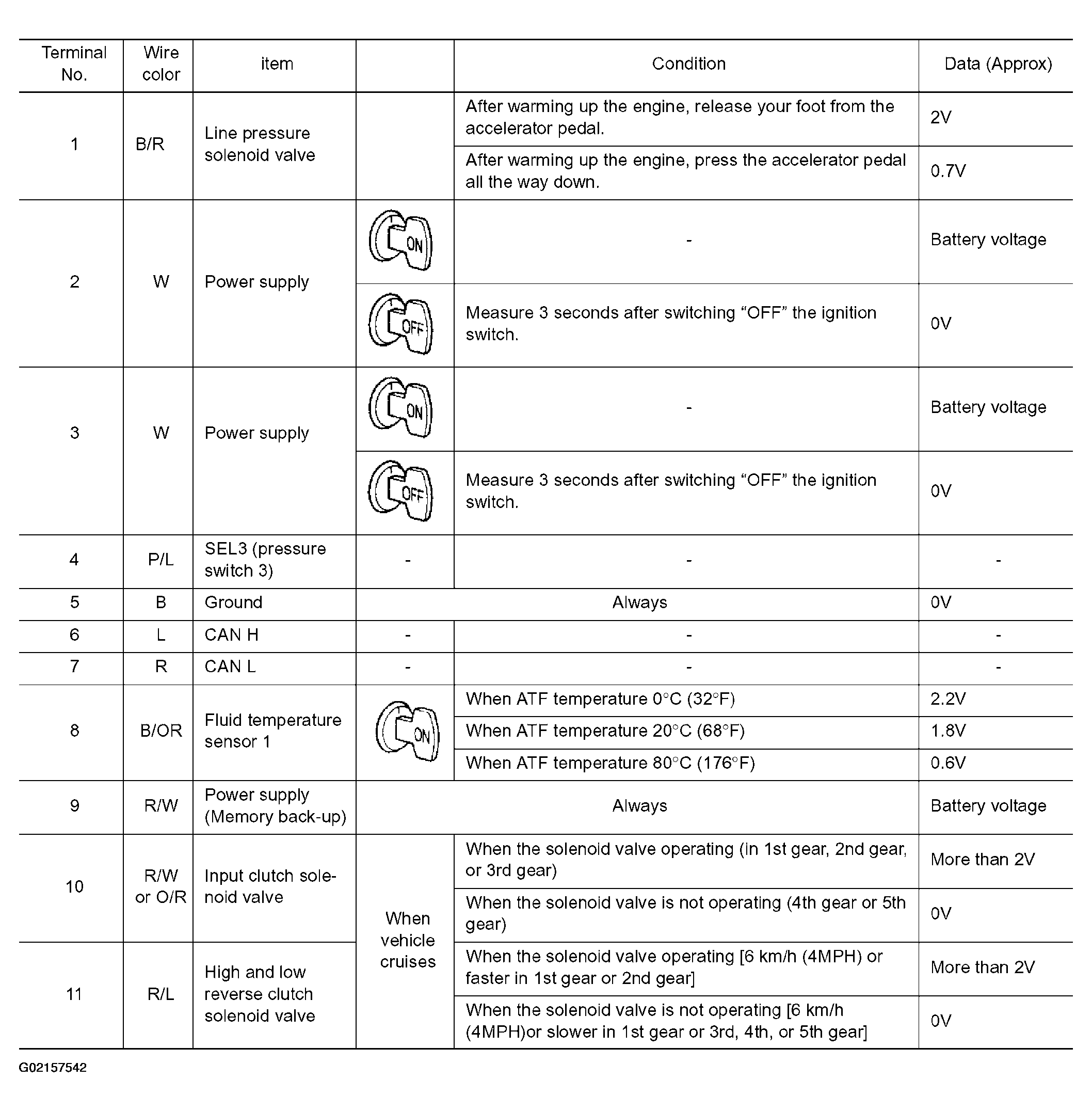

Fig 1: Identifying TCM Inspection Table (Terminals 1-11)

Courtesy of NISSAN MOTOR CO., U.S.A.

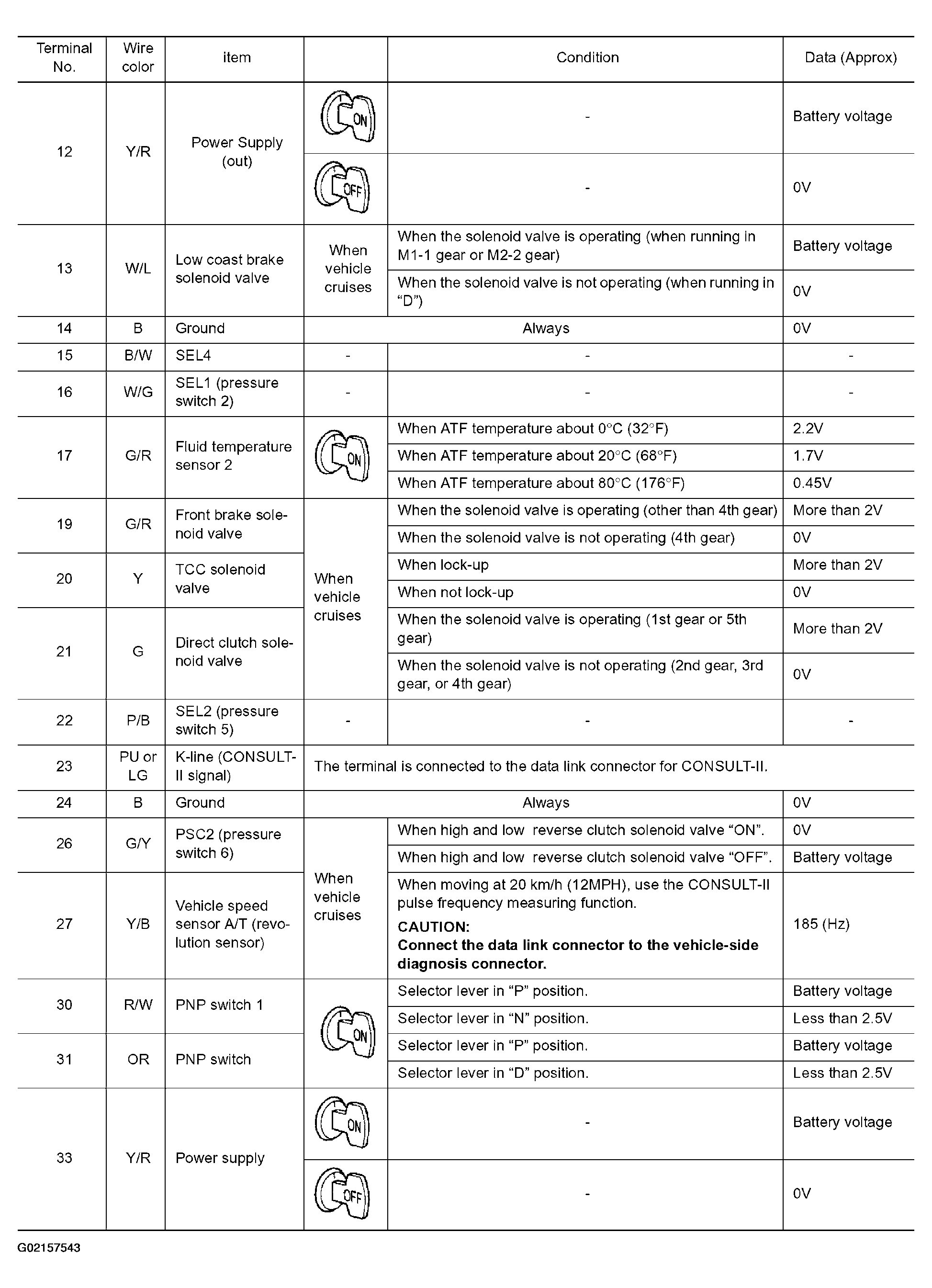

Fig 2: Identifying TCM Inspection Table (Terminals 12-33)

Courtesy of NISSAN MOTOR CO., U.S.A.

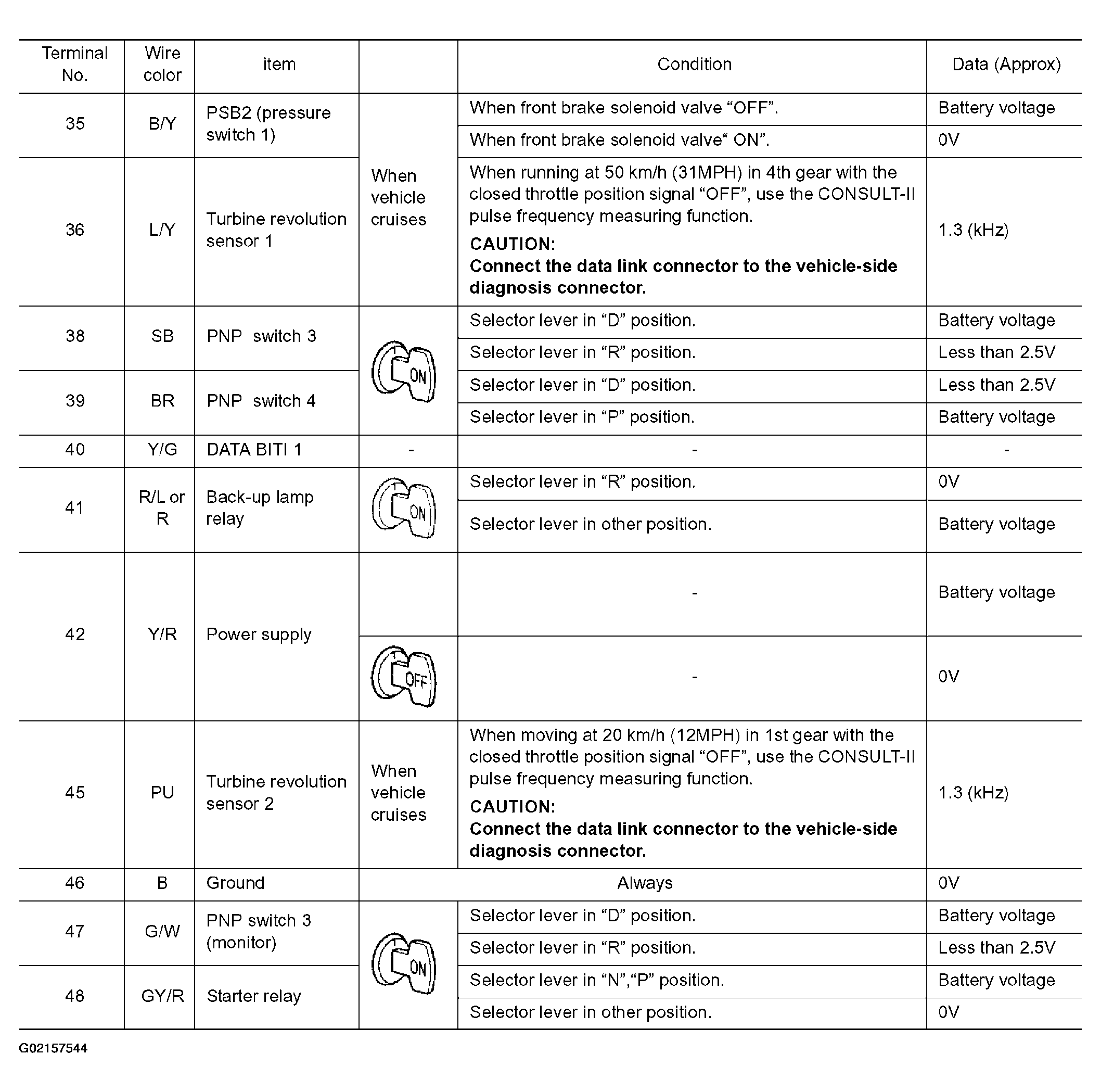

Fig 3: Identifying TCM Inspection Table (Terminals 35-48)

Courtesy of NISSAN MOTOR CO., U.S.A.
