Direct Clutch: Assembly
WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Install drive plates, driven plates and retaining plate in direct clutch drum.
Courtesy of NISSAN MOTOR CO., U.S.A.

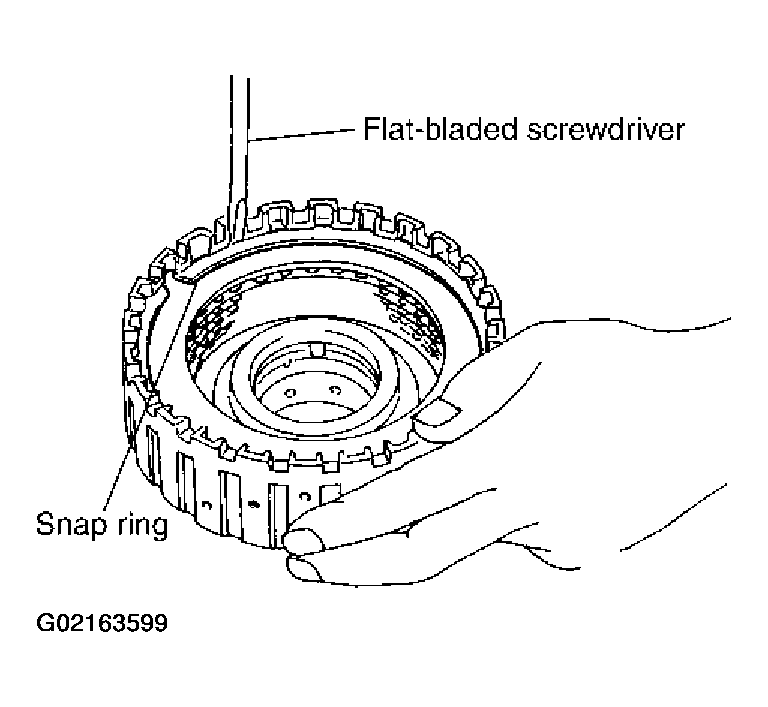

- Using a flat-bladed screwdriver, install snap ring in direct clutch drum.
