Parking Components: Installation

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After completing installation, check fluid leakage and fluid level. Refer to "CHANGING A/T FLUID ", "CHECKING A/T FLUID ".
    CAUTION:
    • Apply ATF to rear oil seal.
    • Do not reuse rear oil seal.

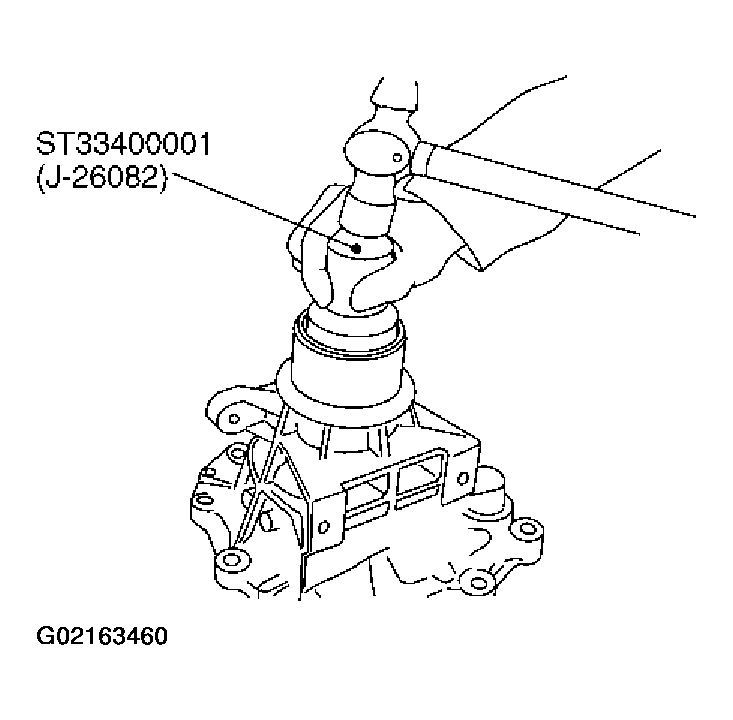

    Fig 1: Driving Rear Oil Seal Into Extension
    G02163460Courtesy of NISSAN MOTOR CO., U.S.A.
  1. As shown below, use a drift to drive rear oil seal into the extension until it is flush.
  2. Install return spring in parking pawl.

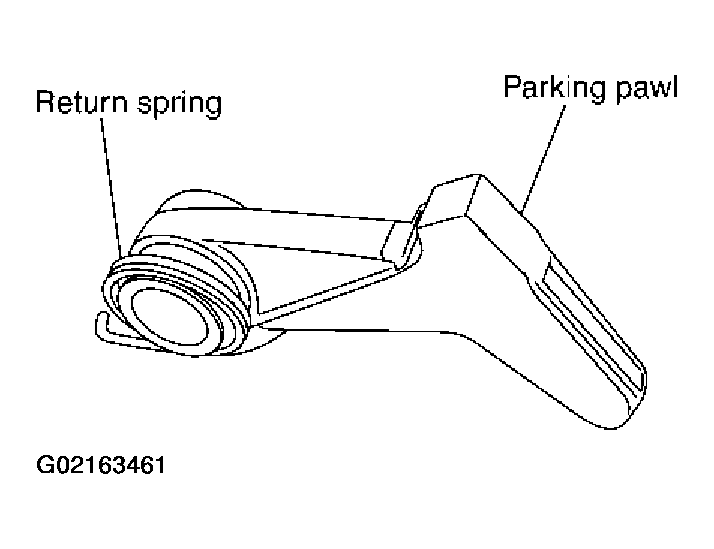

    Fig 2: Installing Return Spring In Parking Pawl
    G02163461Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install parking pawl and pawl shaft in rear extension.

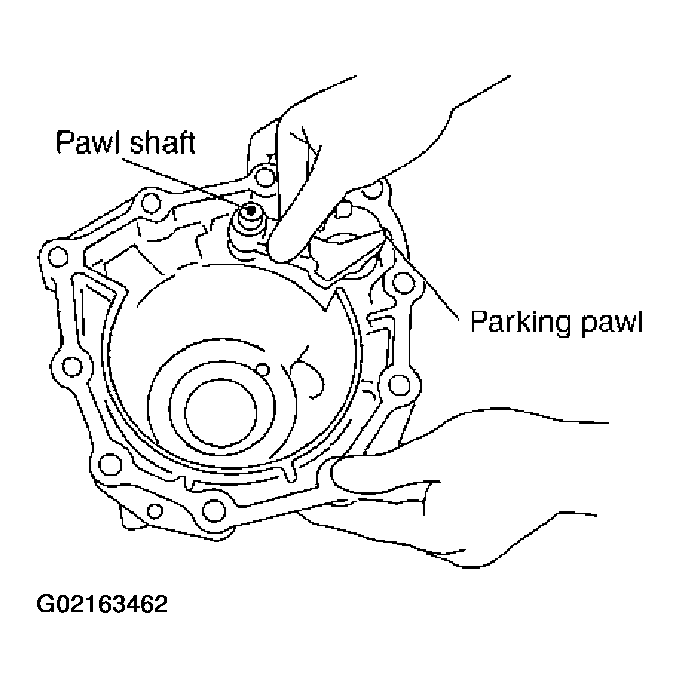

    Fig 3: Installing Parking Pawl And Pawl Shaft In Rear Extension
    G02163462Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install parking actuator support in rear extension.
    5. CAUTION: Apply petroleum to needle bearing.

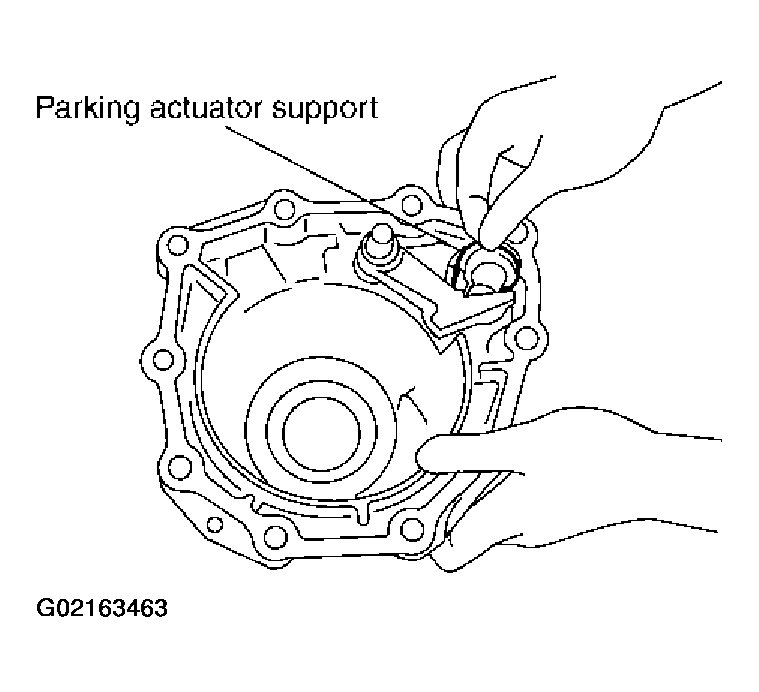

    Fig 4: Installing Parking Actuator Support In Rear Extension
    G02163463Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install needle bearing in rear extension.
    6. CAUTION:
    • Do not reuse seal rings.
    • Apply petroleum to seal rings.
  6. Install seal rings in out put shaft.
  7. Install parking gear in output shaft.

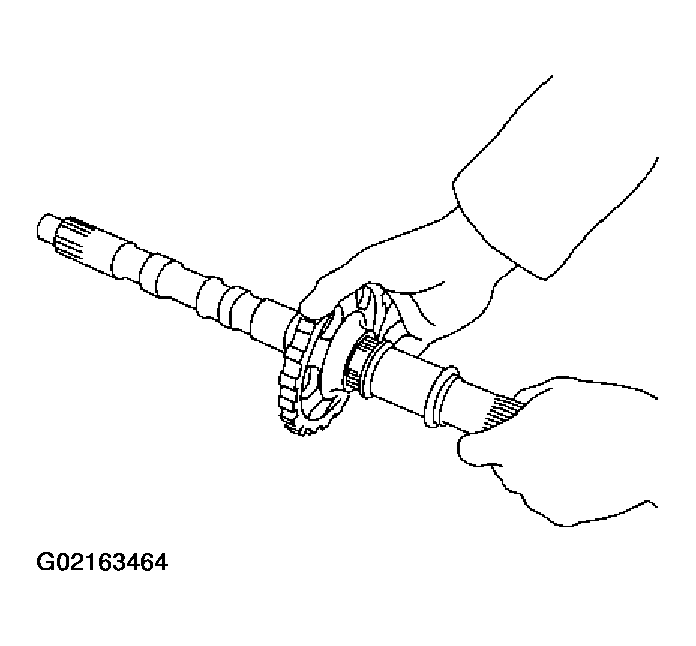

    Fig 5: Installing Parking Gear In Output Shaft
    G02163464Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install bearing race in output shaft.

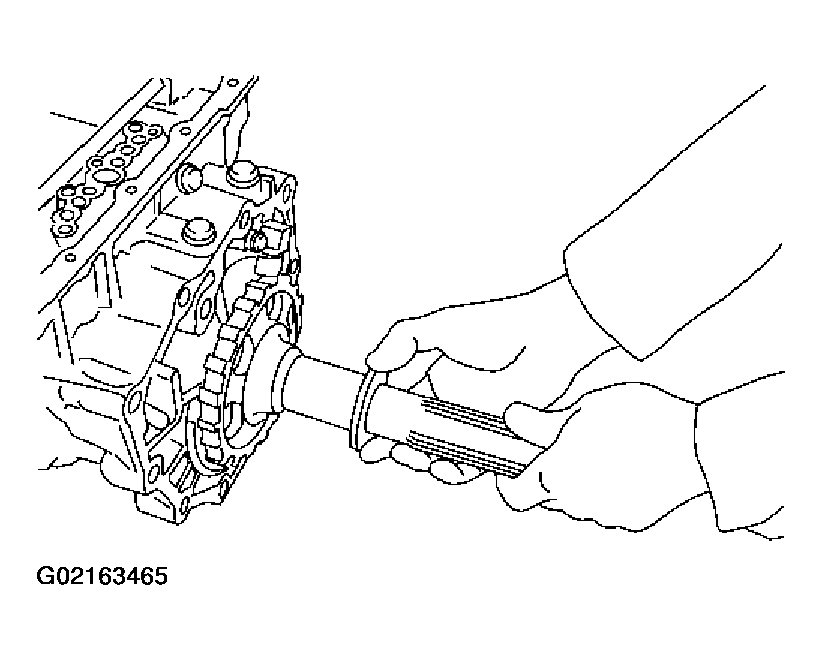

    Fig 6: Installing Bearing Race In Output Shaft
    G02163465Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install output shaft in transmission case.

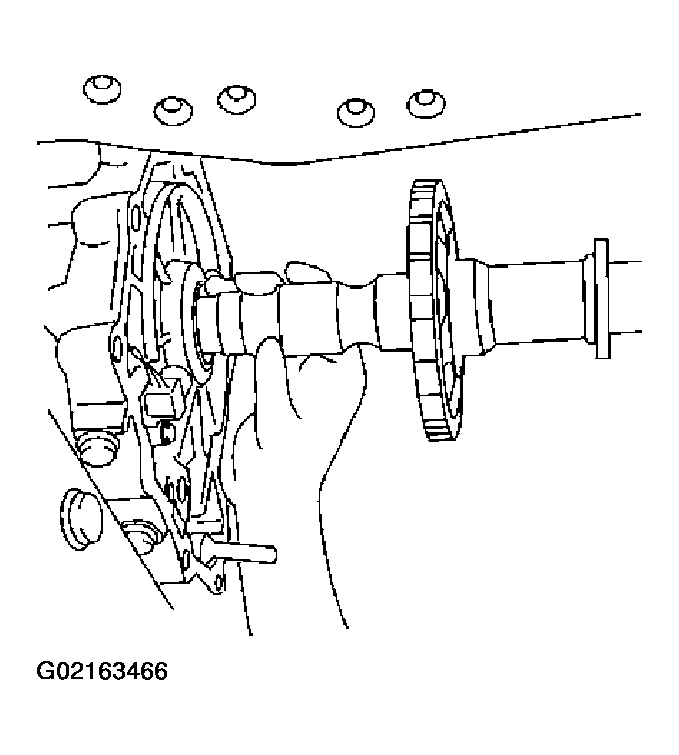

    Fig 7: Installing Output Shaft In Transmission Case
    G02163466Courtesy of NISSAN MOTOR CO., U.S.A.
    10. CAUTION: Complete remove all moisture, oil and old sealant, etc. From the transmission case and rear extension assembly.

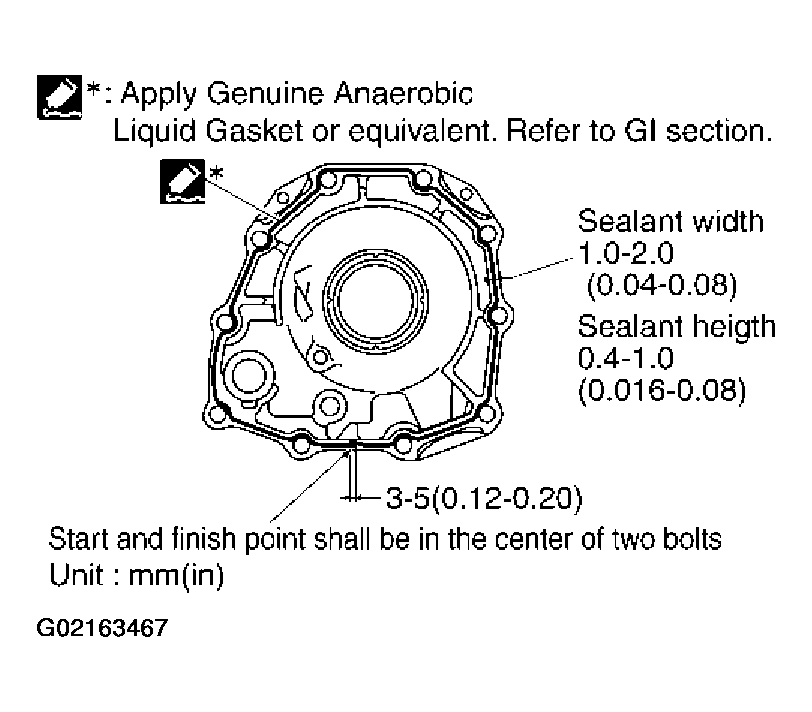

    Fig 8: Applying Recommended Sealant To Rear Extension Assembly
    G02163467Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent to rear extension assembly as shown in illustration.
  11. Install rear extension assembly in transmission case.

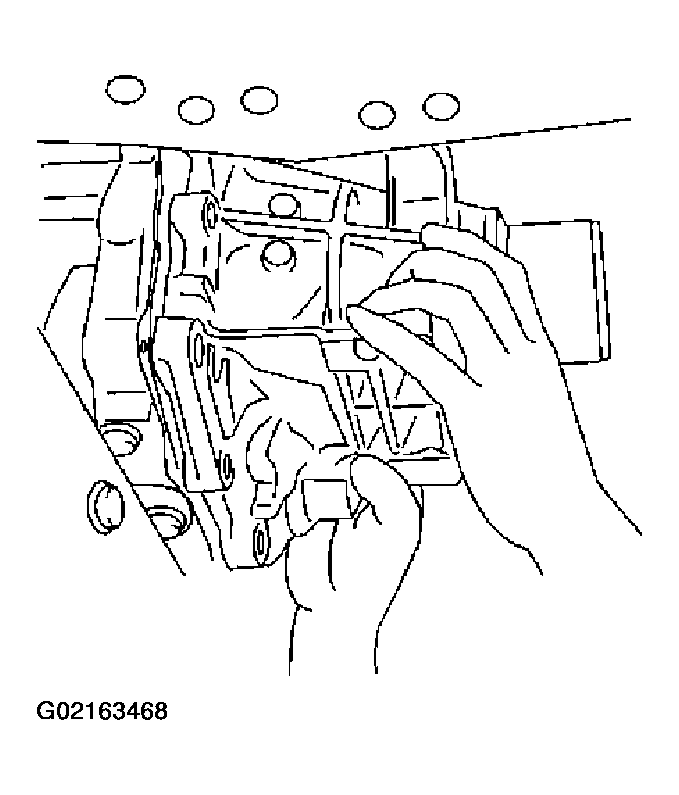

    Fig 9: Installing Rear Extension Assembly In Transmission Case
    G02163468Courtesy of NISSAN MOTOR CO., U.S.A.
    12. CAUTION: Do not reuse self-sealing bolt.

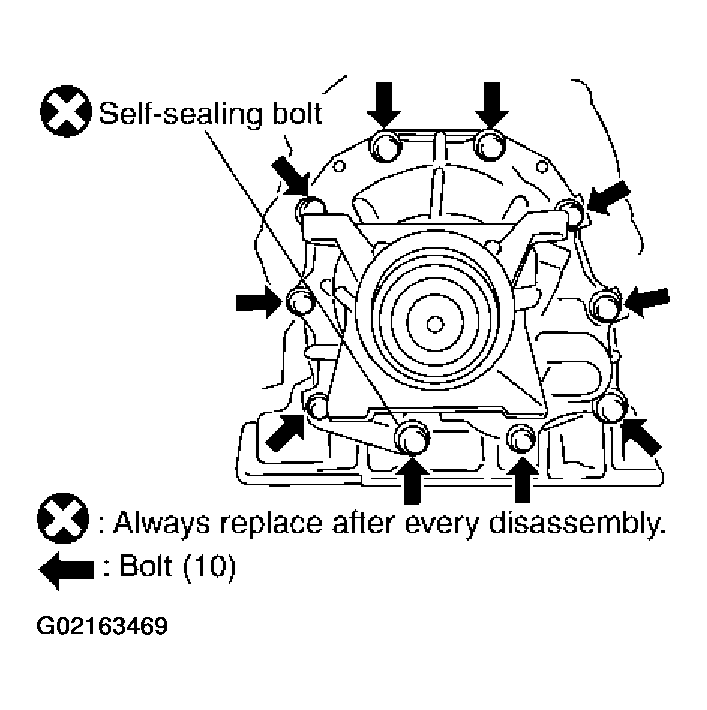

    Fig 10: Tightening Rear Extension Assembly
    G02163469Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Tighten rear extension assembly mounting bolts to specified torque. (Because terminal bracket is tightened together with rear extension assembly before step 11).
    1. Rear extension mounting bolt: 52 N.m (5.3 Kg-m, 38 ft-lb)
    2. Self-sealing bolt: 61 N.m (6.2 Kg-m, 45 ft-lb)
  13. Install engine rear member. Refer to "REMOVAL AND INSTALLATION ".
  14. Install propeller shaft. Refer to, "PROPELLER SHAFT " article.
  15. Install exhaust tube. Refer to EXHAUST SYSTEM article.
    16. CAUTION: Do not reuse drain plug gasket.
  16. Install drain plug in oil pan.
    1. 34 N.m (3.5 Kg-m, 25 ft-lb)
  17. Pour ATF into transmission assembly.
