Assembly (2)

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
  1. Install O-ring in oil pump assembly.
    2. CAUTION: Apply petroleum jelly to bearing race.
  2. Install bearing race in oil pump assembly.
    3. CAUTION: Apply ATF to oil pump bush.

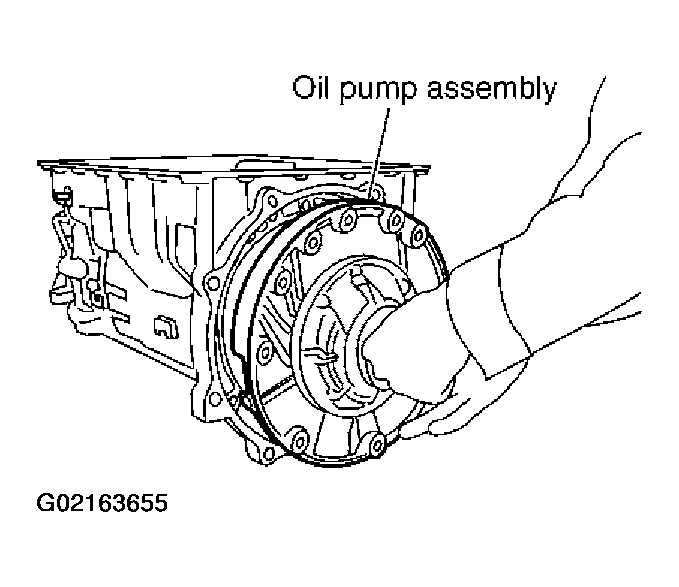

    Fig 1: Installing Oil Pump Assembly In Transmission Case
    G02163655Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install oil pump assembly in transmission case.
    4. CAUTION: Complete remove all moisture, oil and old sealant, etc. From the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.

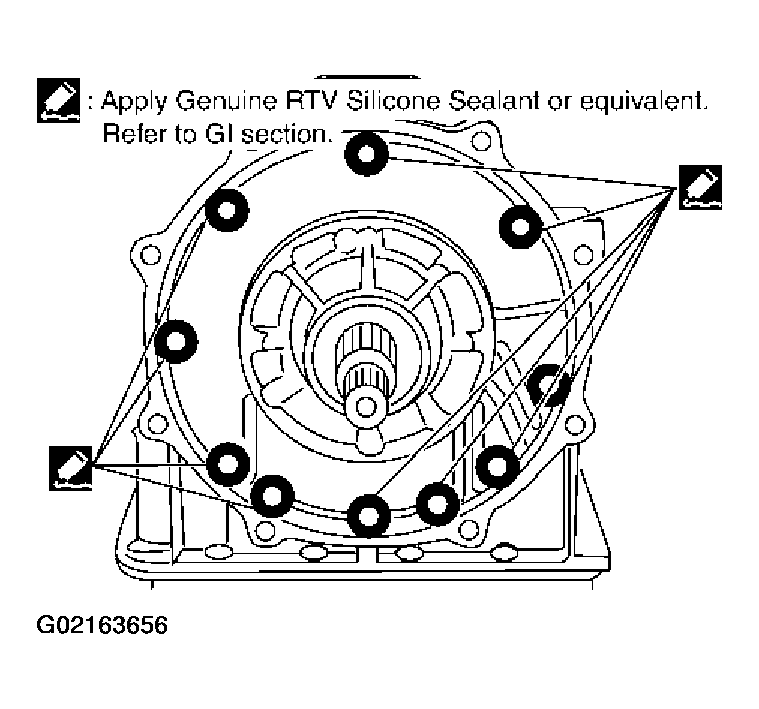

    Fig 2: Applying Sealant To Oil Pump Assembly
    G02163656Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine RTV silicone sealant or equivalent to oil pump assembly as shown in illustration.
    5. CAUTION: Apply ATF to oil pump bushing.

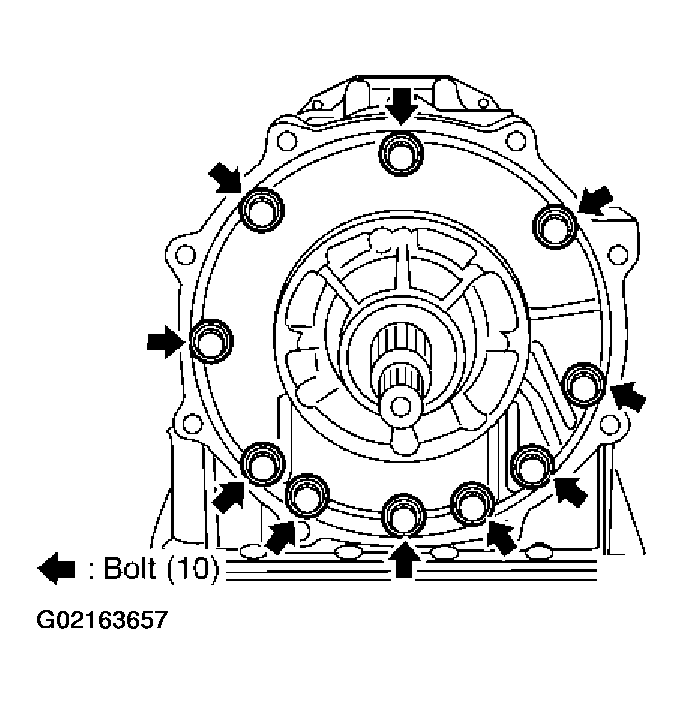

    Fig 3: Tightening Oil Pump Mounting Bolts
    G02163657Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Tighten oil pump mounting bolts to specified torque.
    6. CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

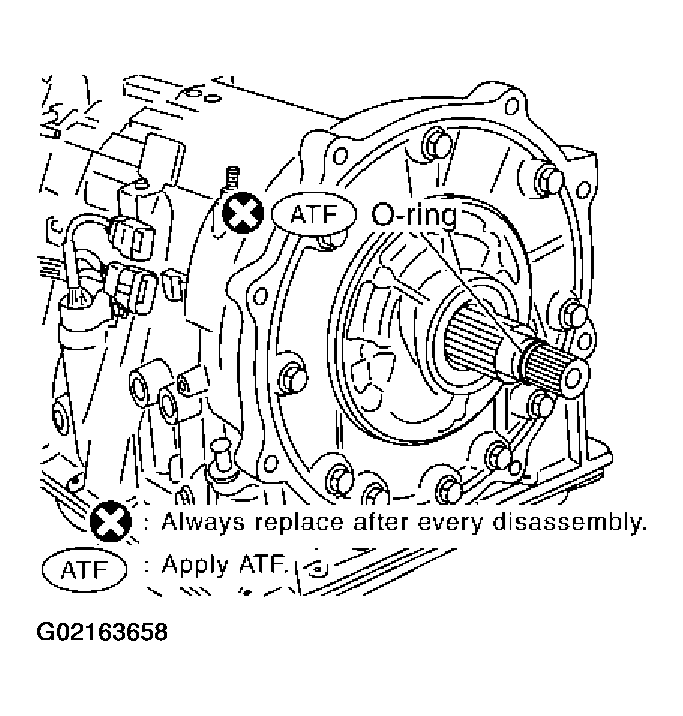

    Fig 4: Installing O-Ring In Input Clutch Assembly
    G02163658Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install O-ring in input clutch assembly.
    7. CAUTION: Do not reuse self-sealing bolt.

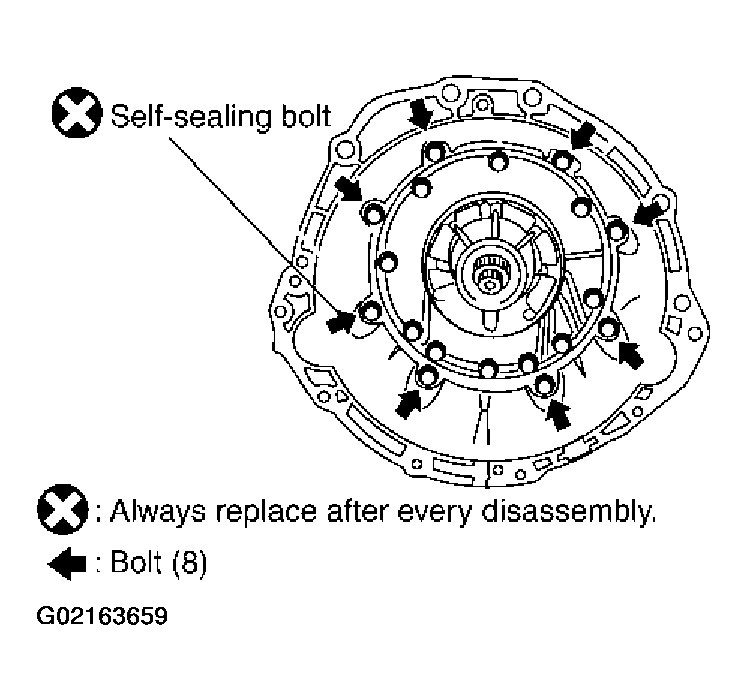

    Fig 5: Installing Converter Housing In Transmission Case
    G02163659Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install converter housing in transmission case.
    1. Converter housing mounting bolt: 52 N.m (5.3 kg-m, 38 ft-lb)
    2. Self-sealing bolt: 61 N.m (6.2 kg-m, 45 ft-lb)
  8. Make sure that brake band does not close turbine revolution sensor hole.

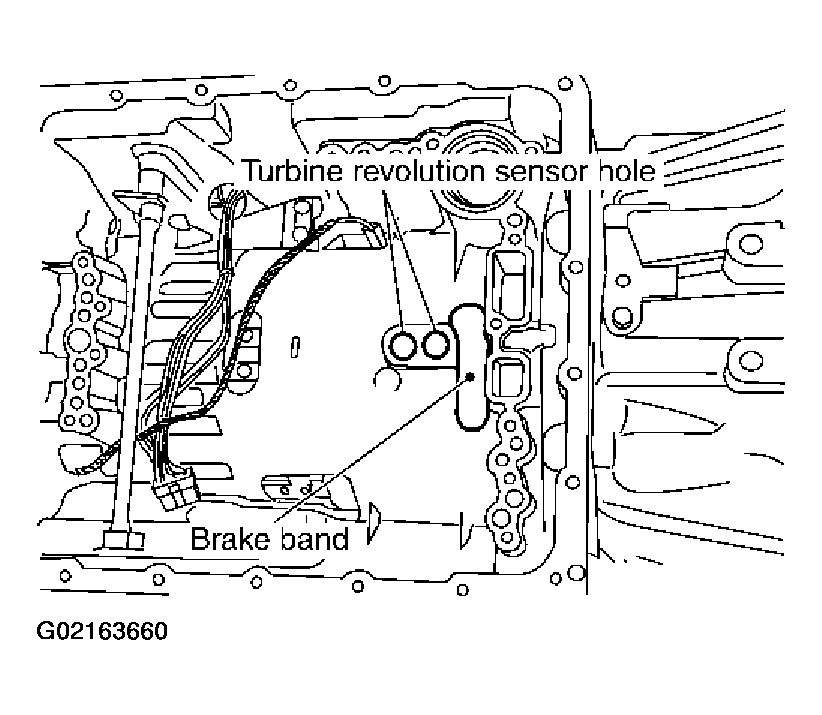

    Fig 6: Locating Turbine Revolution Sensor Hole
    G02163660Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install A/T fluid temperature sensor 2 in bracket.

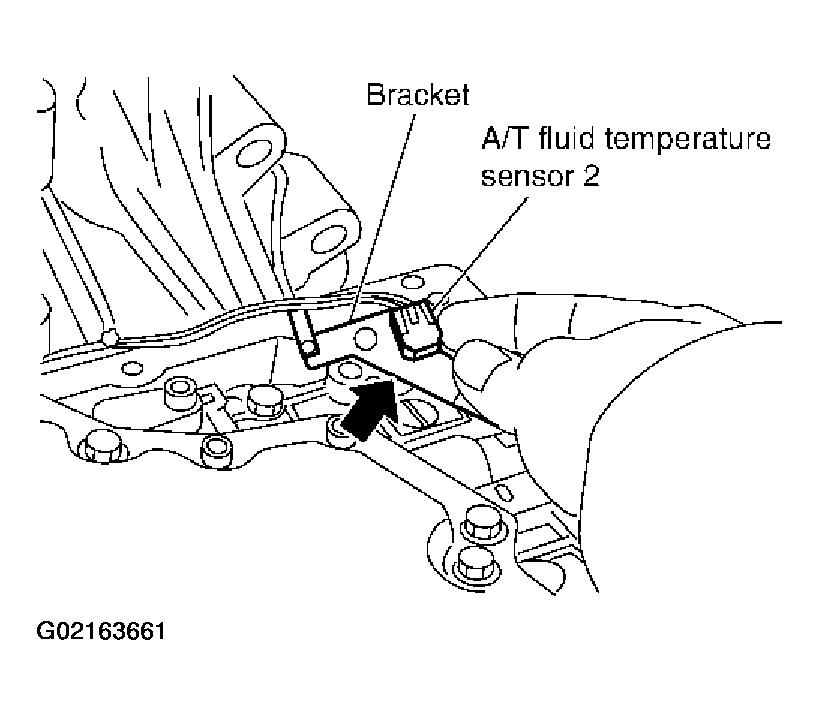

    Fig 7: Installing A/T Fluid Temperature Sensor 2 In Bracket
    G02163661Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install A/T fluid temperature sensor 2 (with bracket) in control valve assembly.

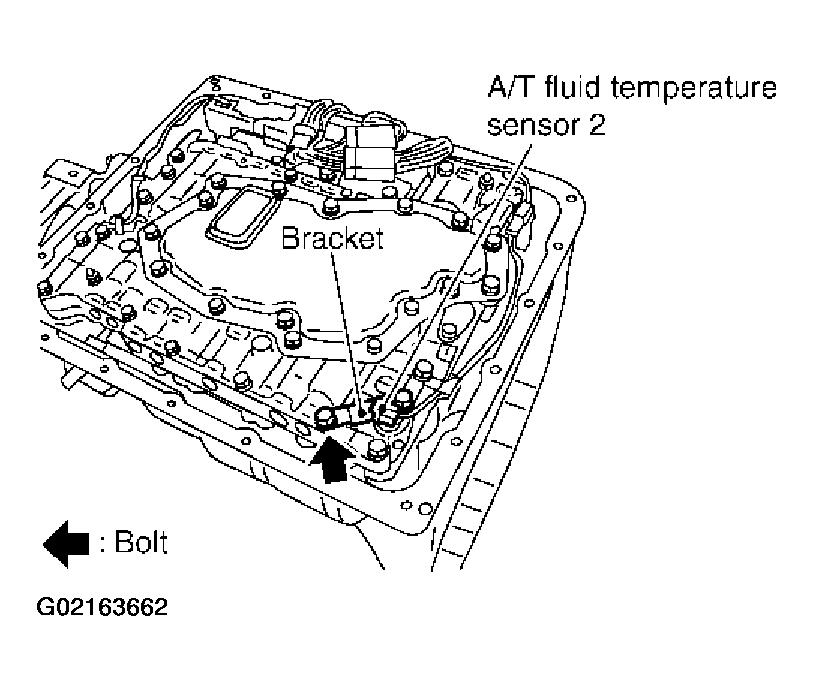

    Fig 8: Installing A/T Fluid Temperature Sensor 2 (With Bracket) In Control Valve Assembly
    G02163662Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install control valve assembly.
    1. Install control valve assembly in transmission case.

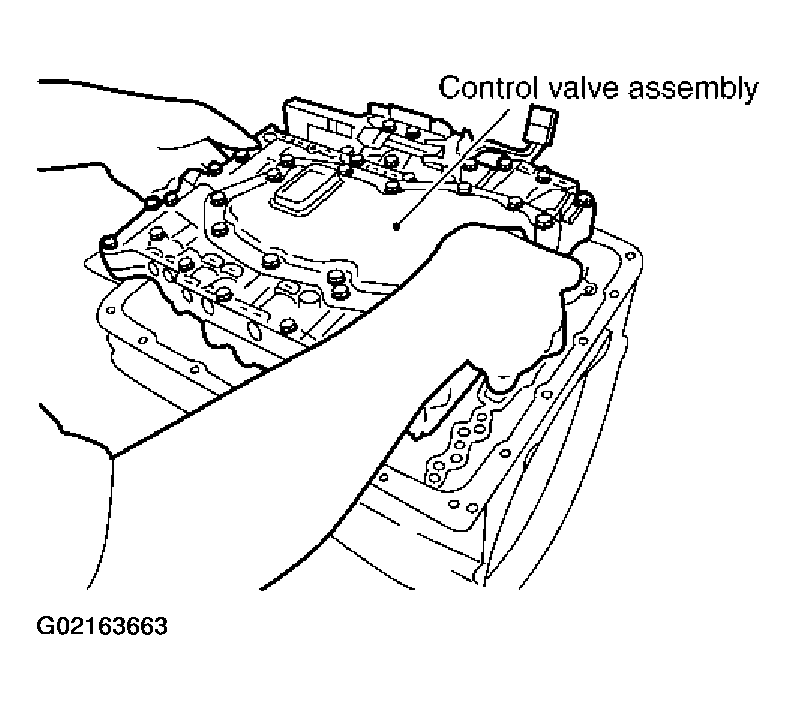

      Fig 9: Installing Control Valve Assembly In Transmission Case
      G02163663Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION:
      • Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb installation of control valve assembly.
      • Make sure that turbine sensor securely installs turbine sensor hole.
      • Assemble it so that manual valve cutout is engaged with manual plate projection.

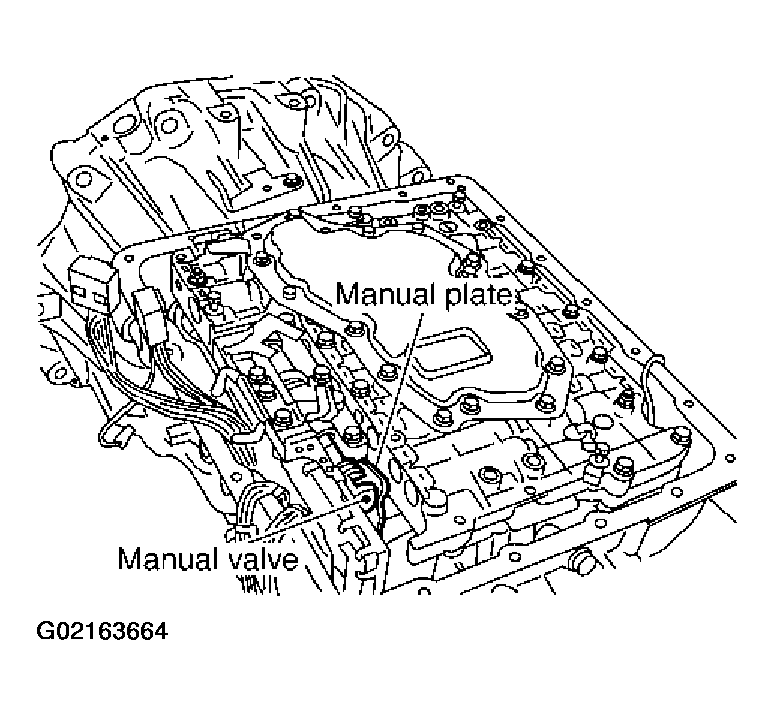

      Fig 10: Locating Manual Plate And Manual Valve
      G02163664Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install bolts A, B and C in control valve assembly.

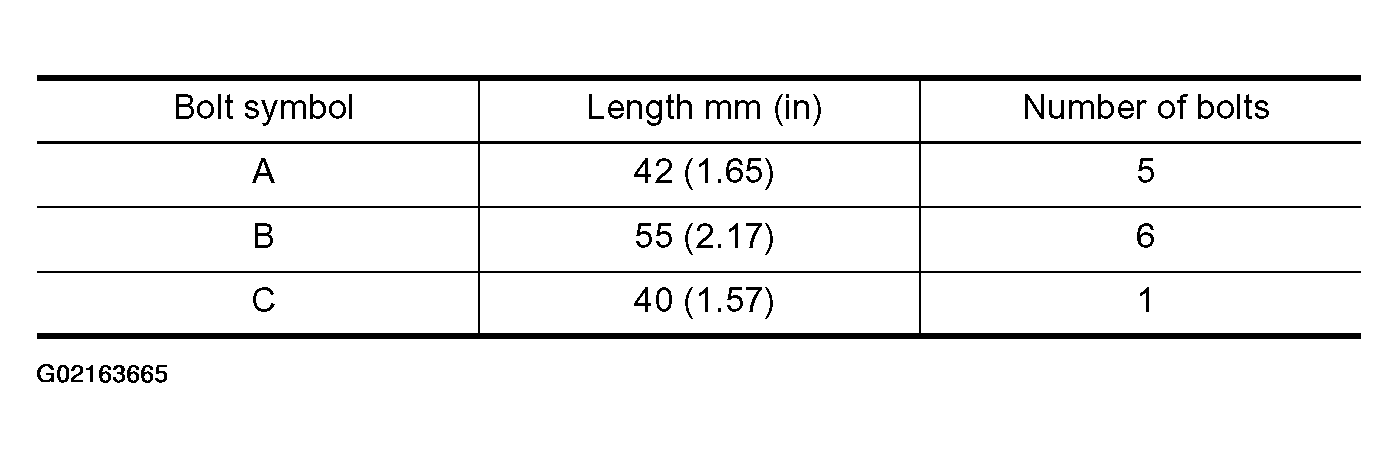

      Fig 11: Identifying Control Valve Assembly Bolts Technical Data
      G02163665Courtesy of NISSAN MOTOR CO., U.S.A.

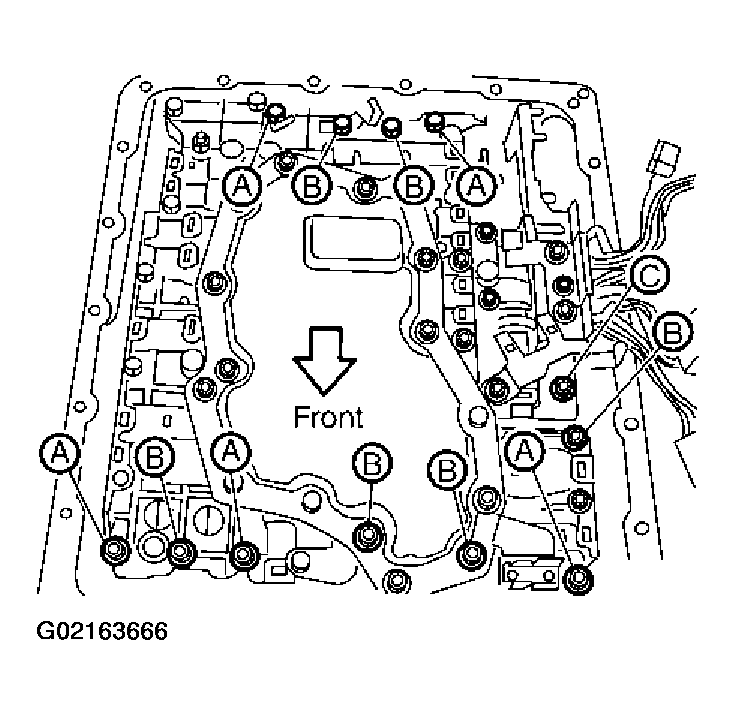

      Fig 12: Installing Control Valve Assembly Bolts
      G02163666Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.
      1. 7.9 N.m (0.81 kg-m, 70 in-lb)

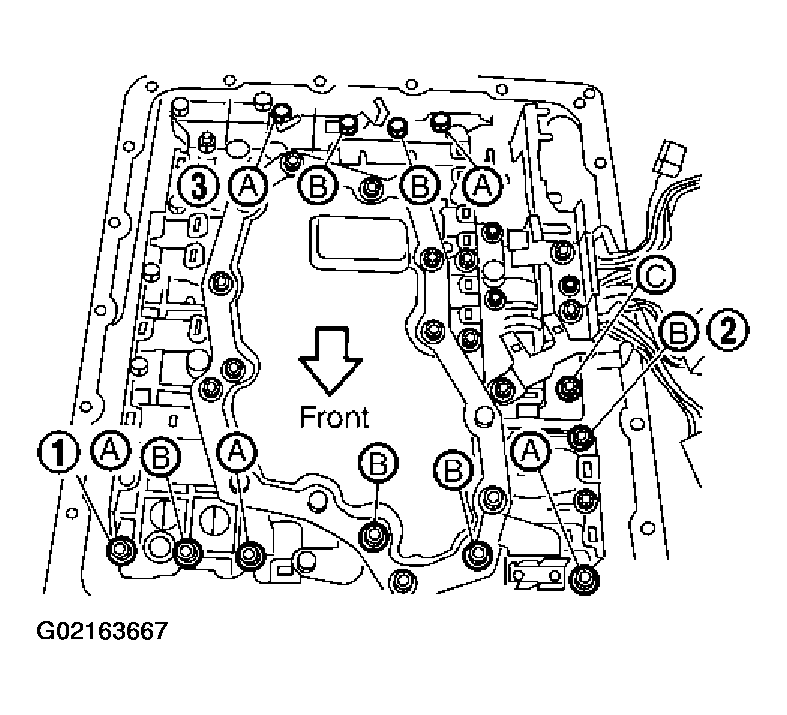

      Fig 13: Tightening Control Valve Assembly Bolts
      G02163667Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install terminal cord assembly connectors in bracket.

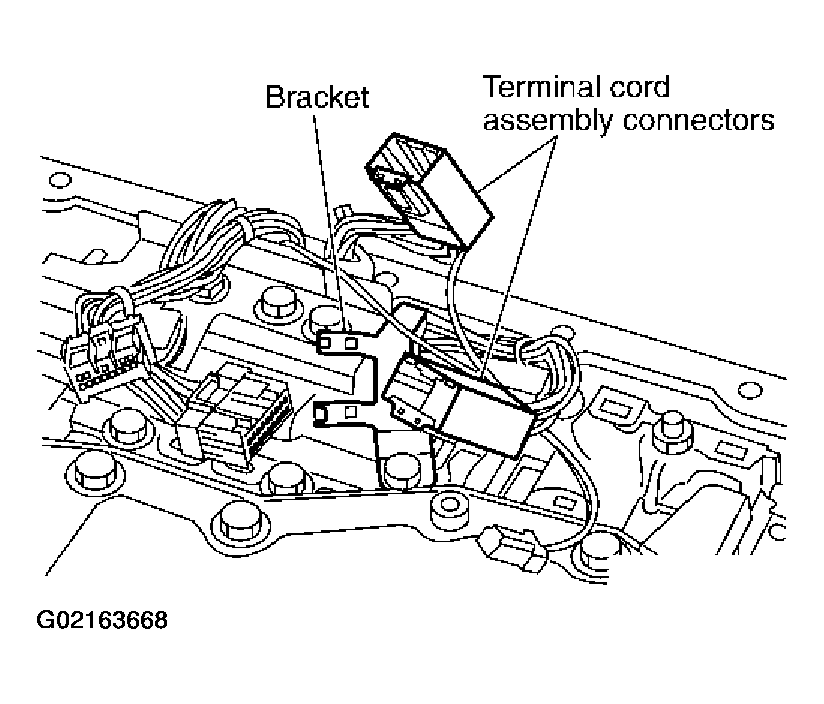

    Fig 14: Installing Terminal Cord Assembly Connectors In Bracket
    G02163668Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Connect terminal cord assembly connectors.

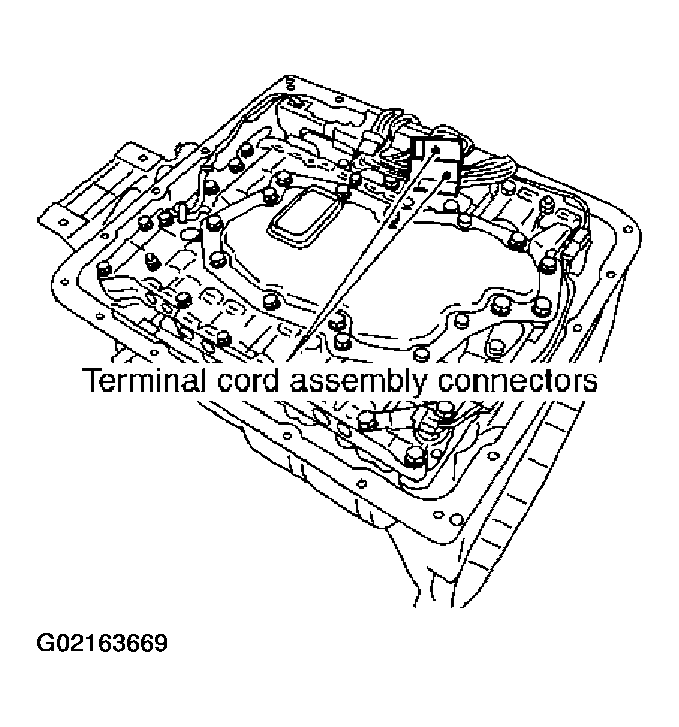

    Fig 15: Connecting Terminal Cord Assembly Connectors
    G02163669Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Connect A/T fluid temperature sensor 2 connector.

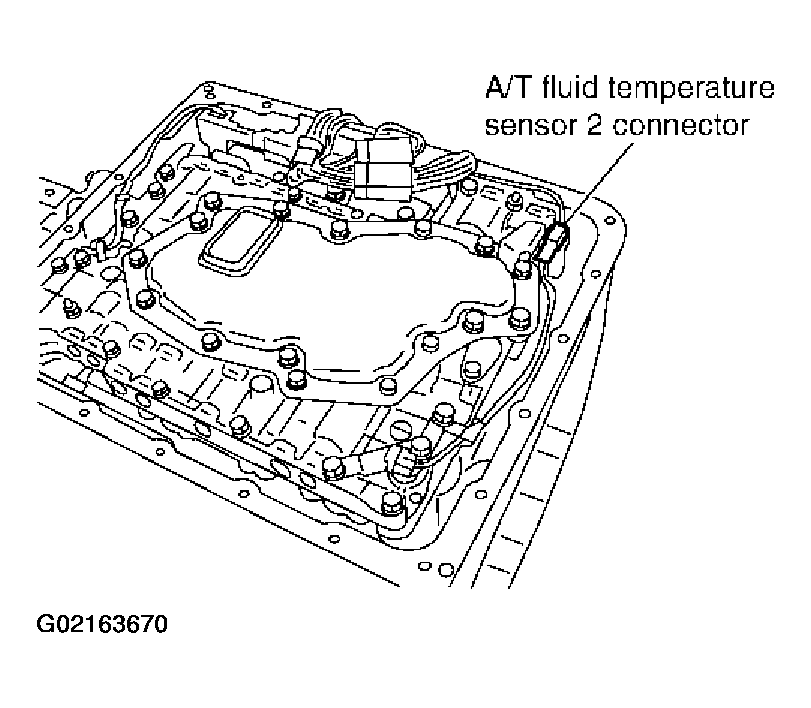

    Fig 16: Connecting A/T Fluid Temperature Sensor 2 Connector
    G02163670Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Connect revolution sensor connector.

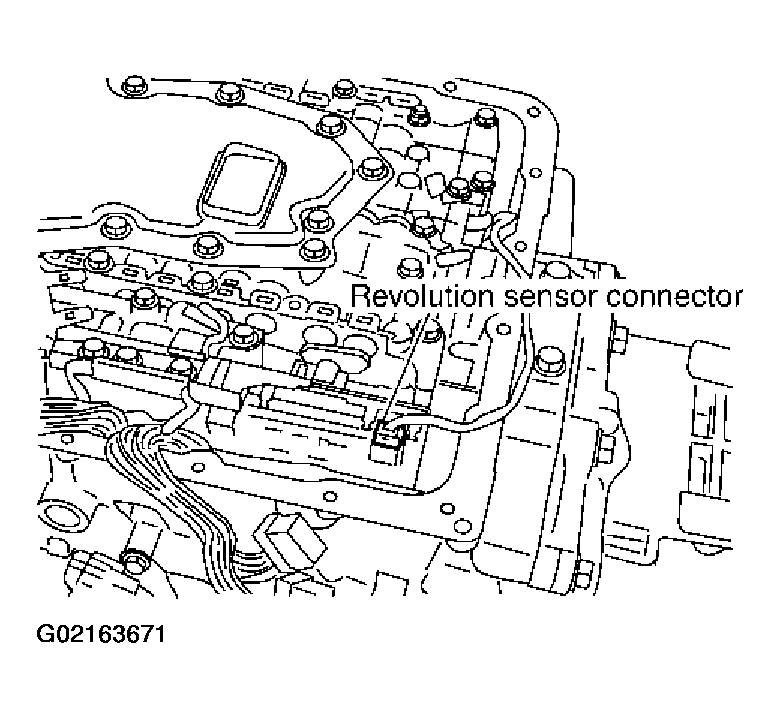

    Fig 17: Connecting Revolution Sensor Connector
    G02163671Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Securely fasten terminal harness with terminal clips.

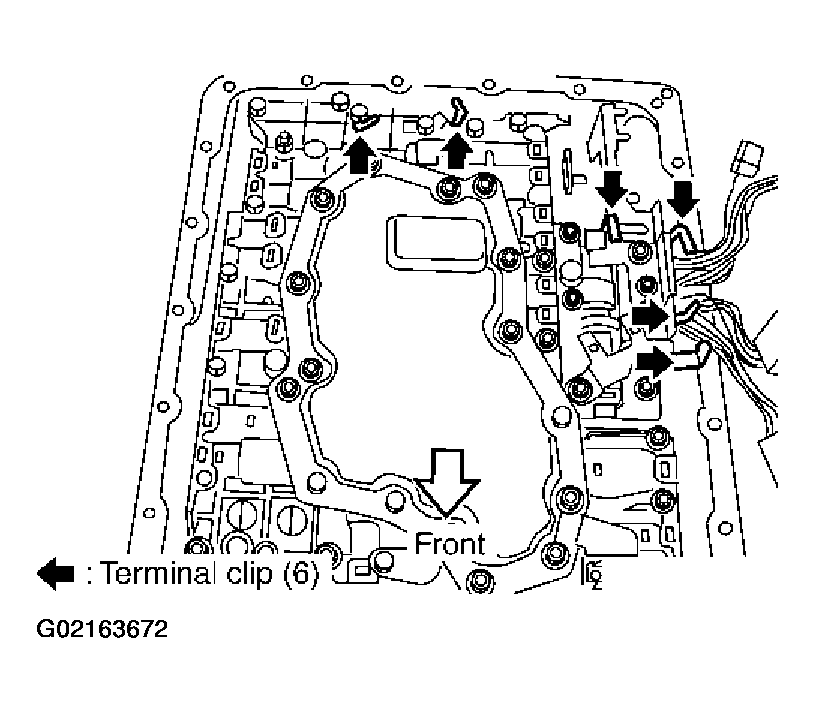

    Fig 18: Fastening Terminal Harness With Terminal Clips
    G02163672Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install oil pan in transmission case.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
    1. Install oil pan gasket in oil pan.
      2. CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.

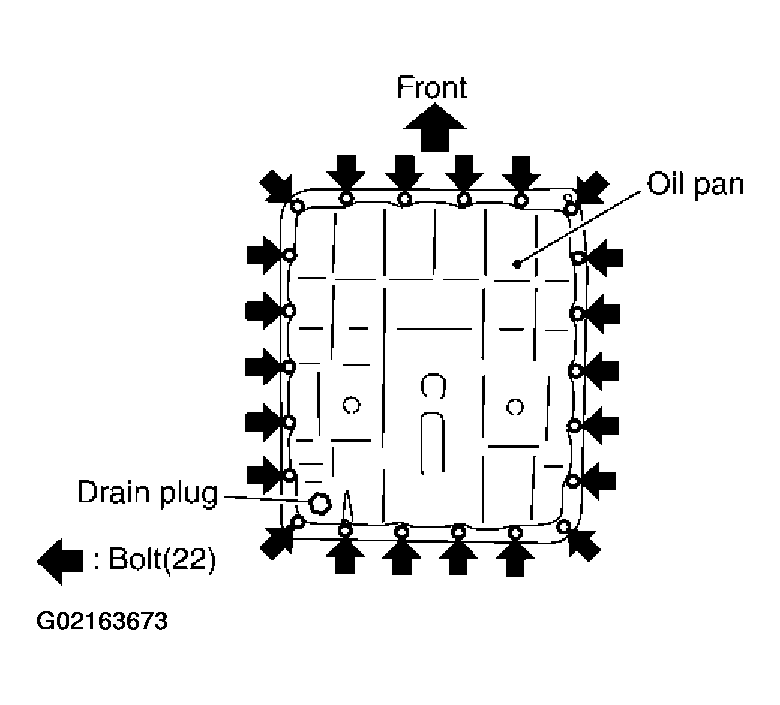

      Fig 19: Installing Oil Pan
      G02163673Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install oil pan (with oil pan gasket) in transmission case.
      3. CAUTION: Do not reuse oil pan mounting bolts.

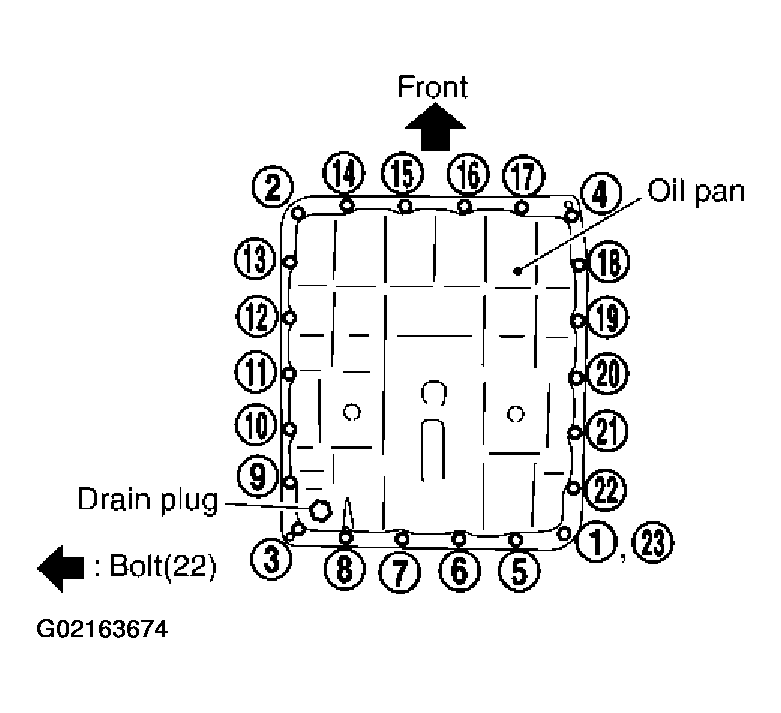

      Fig 20: Tightening Sequence Of Oil Pan Mounting Bolts
      G02163674Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
    18. CAUTION: Do not reuse drain plug gasket.
  18. Install drain plug in oil pan.
  19. Install torque converter.
    1. Pour ATF into torque converter.
      • Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of fluid is required for a new torque converter.
      • When reusing old torque converter, add the same amount of fluid as was drained.

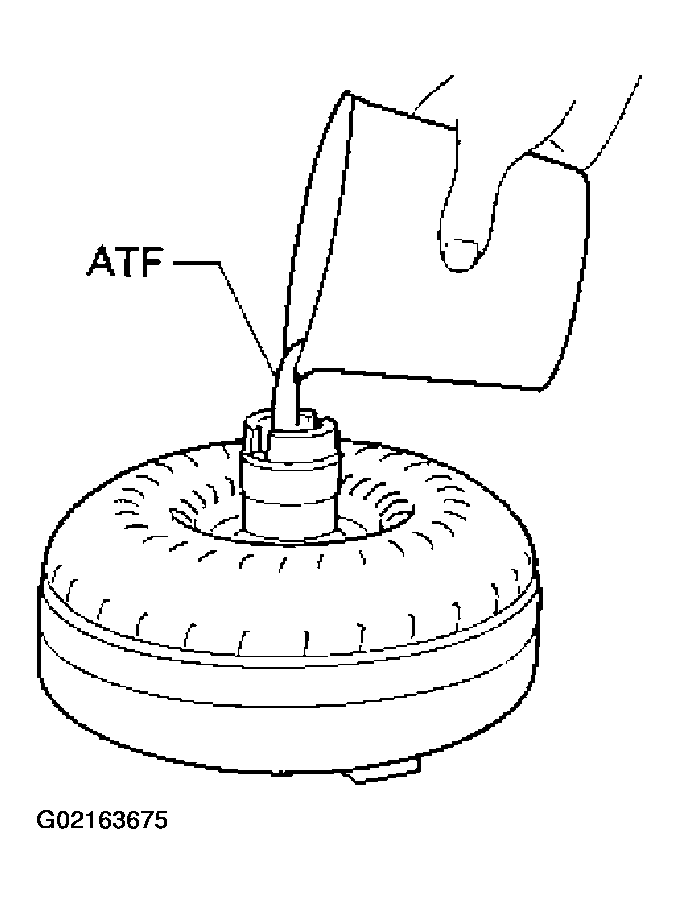

      Fig 21: Filling ATF Into Torque Converter
      G02163675Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install torque converter while aligning notches of torque converter with notches of oil pump.

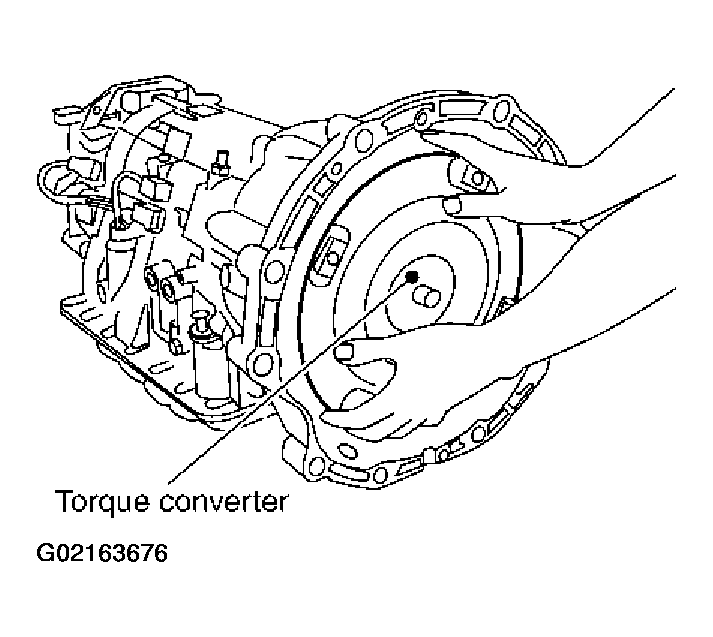

      Fig 22: Installing Torque Converter
      G02163676Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Measure distance "A" to check that torque converter is in proper position.
      1. Distance "A": 25.0 mm (0.98 in) or more

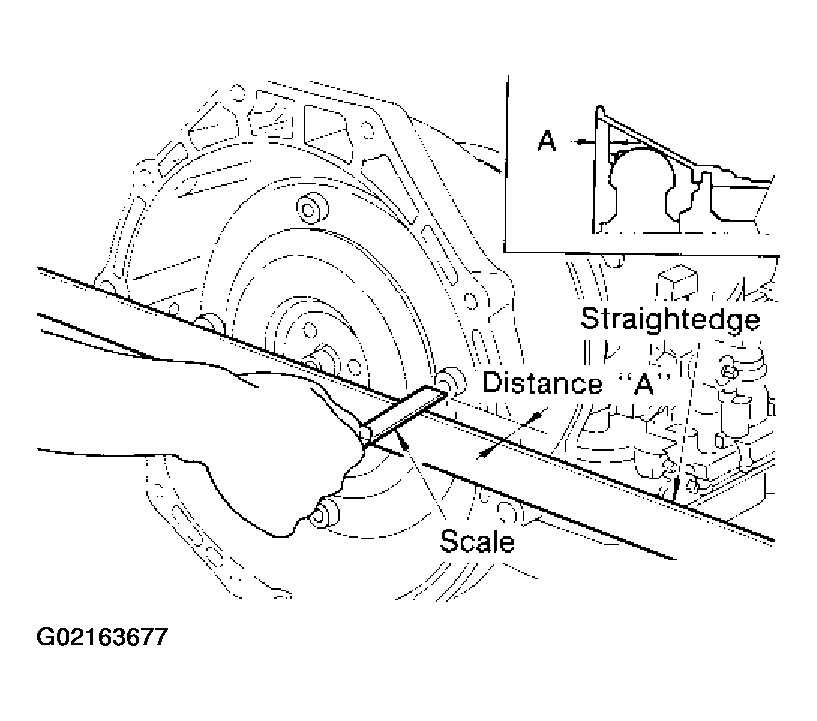

    Fig 23: Measuring Distance Between Torque Converter And Housing
    G02163677Courtesy of NISSAN MOTOR CO., U.S.A.
