Back-up Control (Engine brake)

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

When the select operation is executed during driving and the transmission is shifted down, the line pressure is set according to the vehicle speed.

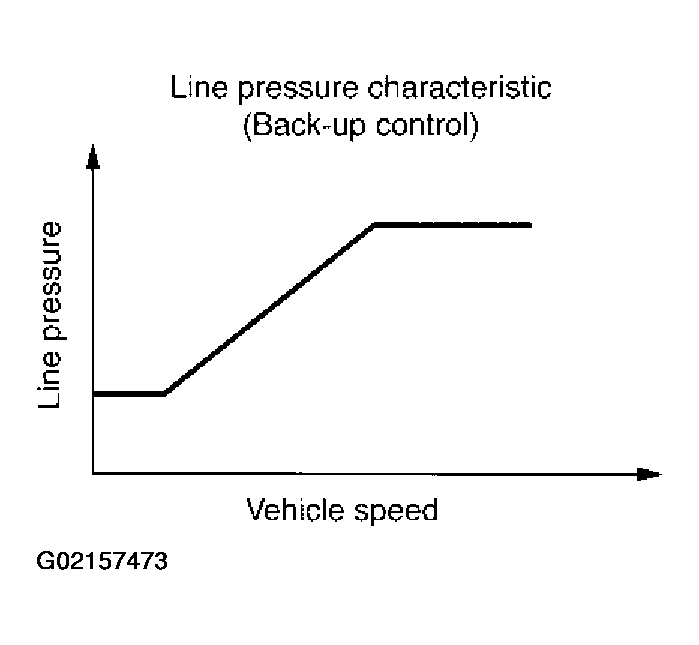

Fig 1: Identifying Line Pressure Characteristics Graph (Back-Up Control)
G02157473Courtesy of NISSAN MOTOR CO., U.S.A.
