Removal and Installation of Control Lever Assembly: Notes

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

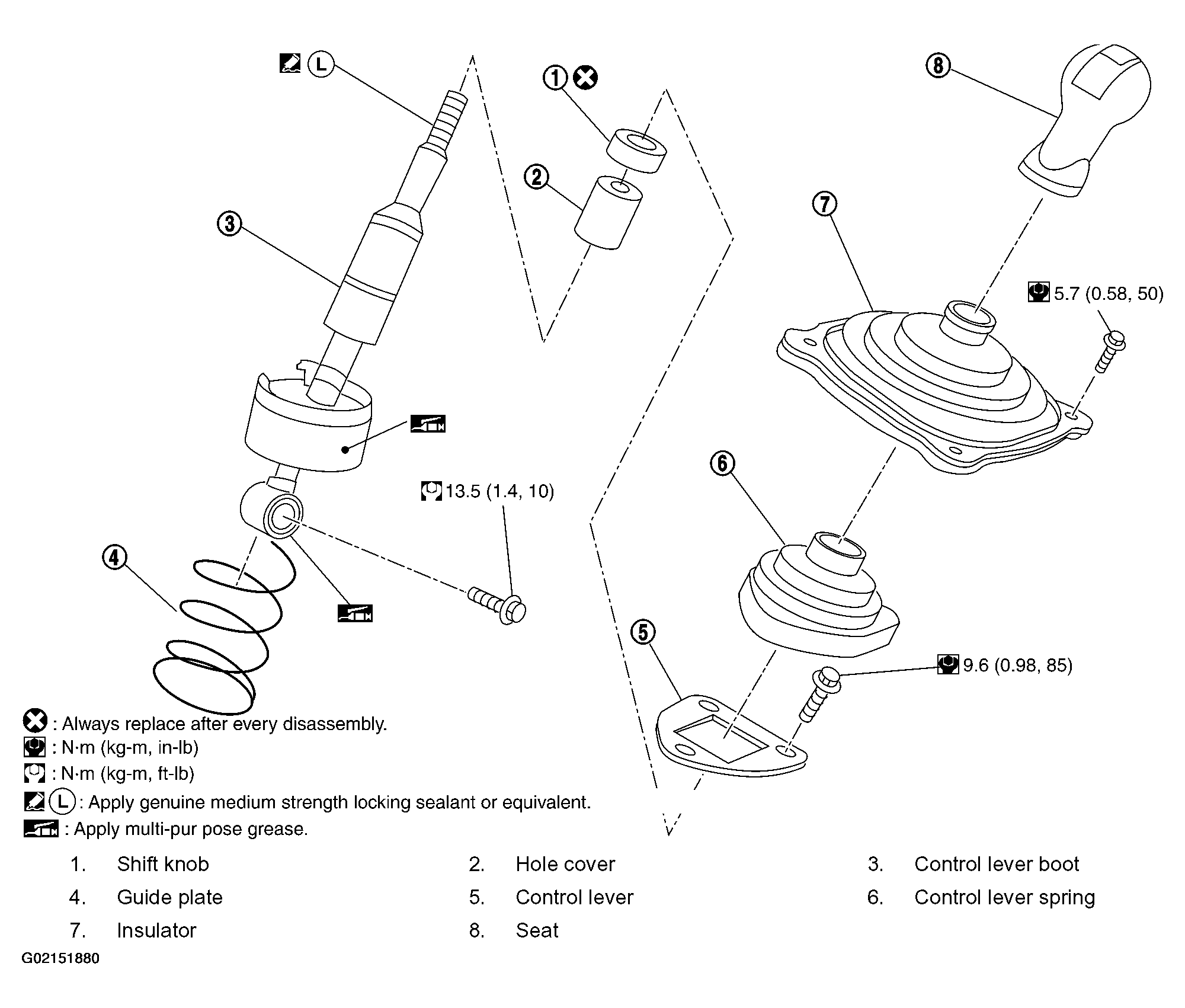

Fig 1: Removing And Installing Control Lever Assembly
G02151880Courtesy of NISSAN MOTOR CO., U.S.A.
