Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch "OFF".

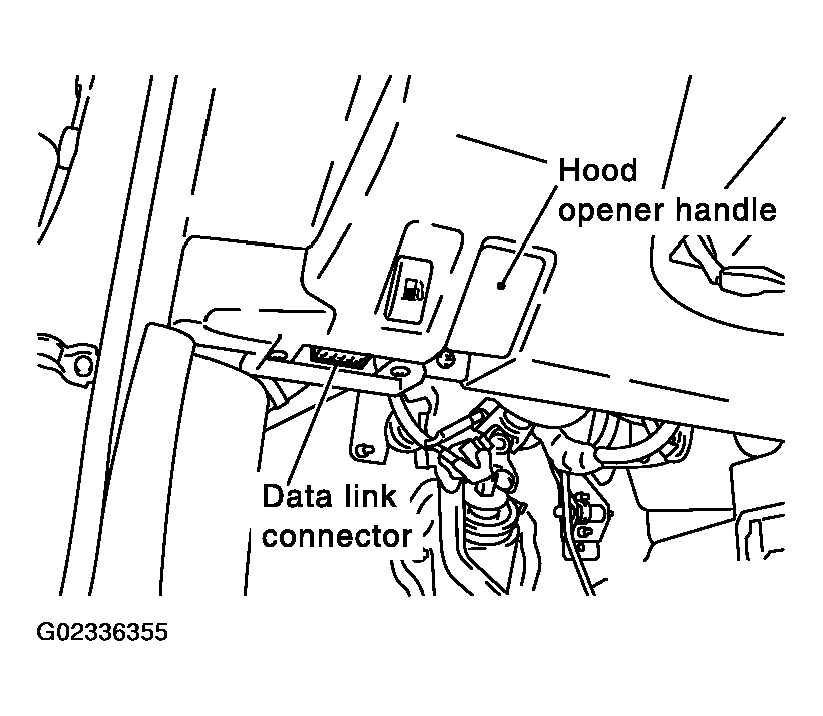

Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

Fig 1: Locating Data Link Connector & Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".

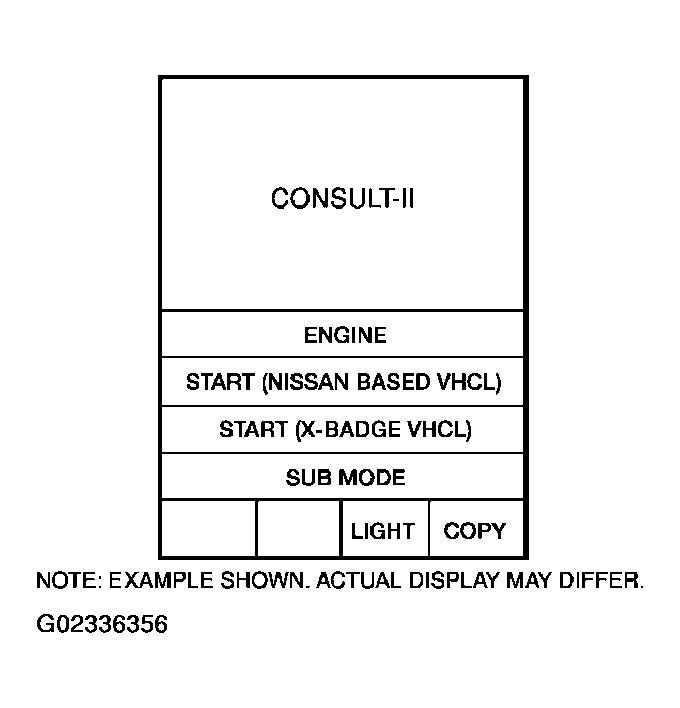

Touch "START (NISSAN BASED VHCL)".

Fig 2: "START (NISSAN BASED VHCL)" Display
Courtesy of NISSAN MOTOR CO., U.S.A.

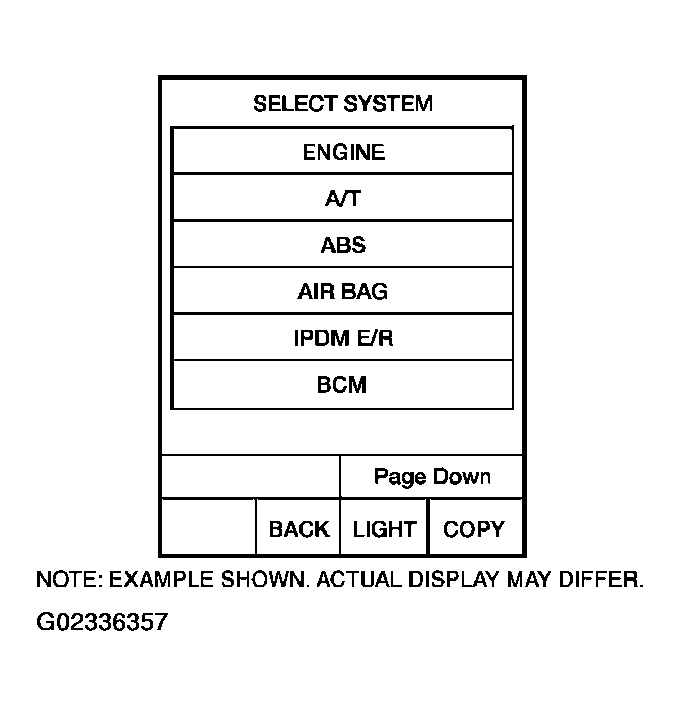

Touch "BCM".
If "BCM" is not indicated, refer to CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS .

Fig 3: "BCM" Display
Courtesy of NISSAN MOTOR CO., U.S.A.

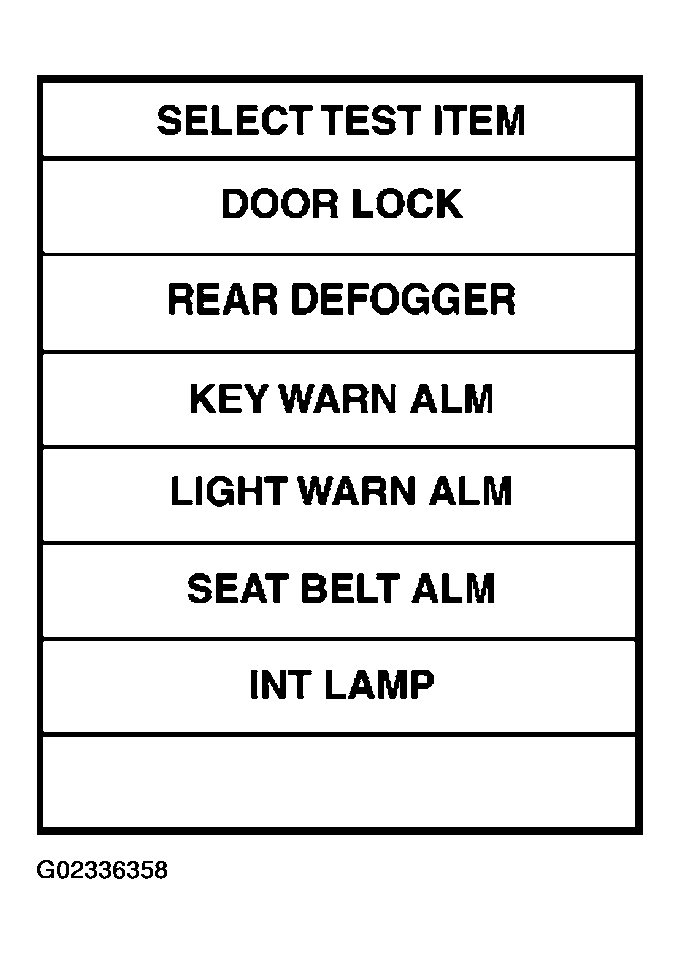

Touch "REAR DEFOGGER".

Fig 4: "REAR DEFOGGER" Display
Courtesy of NISSAN MOTOR CO., U.S.A.

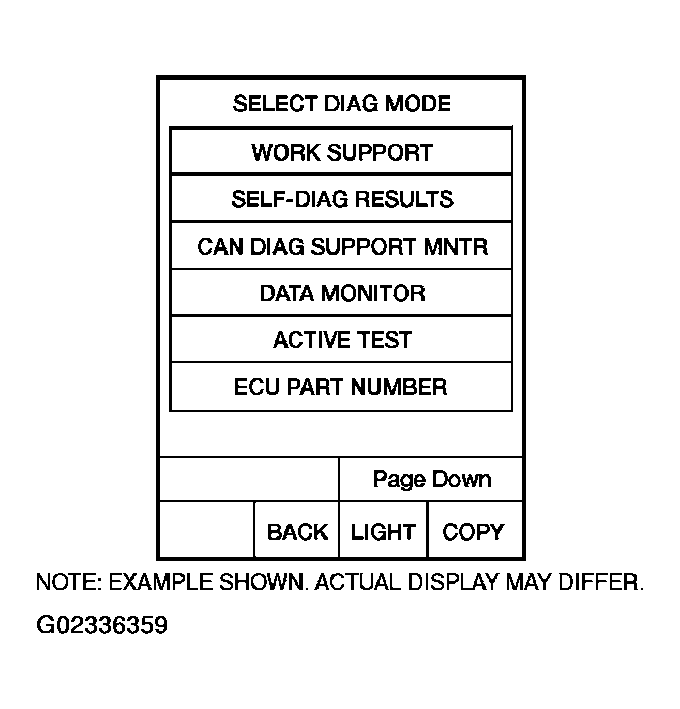

Select diagnosis mode, "DATA MONITOR" and "ACTIVE TEST" are available.

Fig 5: Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.
