M/T Model

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to (Y) CENTER CONSOLE
  2. Disconnect harness connector.
  3. Remove installation bolts. Remove yaw rate/side G sensor.
    CAUTION:
    • Do not drop or strike yaw rate/side G sensor, because it has little endurance to impact.
    • Do not use power tool etc., because yaw rate/side G sensor is sensitive for the impact.

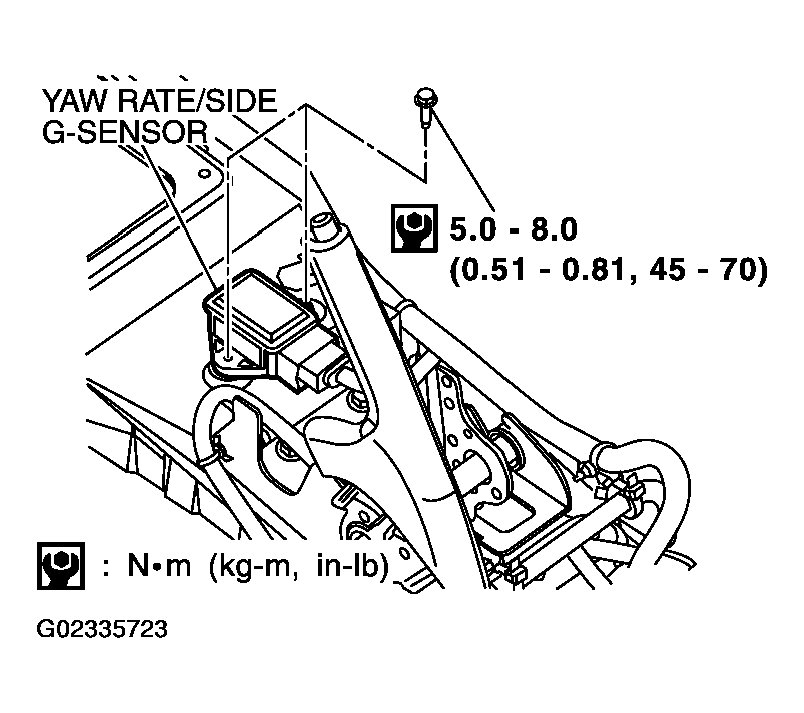

    Fig 1: Removing/Installing G-Sensor (M/T Model) - With Torque Specifications
    G02335723Courtesy of NISSAN MOTOR CO., U.S.A.
