Control Device Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect lower lever of control device and control rod.
  2. Remove knob cover below selector lever downward.
  3. Pull lock pin out of selector lever knob.
  4. Remove selector lever knob.
  5. Remove console finisher. Refer to REMOVAL AND INSTALLATION .
  6. Remove center console. Refer to REMOVAL AND INSTALLATION .

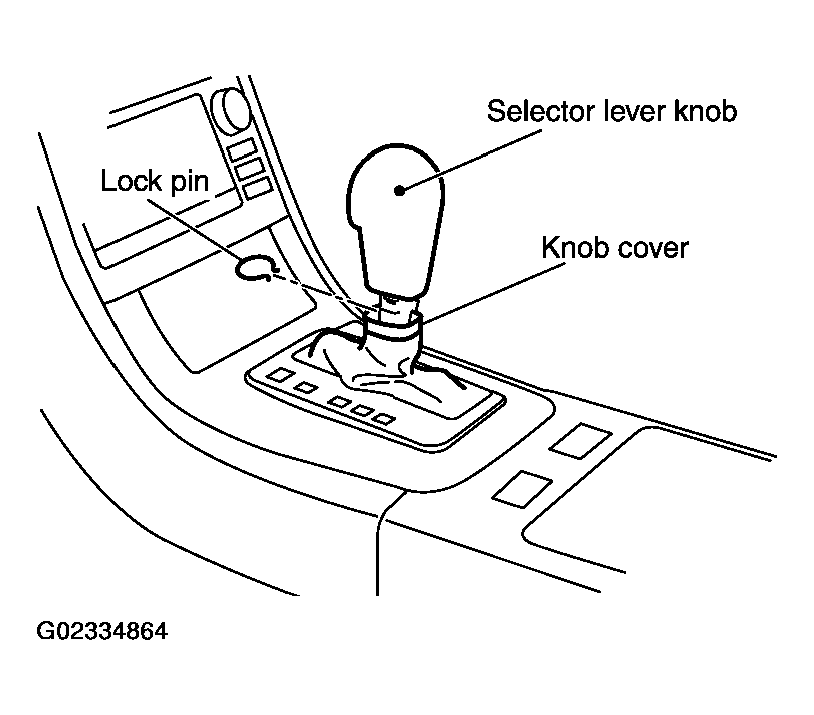

    Fig 1: Removing Knob Cover Below Selector Lever
    G02334864Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove key interlock cable from control device. Refer to REMOVAL AND INSTALLATION .
  8. Disconnect A/T device harness connector.

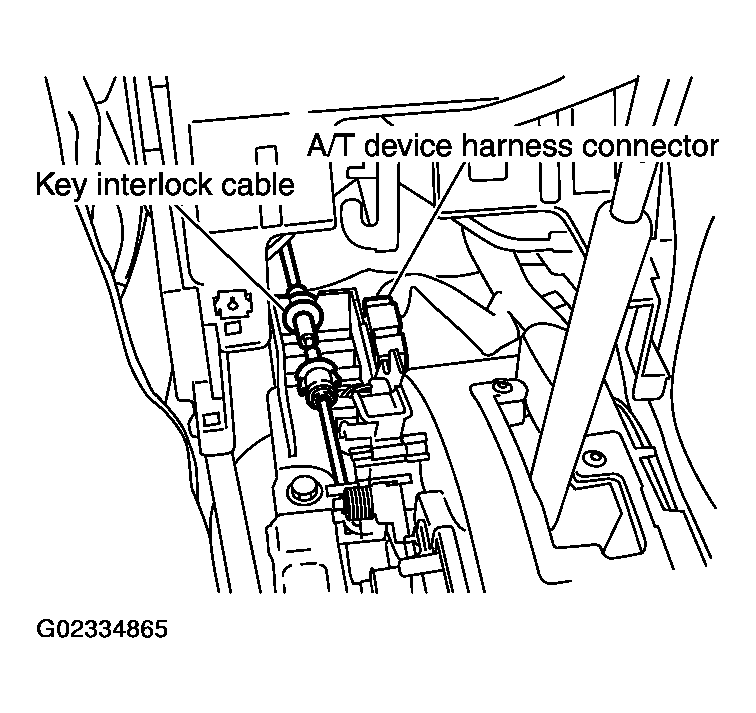

    Fig 2: Removing Key Interlock Cable From Control Device
    G02334865Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove control device assembly.

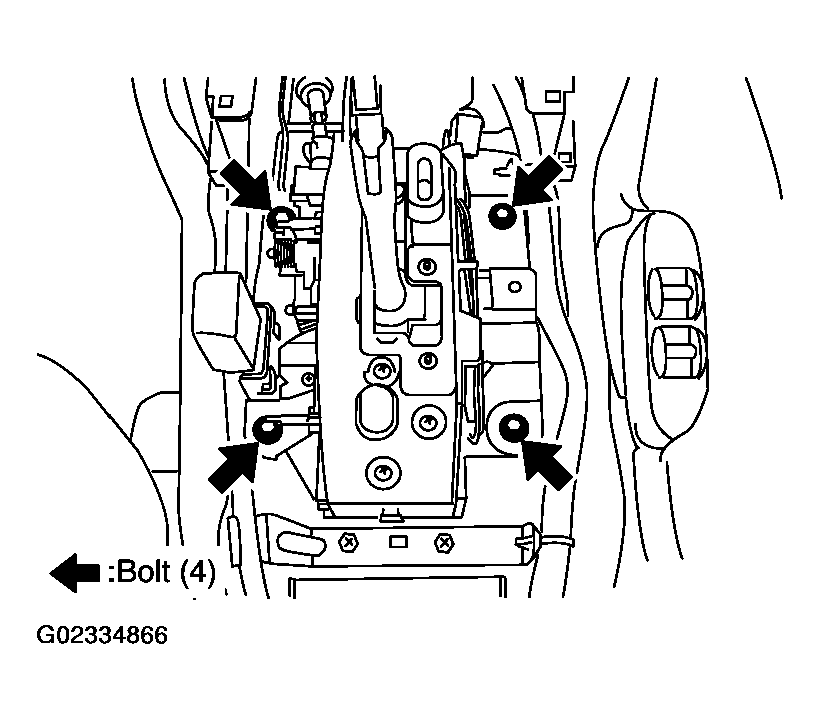

    Fig 3: Locating Control Device Assembly Bolts
    G02334866Courtesy of NISSAN MOTOR CO., U.S.A.
