Section 603 (Automatic Transmission - Coupe): Overhaul: Components

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

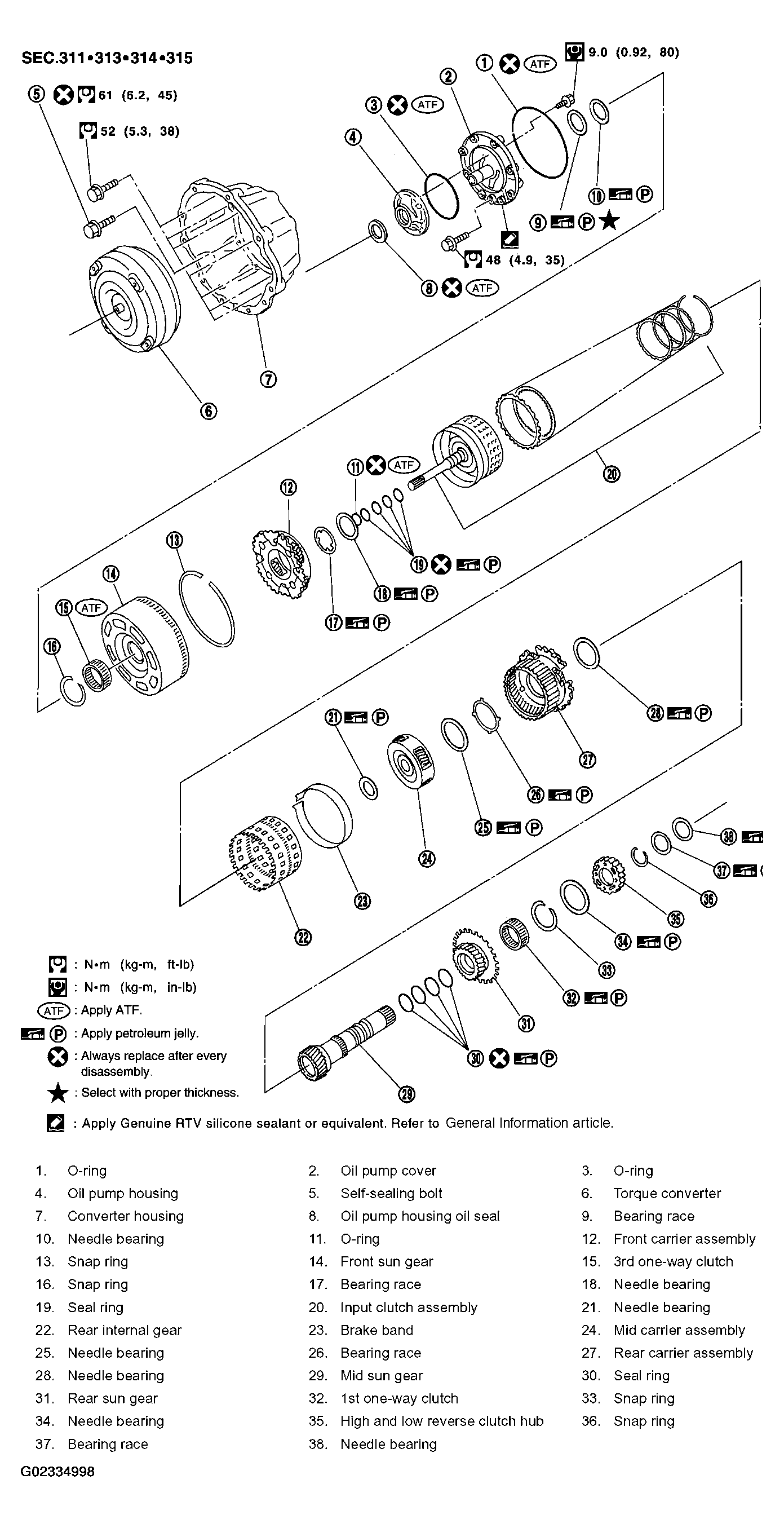

Fig 1: Disassembling/Assembling A/T Assembly With Torque Specifications
G02334998Courtesy of NISSAN MOTOR CO., U.S.A.

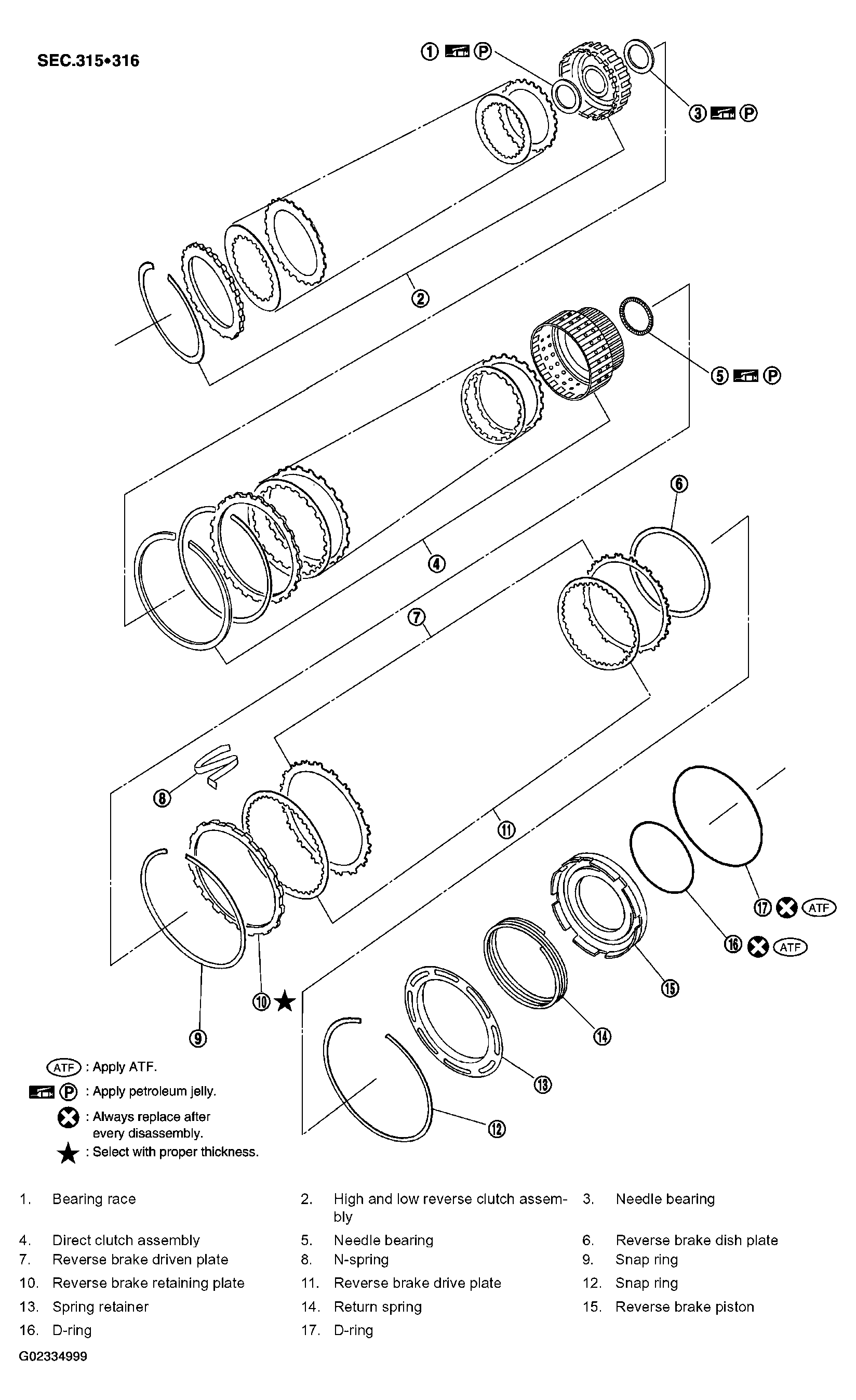

Fig 2: Disassembling/Assembling Direct Clutch & High & Low Reverse Clutch Assembly
G02334999Courtesy of NISSAN MOTOR CO., U.S.A.

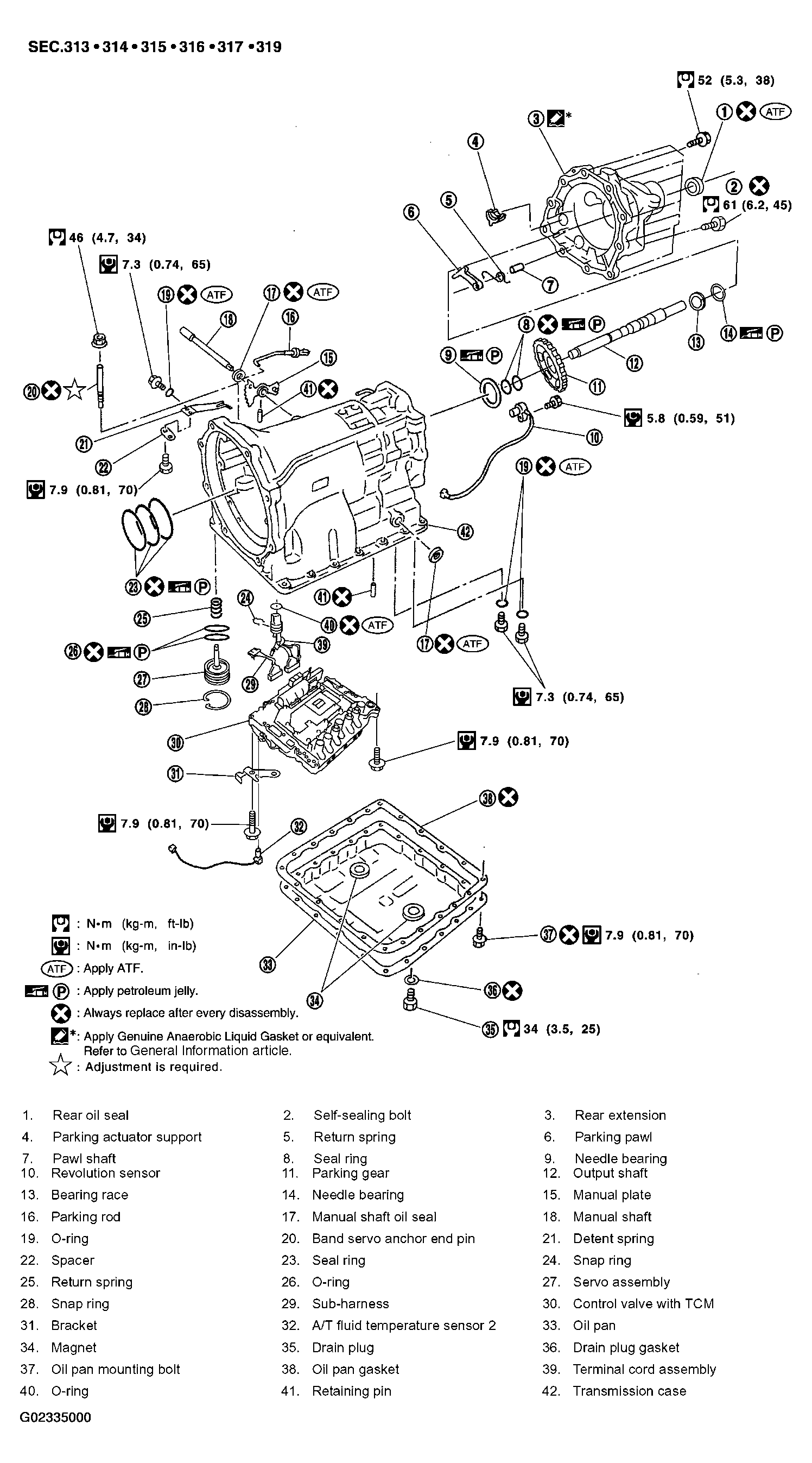

Fig 3: Disassembling/Assembling A/T Assembly Attachments With Torque Specifications
G02335000Courtesy of NISSAN MOTOR CO., U.S.A.
