Control Valve with TCM and A/T Fluid Temperature Sensor 2: Components

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

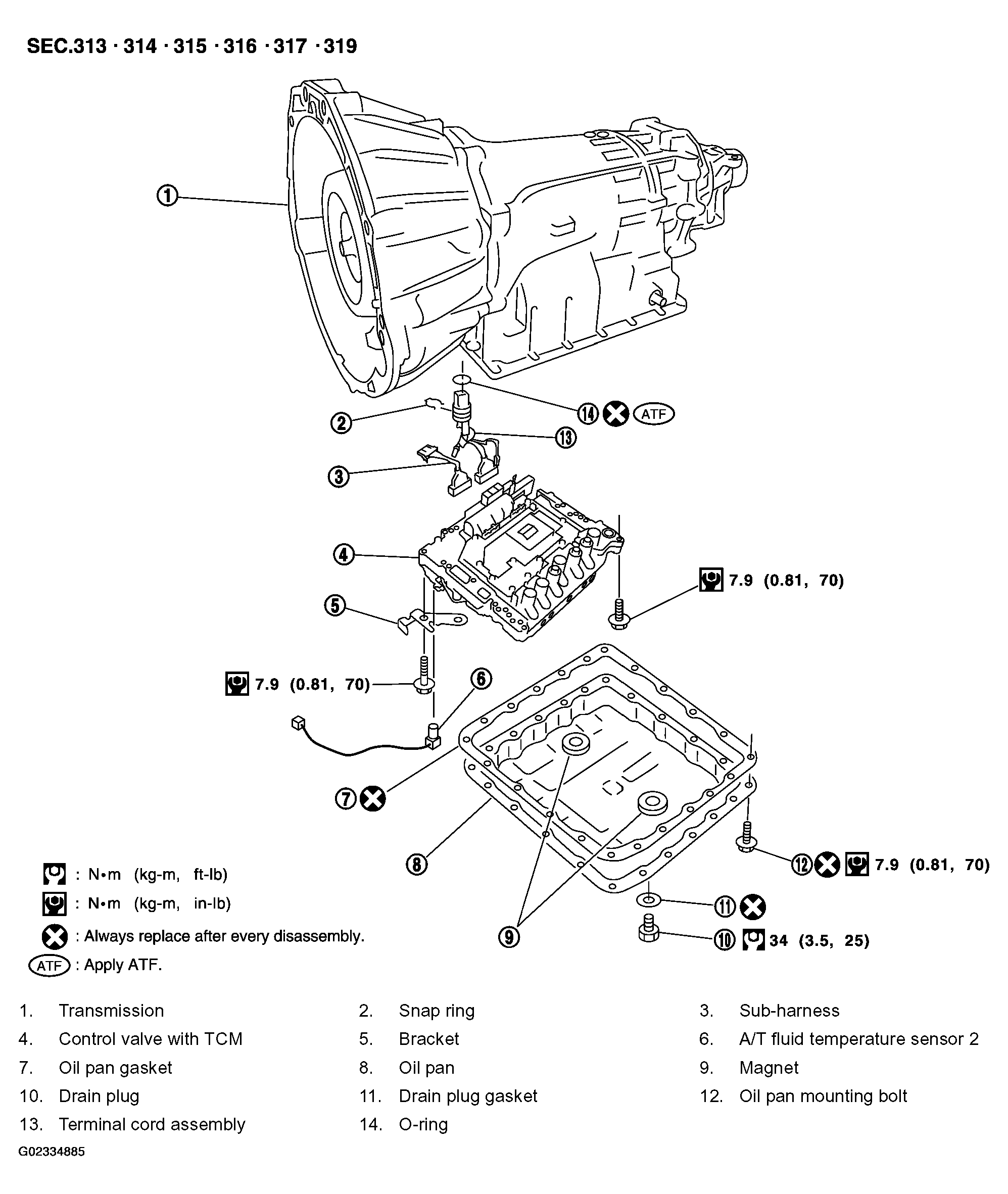

Fig 1: Removing/Installing Control Valve With TCM And A/T Fluid Temperature Sensor 2 Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
