Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device assembly and remove interlock rod from key interlock cable.

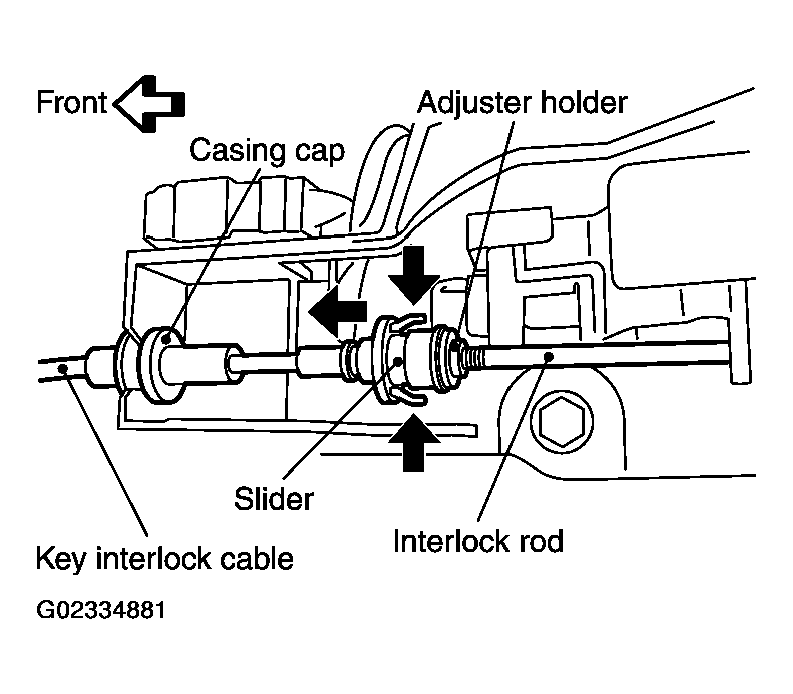

    Fig 1: Removing Interlock Rod From Key Interlock Cable
    G02334881Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder from key cylinder and remove key interlock cable.

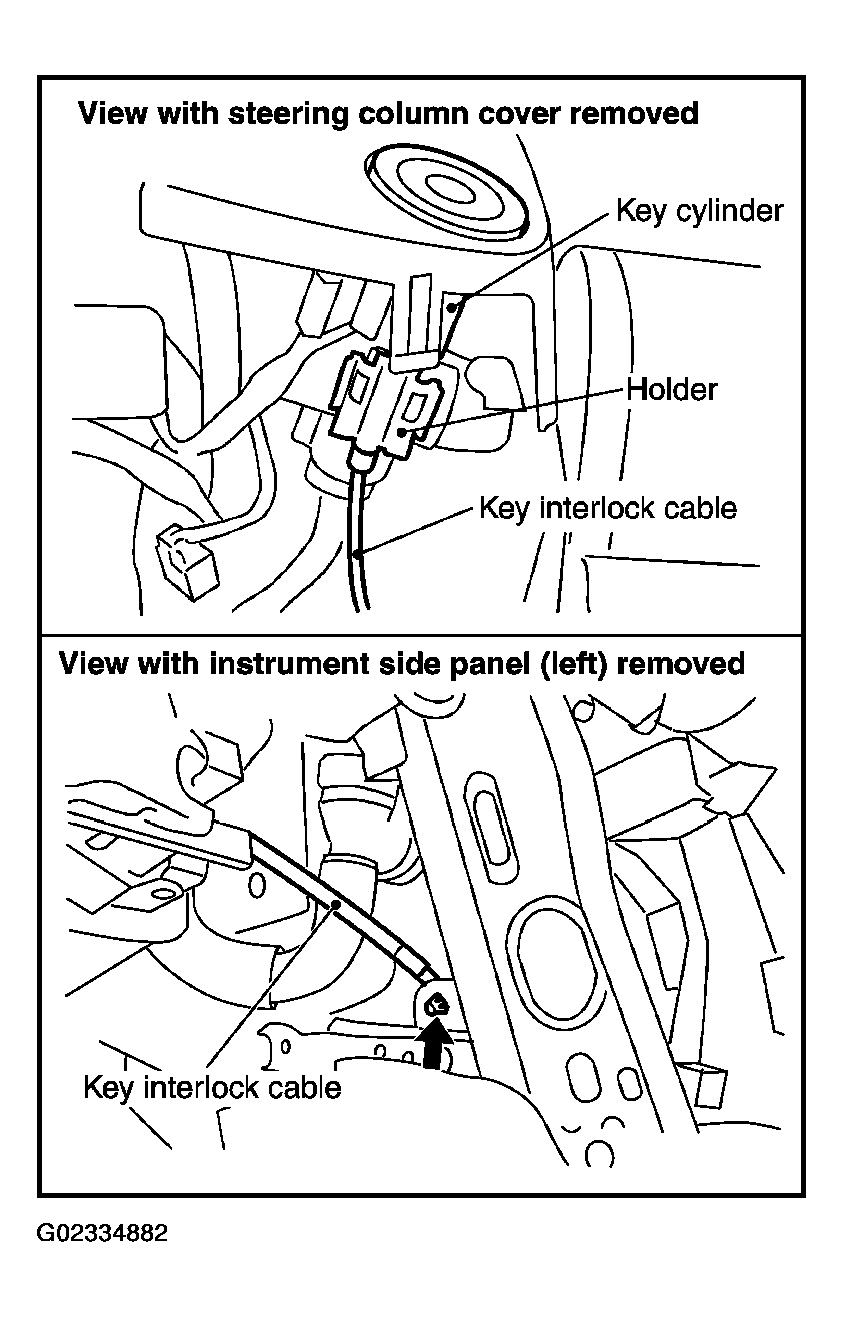

    Fig 2: Removing Holder From Key Cylinder And Key Interlock Cable
    G02334882Courtesy of NISSAN MOTOR CO., U.S.A.
