Manual Mode Switch

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals.

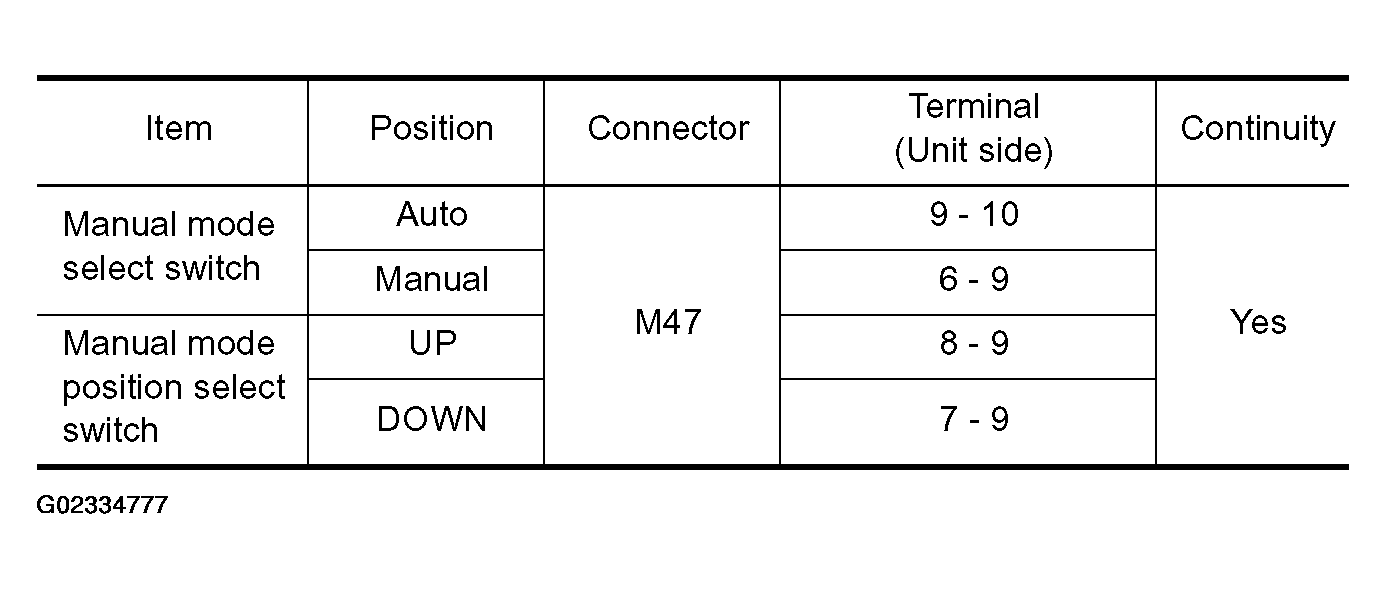

Fig 1: Manual Mode Switch Terminals Continuity Chart
G02334777Courtesy of NISSAN MOTOR CO., U.S.A.

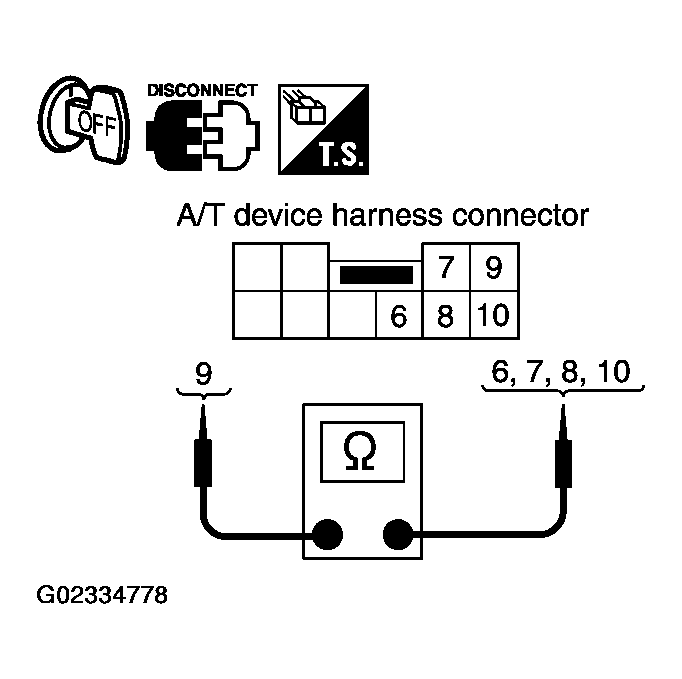

Fig 2: Checking Continuity Between Terminals
G02334778Courtesy of NISSAN MOTOR CO., U.S.A.
