Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DTC
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II.
3. Touch "ERASE".
4. Turn ignition switch "OFF" and wait at least 10 seconds.
5. Perform "DTC confirmation procedure". Refer to DTC CONFIRMATION PROCEDURE .
Is the "TCM.ROM" displayed again?
1. YES: Replace control valve with TCM. Refer to CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 .
2. NO: INSPECTION END

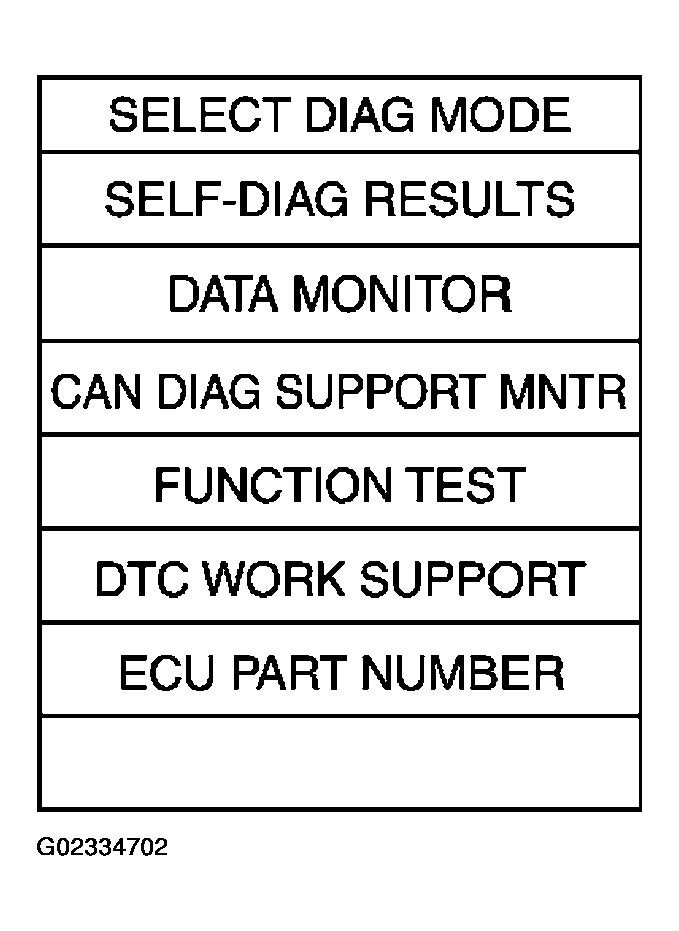

Fig 1: CONSULT-II Select Diag Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
