Diagnostic Procedure

SYMPTOM 1:

• Selector lever cannot be moved from "P" position with key in ON position and brake pedal applied.
• Selector lever can be moved from "P" position with key in ON position and brake pedal released.
• Selector lever can be moved from "P" position when key is removed from key cylinder.

SYMPTOM 2:

• Ignition key cannot be removed when selector lever is set to "P" position.
• Ignition key can be removed when selector lever is set to any position except "P".

1. CHECK KEY INTERLOCK CABLE

   Check key interlock cable for damage.

   OK or NG

   1. OK: GO TO  2.
   2. NG: Repair key interlock cable. Refer to KEY INTERLOCK CABLE .
2. CHECK SELECTOR LEVER POSITION

   Check selector lever position for damage. Refer to CHECKING OF A/T POSITION .

   OK or NG

   1. OK: GO TO  3.
   2. NG: Check selector lever. Refer to ADJUSTMENT OF A/T POSITION .
3. CHECK POWER SOURCE
   1. Turn ignition switch "ON". (Do not start engine.)
   2. Check voltage between A/T device harness connector terminal 2 and ground.
      1. Voltage: Battery voltage

   OK or NG

   1. OK: GO TO  5.
   2. NG: GO TO  4.

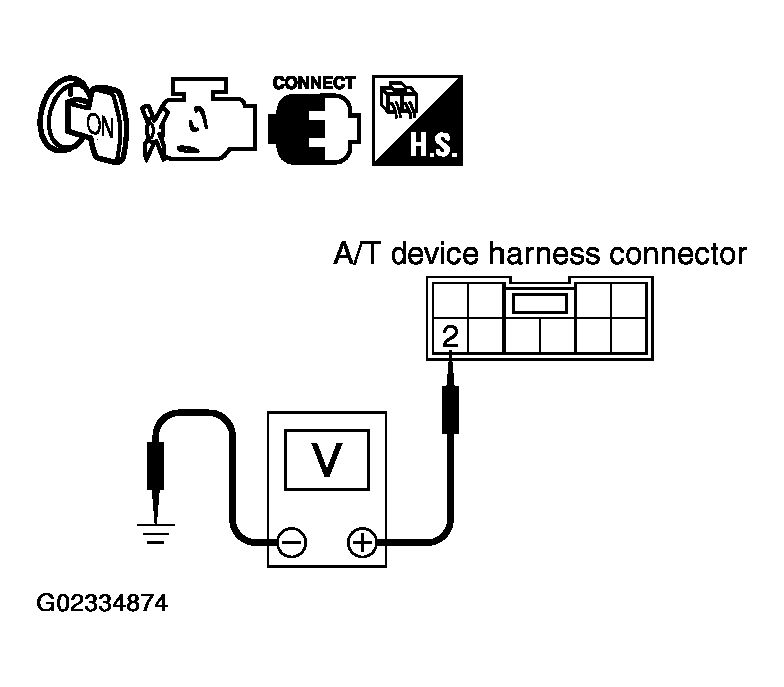

   Fig 1: Checking Voltage Between A/T Device Harness Connector Terminal 2 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. DETECT MALFUNCTIONING ITEM

   Check the following.

   1. Harness for short or open between ignition switch and A/T device harness connector terminal 2.
   2. 10A fuse. [No.12, located in the fuse block (J/B)]
   3. Ignition switch. Refer to POWER SUPPLY ROUTING CIRCUIT .

   OK or NG

   1. OK: GO TO  5.
   2. NG: Repair or replace damaged parts.
5. CHECK INPUT SIGNAL A/T DEVICE
   1. Turn ignition switch "OFF".
   2. Disconnect A/T device harness connector.
   • Check voltage between A/T device harness connector terminal 4 and ground.
     1. Voltage:
     2. Depressed brake pedal
        1. Battery voltage
     3. Released brake pedal
        1. Approx. 0 V

   OK or NG

   1. OK: GO TO  7.
   2. NG: GO TO  6.

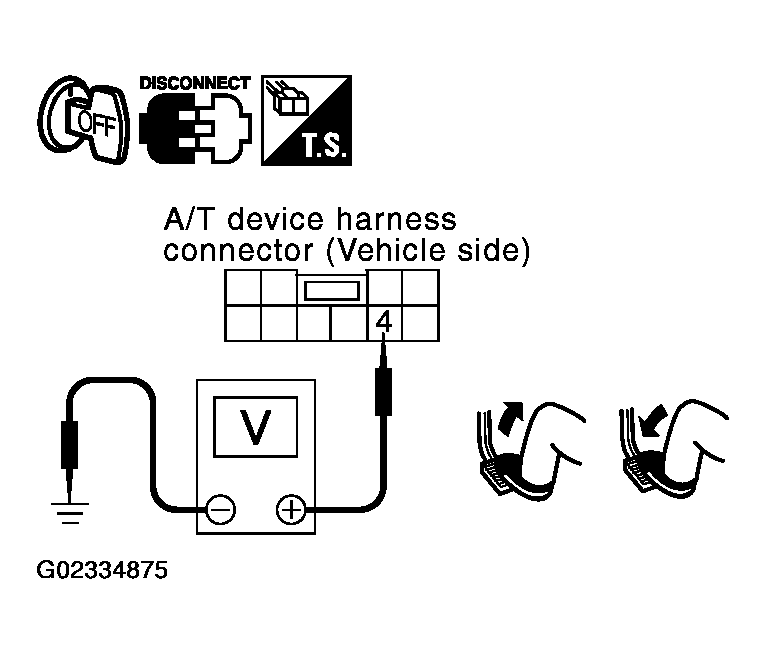

   Fig 2: Checking Voltage Between A/T Device Harness Connector Terminal 4 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. DETECT MALFUNCTIONING ITEM

   Check the following.

   1. Harness for short or open between battery and stop lamp switch harness connector terminal 3.
   2. Harness for short or open between stop lamp switch harness connector terminal 4 and A/T device harness connector terminal 4.
   3. 10A fuse. [No.20, located in the fuse block (J/B)]
   4. Stop lamp switch.
      • Check continuity between stop lamp switch harness connector terminals 3 and 4.

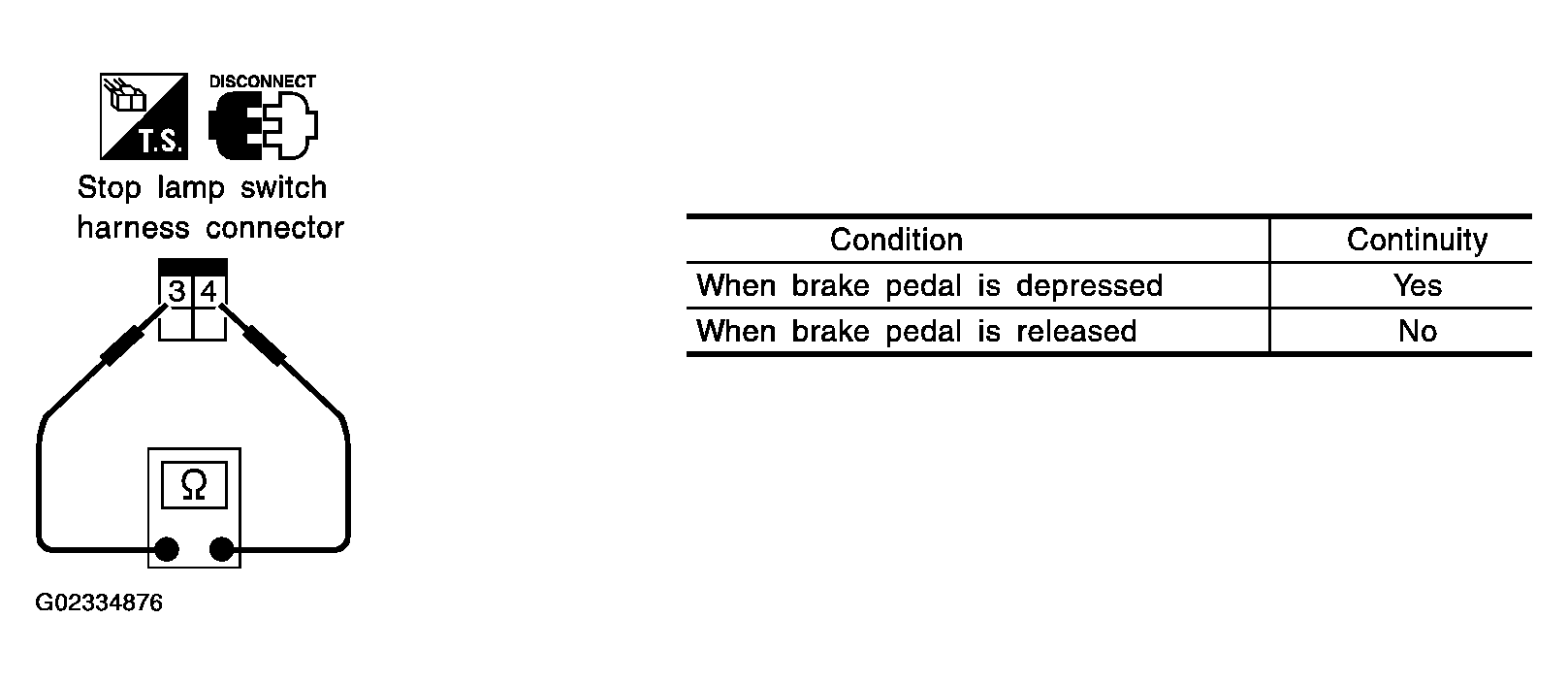

      Fig 3: Checking Continuity Between Stop Lamp Switch Harness Connector Terminals 3 & 4

      Courtesy of NISSAN MOTOR CO., U.S.A.

      Check stop lamp switch after adjusting brake pedal - refer to  BRAKE PEDAL  .

   OK or NG

   1. OK: GO TO  7.
   2. NG: Repair or replace damaged parts.
7. CHECK GROUND CIRCUIT
   1. Turn ignition switch "OFF".
   2. Disconnect A/T device harness connector.
   3. Check continuity between A/T device harness connector terminal 1 and ground.
      1. Continuity should exist.

      If OK, check harness for short to ground and short to power.

   OK or NG

   1. OK: GO TO  8.
   2. NG: Repair open circuit or short to ground or short to power in harness or connectors.

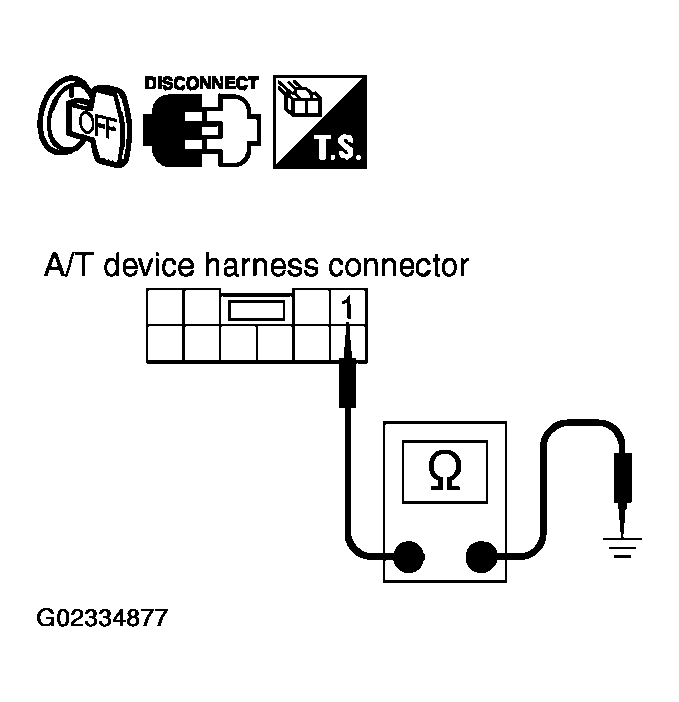

   Fig 4: Checking Continuity Between A/T Device Harness Connector Terminal 1 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
8. CHECK PARK POSITION SWITCH AND SHIFT LOCK RELAY CIRCUIT (COIL SIDE)

   Check continuity between A/T device harness connector terminals 1 and 4.

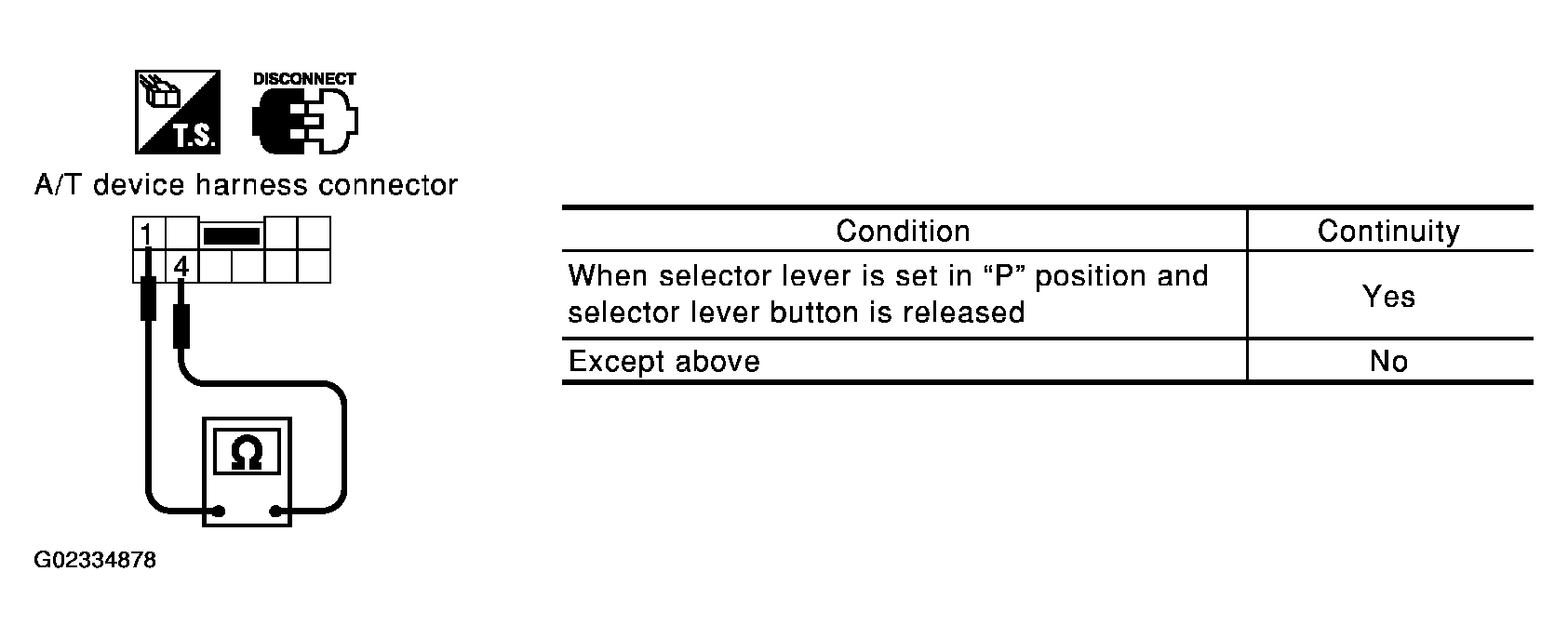

   Fig 5: Checking Continuity Between A/T Device Harness Connector Terminals 1 & 4

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO  9.
   2. NG:
      • Replace park position switch or shift lock relay.
      • Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK SHIFT LOCK SOLENOID AND SHIFT LOCK RELAY CIRCUIT (SWITCH SIDE)
   1. Connect A/T device harness connector.
   2. Turn ignition switch "ON". (Do not start engine.)
   3. Check shift lock solenoid and shift lock relay operation.

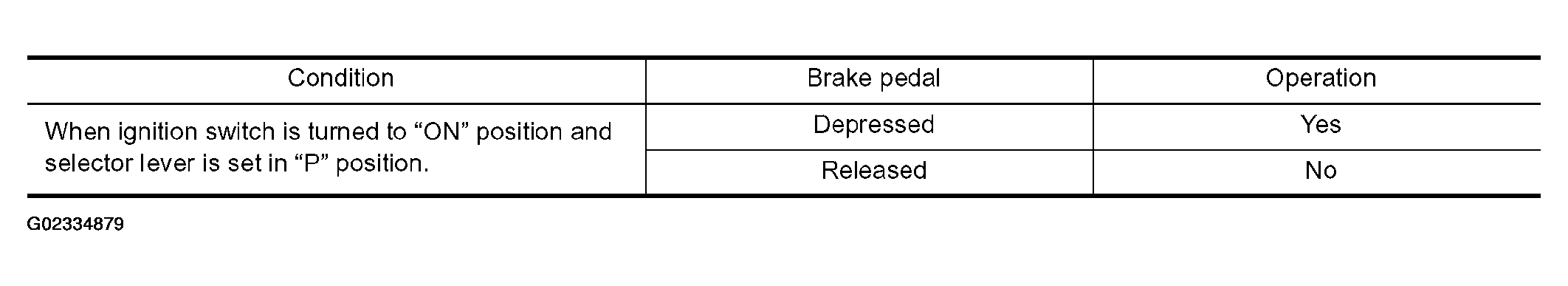

   Fig 6: Shift Lock Solenoid & Shift Lock Relay Operation Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO  10.
   2. NG:
      • Replace shift lock solenoid or shift lock relay.
      • Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK A/T DEVICE INSPECTION
    1. Perform A/T device input/output signal inspection test. Refer to A/T DEVICE INSPECTION CHART .
    2. If NG, recheck harness connector connection.

    OK or NG

    1. OK: INSPECTION END
    2. NG: Repair or replace damaged parts.
