Clutch And Band Chart

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

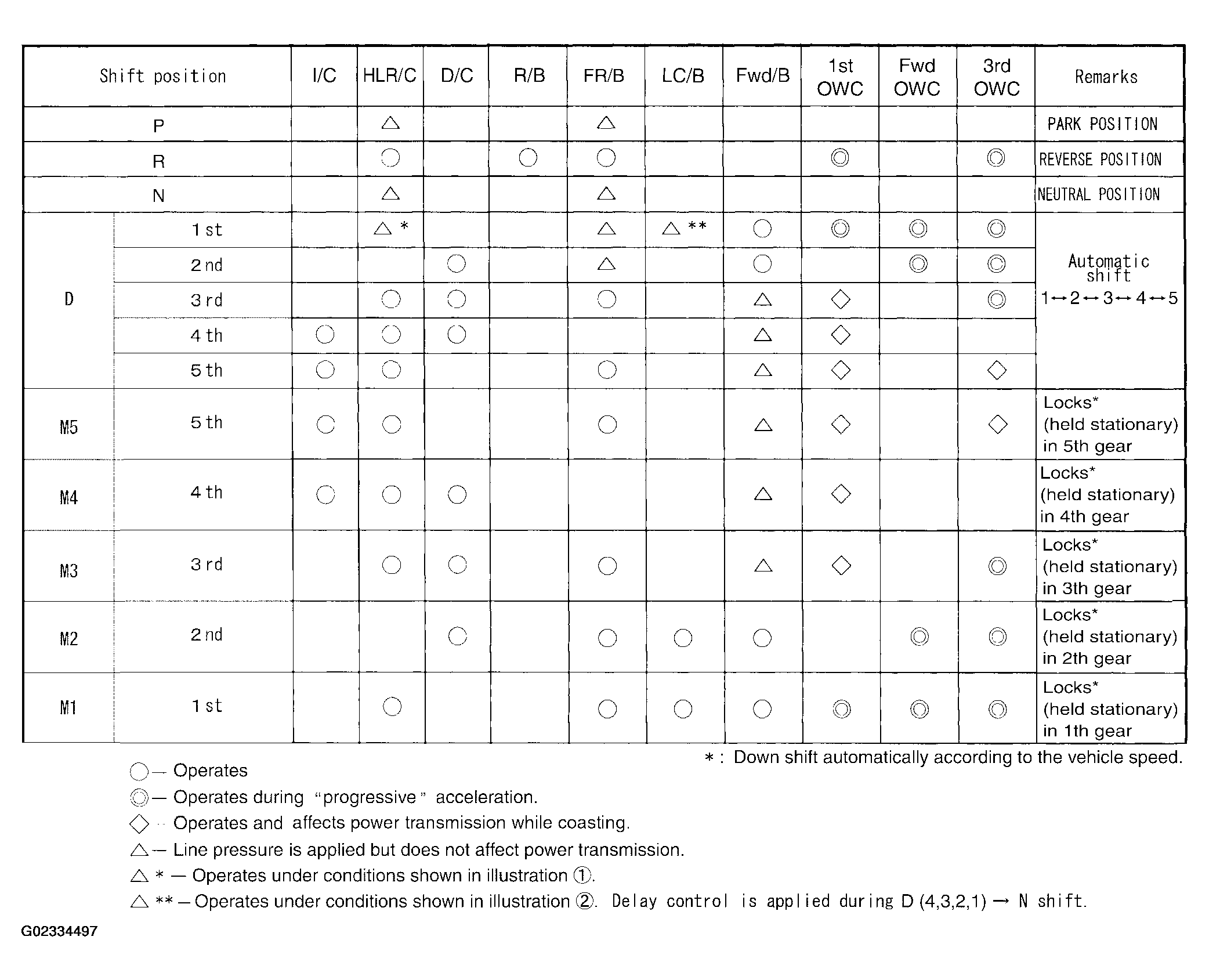

Fig 1: Clutch & Band Chart (1 Of 2)
G02334497Courtesy of NISSAN MOTOR CO., U.S.A.

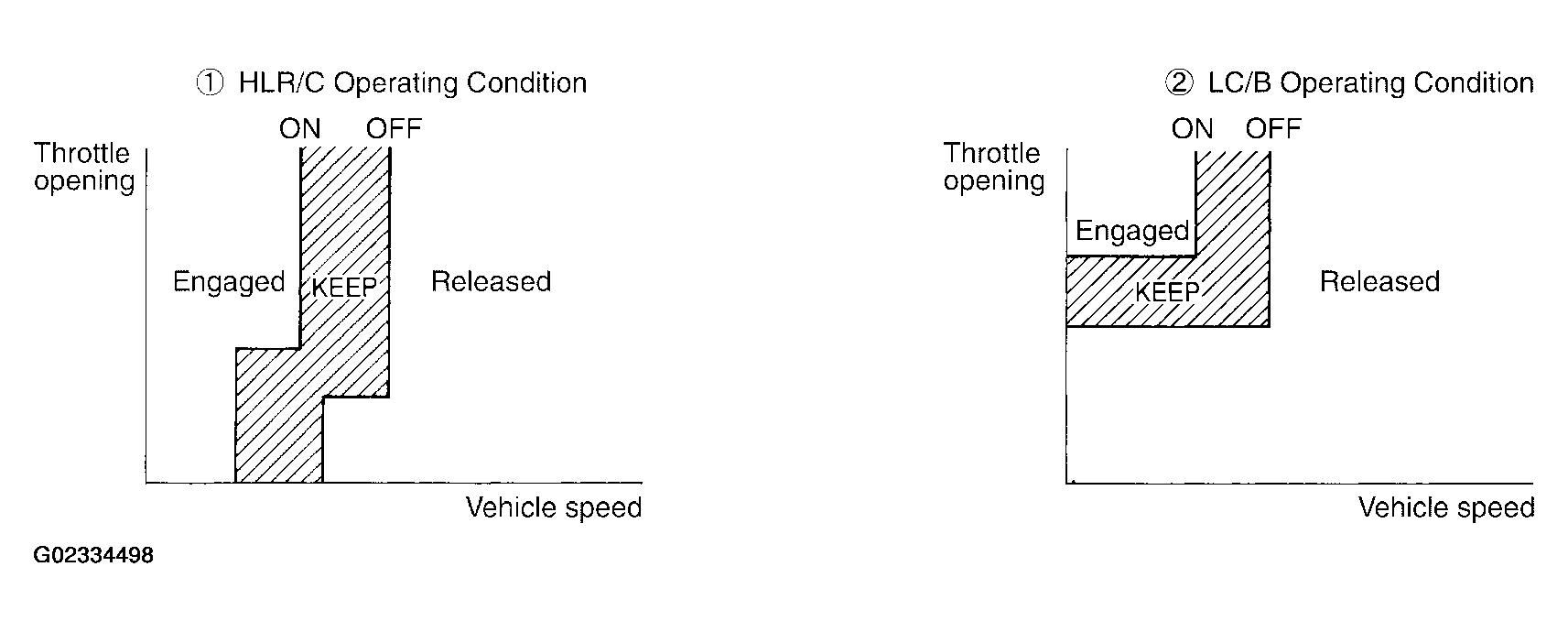

Fig 2: Clutch & Band Chart (2 Of 2)
G02334498Courtesy of NISSAN MOTOR CO., U.S.A.
