Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten two ground screws on the body. Refer to Ground Inspection .

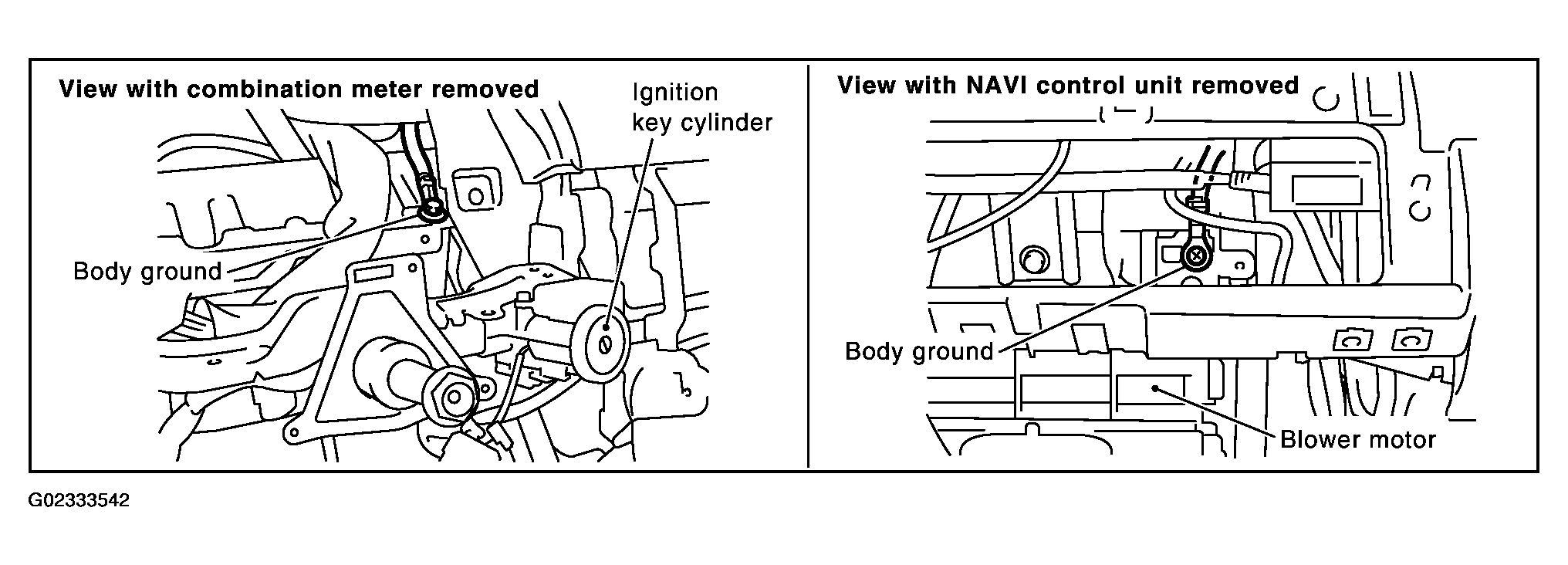

      Fig 1: Locating Body Ground, Blower Motor & Ignition Key Cylinder
      G02333542Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  2.
    2. NG: Repair or replace ground connections.
  2. CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect "fuel level sensor unit and fuel pump" harness connector.
    2. Turn ignition switch ON.

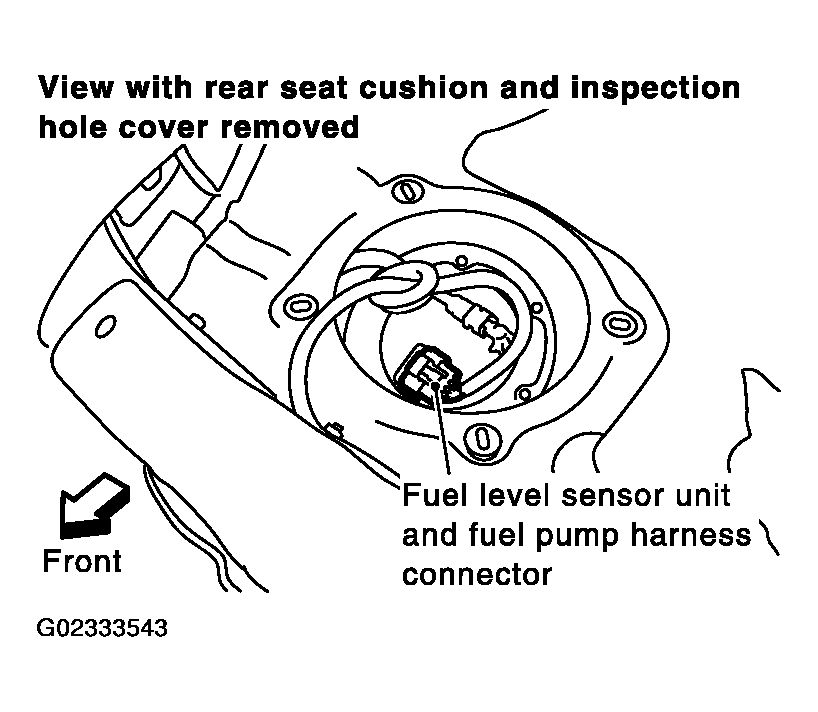

      Fig 2: Disconnecting Fuel Level Sensor Unit & Fuel Pump Harness Connector
      G02333543Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between "fuel level sensor unit and fuel pump" terminal 4 and ground with CONSULT-II or tester.
      1. Voltage: Approximately 5 V

    OK or NG

    1. OK: GO TO  4.
    2. NG: GO TO  3.
    Fig 3: Checking Voltage Between Fuel Level Sensor Unit & Fuel Pump Terminal 4 & Ground
    G02333544Courtesy of NISSAN MOTOR CO., U.S.A.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M72, F102
    • Harness connectors B1, M12
    • Harness for open or short between ECM and "fuel level sensor unit and fuel pump"
      1. Repair open circuit or short to ground or short to power in harness or connector.
  4. CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between "fuel level sensor unit and fuel pump" terminal 5 and ground. Refer to Wiring Diagram.
      1. Continuity should exist.
    3. Also check harness for short to power.

    OK or NG

    1. OK: GO TO  6.
    2. NG: GO TO  5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors B1, M12
    • Harness for open or short between "fuel level sensor unit and fuel pump" and ground.
      1. Repair open circuit or short to power in harness or connector.
  6. CHECK FUEL TANK TEMPERATURE SENSOR

    Refer to Component Inspection .

    OK or NG

    1. OK: GO TO  7.
    2. NG: Replace fuel level sensor unit.
  7. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    1. INSPECTION END
