System - Engine Mechanical & Other

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

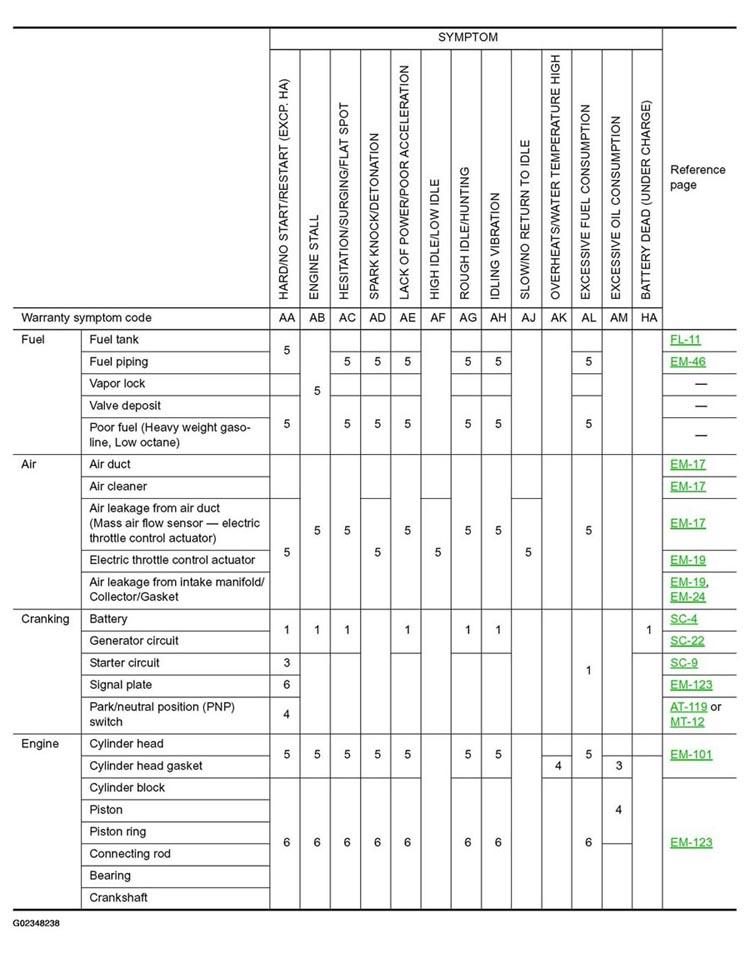

Fig 1: Symptom Matrix Chart - System - Engine Mechanical & Other (1 Of 2)
G02348238Courtesy of NISSAN MOTOR CO., U.S.A.

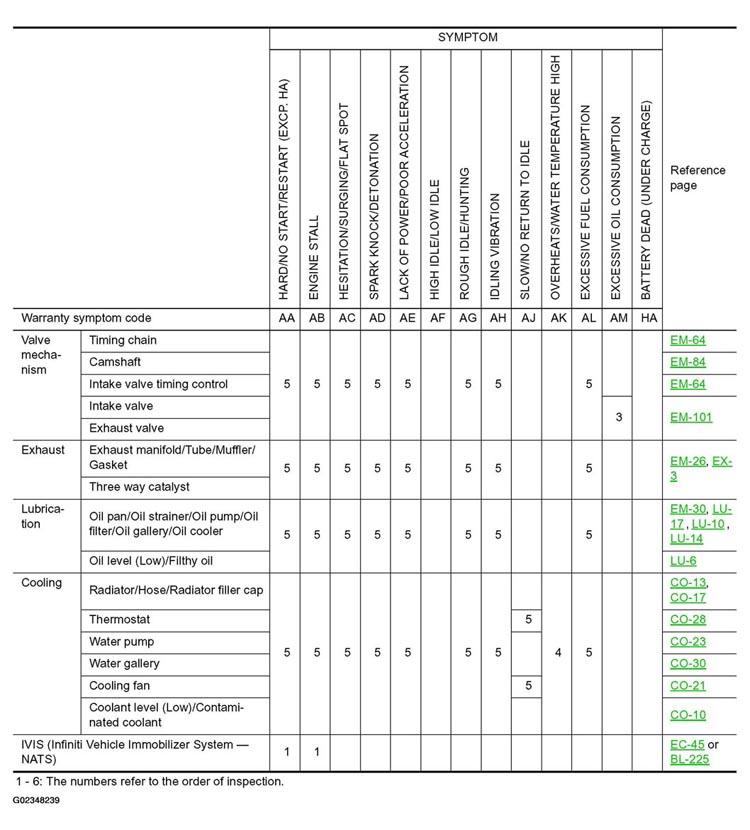

Fig 2: Symptom Matrix Chart - System - Engine Mechanical & Other (1 Of 2)
G02348239Courtesy of NISSAN MOTOR CO., U.S.A.
