EVAP Service Port

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Positive pressure is delivered to the EVAP system through the EVAP service port. If fuel vapor leakage in the EVAP system occurs, use a leak detector to locate the leak.

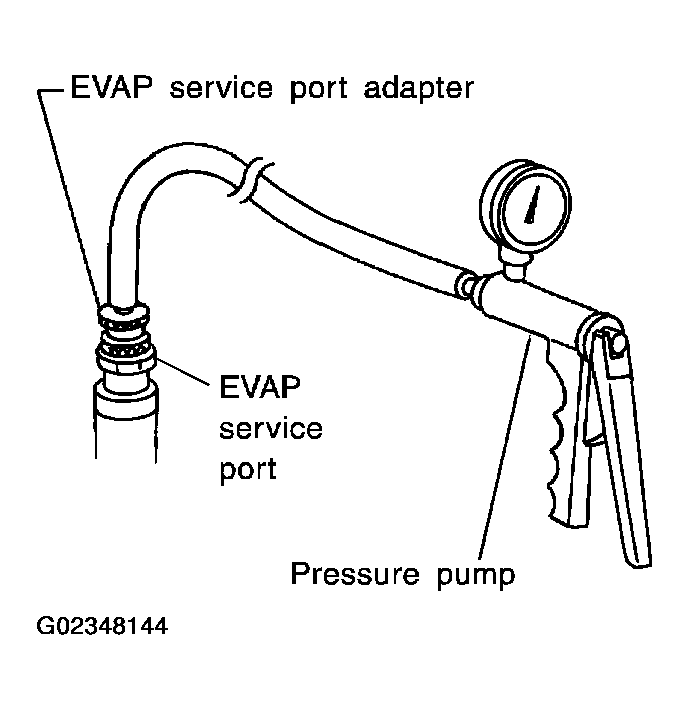

Fig 1: Detecting Fuel Vapor Leakage In EVAP System Occurs
G02348144Courtesy of NISSAN MOTOR CO., U.S.A.
