With CONSULT-II

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Set shift lever to D position (A/T) or 1st position (M/T) and wait at least 3 seconds.
  4. Set shift lever to N, P position (A/T) or Neutral (M/T).
  5. Start engine and let it idle for 3 seconds.
  6. If DTC is detected, go to "Diagnostic Procedure ".

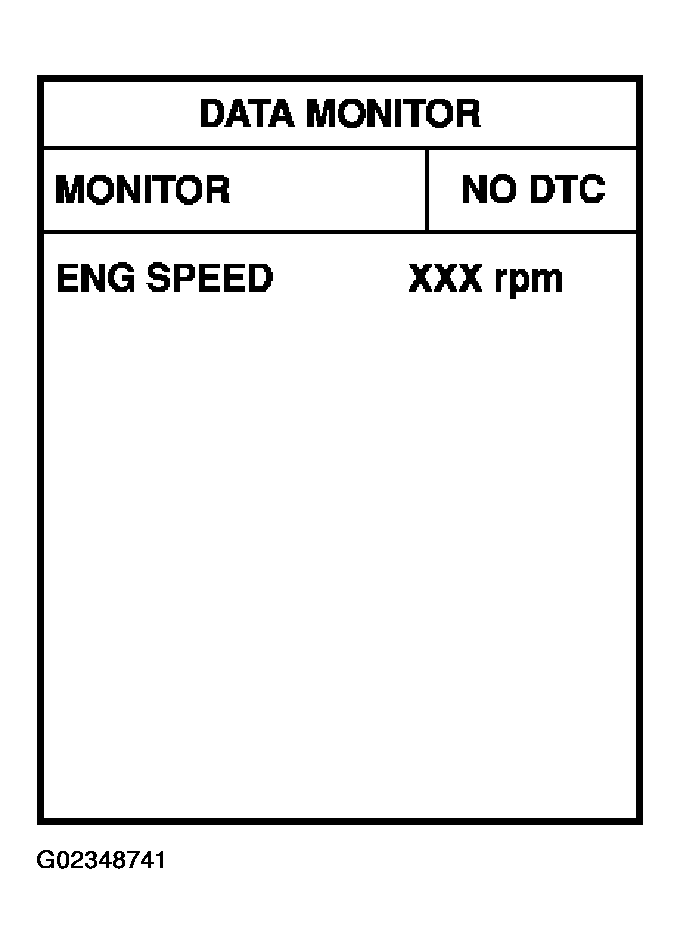

    Fig 1: Selecting "DATA MONITOR" Mode With CONSULT-II
    G02348741Courtesy of NISSAN MOTOR CO., U.S.A.
