With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 1 second.
  4. Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.
  5. Repeat steps 3 and 4 for four times.
  6. If 1st trip DTC is detected, go to "Diagnostic Procedure "

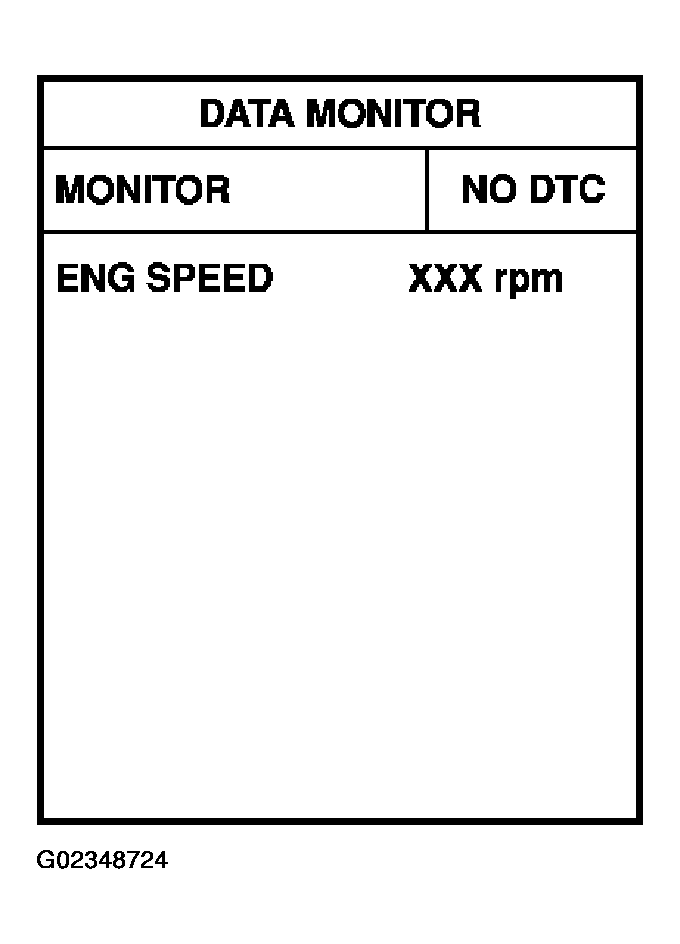

    Fig 1: Select "DATA MONITOR" Mode With CONSULT-II
    G02348724Courtesy of NISSAN MOTOR CO., U.S.A.
