Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

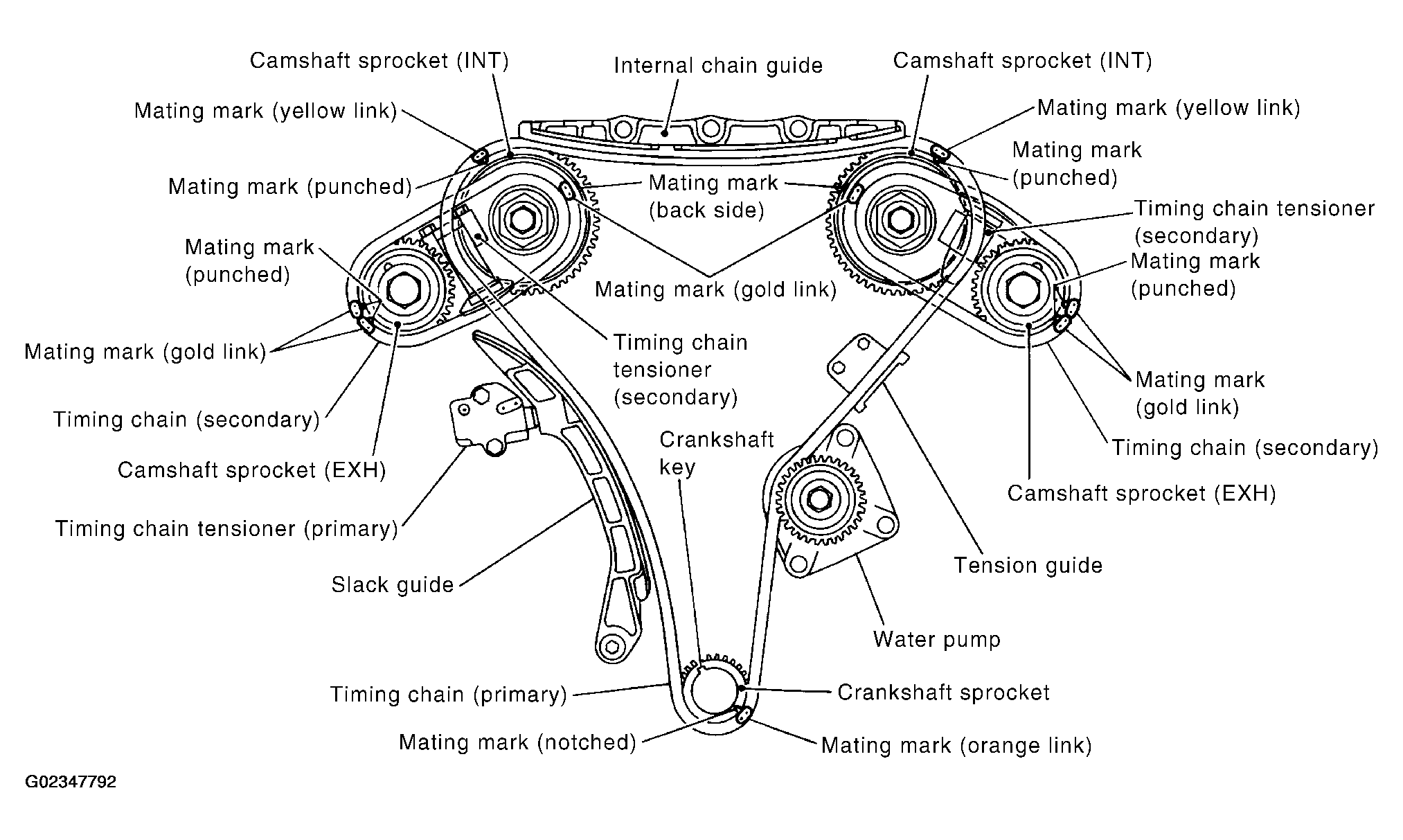

NOTE: The below figure shows the relationship between the mating mark on each timing chain and that on the corresponding sprocket, with the components installed.

Fig 1: Timing Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Install timing chain tensioners (secondary) to cylinder head as follows if removed. Refer to "INSTALLATION ".
1. Install timing chain tensioners (secondary) with stopper pin attached and new O-ring.
2. Install camshaft brackets (No. 1). Refer to "INSTALLATION ".
Install rear timing chain case as follows-:
1. Install O-rings onto cylinder block.

  Fig 2: Installation Of O-Rings Onto Cylinder Block
  Courtesy of NISSAN MOTOR CO., U.S.A.

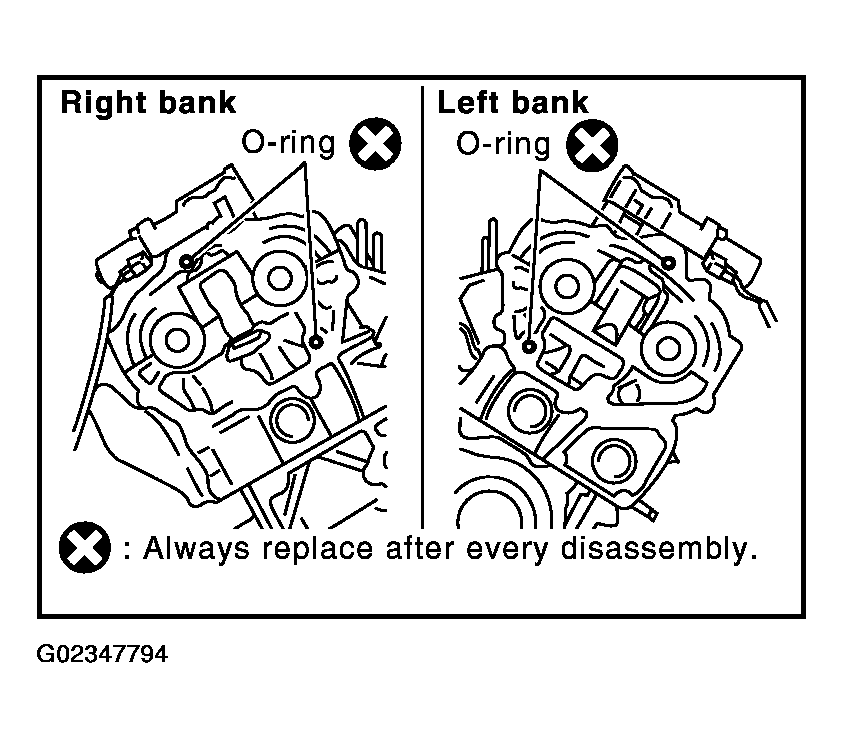

2. Install O-rings to cylinder head.

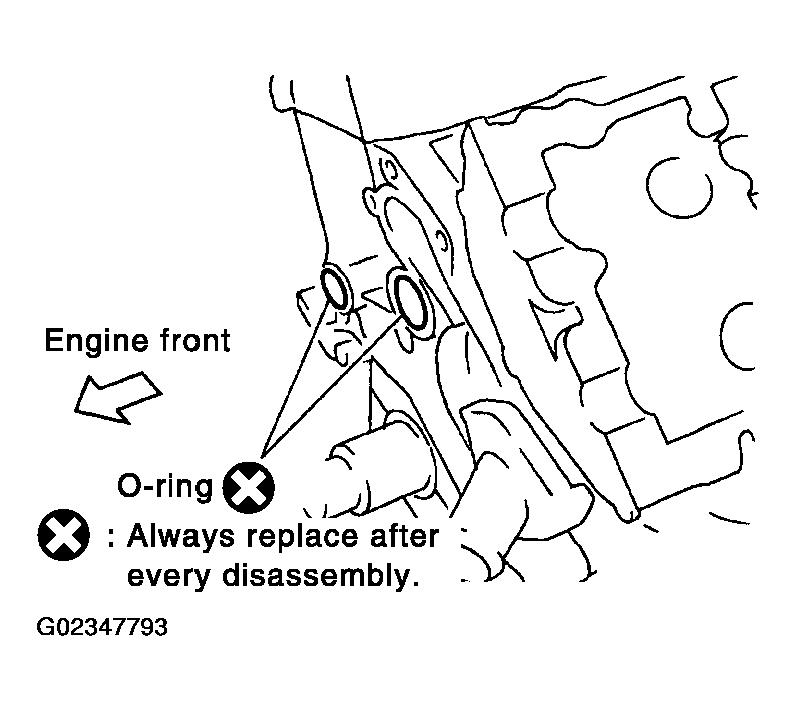

  Fig 3: Installation Of O-Rings To Cylinder Head
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Apply liquid gasket to rear timing chain case back side as shown in the figure.
  Use Genuine RTV Silicone Sealant or equivalent. Refer to " RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
  CAUTION:
  - For "A" in the figure, completely wipe out liquid gasket extended on a portion touching at engine coolant.
  - Apply liquid gasket on installation position of water pump and cylinder head very completely.

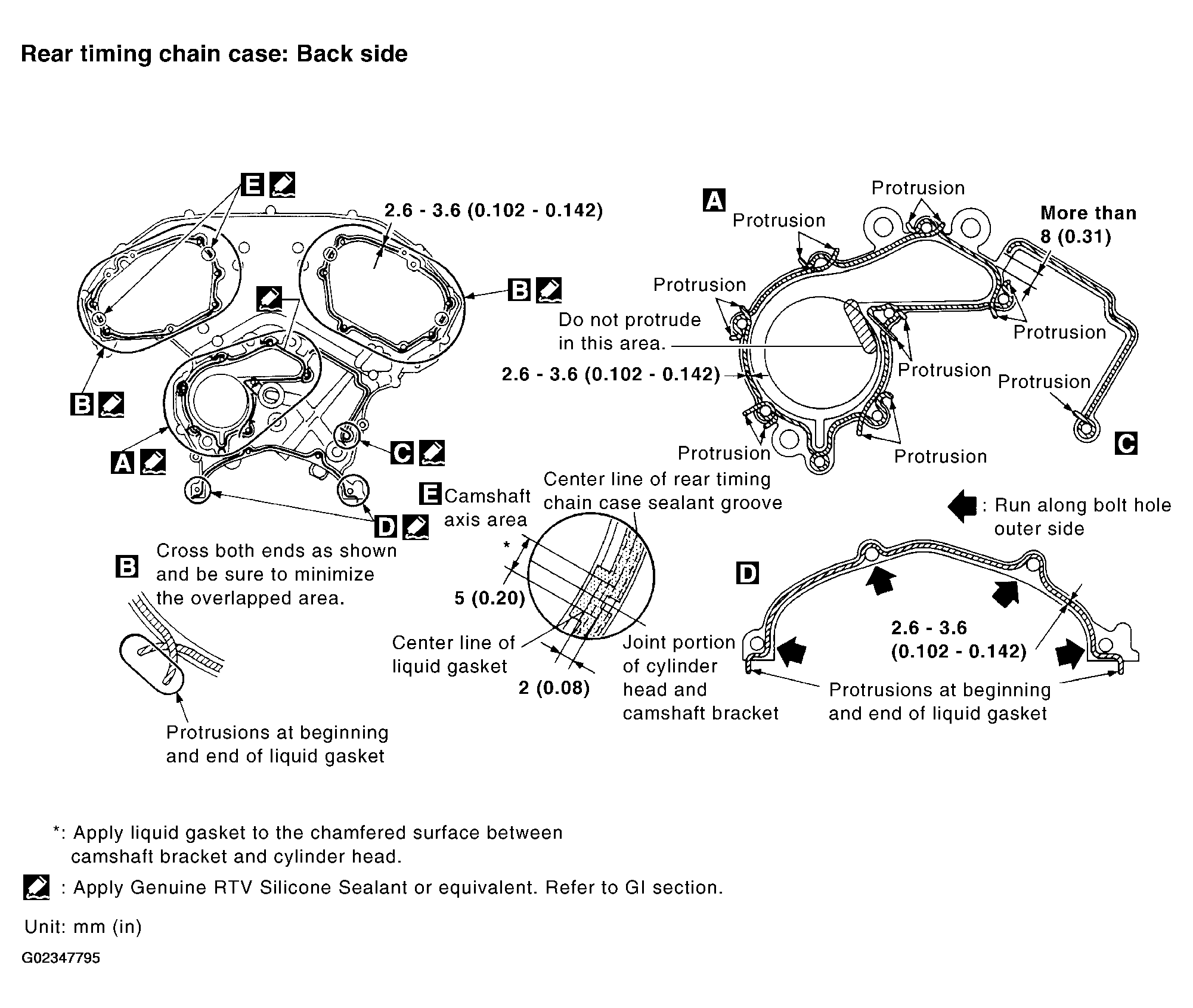

    Fig 4: Application Of Continuous Bead Of Liquid Gasket
    Courtesy of NISSAN MOTOR CO., U.S.A.
4. Align rear timing chain case and water pump assembly with dowel pins (right and left) on cylinder block and install rear timing chain case.
  - Make sure O-rings stay in place during installation to cylinder block and cylinder head.
5. Tighten mounting bolts in numerical order as shown in the figure.
  - There are two types of mounting bolts. Refer to the following for locating bolts.
    Bolt length: Bolt position

    20 mm (0.79 in) : 1, 2, 3, 6, 7, 8, 9, 10

    16 mm (0.63 in) : Except the above

    : 11.7 - 13.7 N.m (1.2 - 1.4 kg.m, 9 - 10 ft.lb)

    Fig 5: Tightening Order Of Bolts
    Courtesy of NISSAN MOTOR CO., U.S.A.
6. After all bolts are tightened, retighten them to the specified in numerical order shown in the figure.
  - If the RTV Silicone Sealant protrudes, wipe it off immediately.
7. After installing rear timing chain case, check surface height difference between the following parts on the oil pan (upper) mounting surface.
  Standard

  Rear timing chain case to cylinder block:

  -0.24 to 0.14 mm (-0.0094 to 0.0055 in)
  - If out of the standard, repeat the installation procedure.

    Fig 6: Checking Surface Height Difference
    Courtesy of NISSAN MOTOR CO., U.S.A.
Install tension guide.
Position crankshaft so No. 1 piston is set at TDC on the compression stroke.
- Make sure that dowel pin hole, dowel pin and crankshaft key are located as shown in the figure.
  NOTE: Though camshaft does not stop at the position as shown in the figure, for the placement of cam nose, it is generally accepted camshaft is placed for the same direction of the figure.

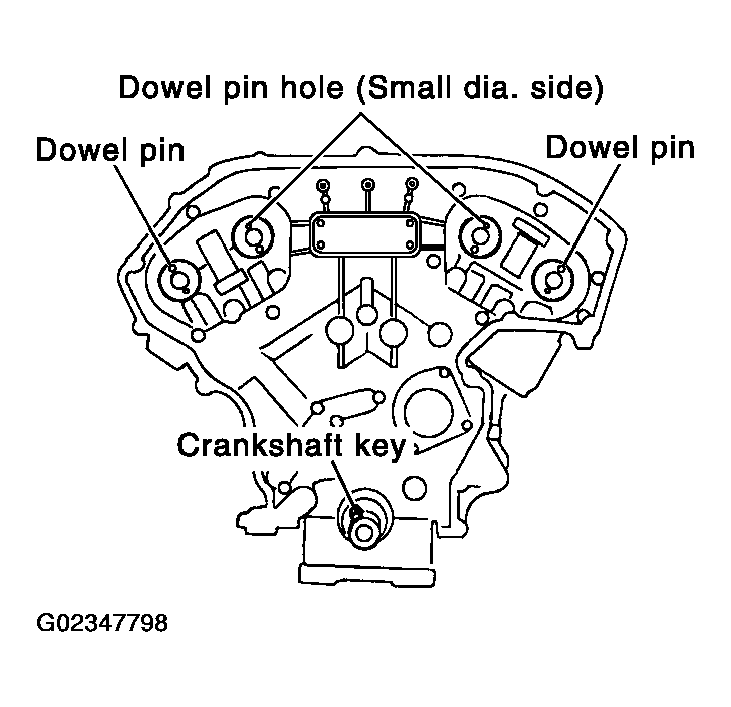

  Fig 7: Locating Dowel Pin & Crankshaft Key
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Camshaft dowel pin hole (intake side)

  : At cylinder head upper face side in each bank.

  Camshaft dowel pin (exhaust side)

  : At cylinder head upper face side in each bank.

  Crankshaft key

  : At cylinder head side of right bank.

  CAUTION: Hole on small dia. side must be used for intake side dowel pin hole. Do not misidentify (ignore big dia. side).
Install timing chains (secondary) and camshaft sprockets as follows:
CAUTION: Mating marks between timing chain (secondary) and sprockets slip easily. Confirm all mating mark positions repeatedly during the installation process.

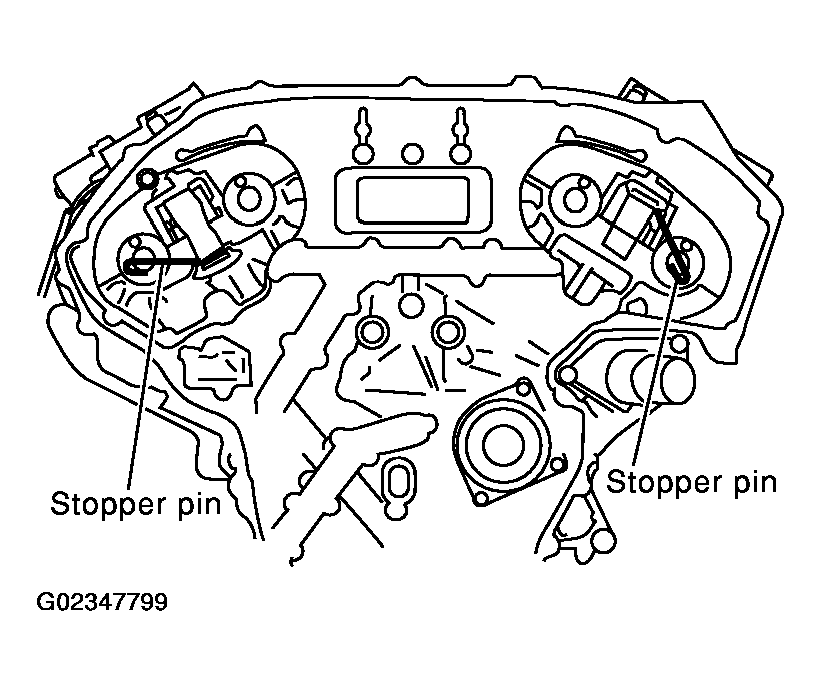

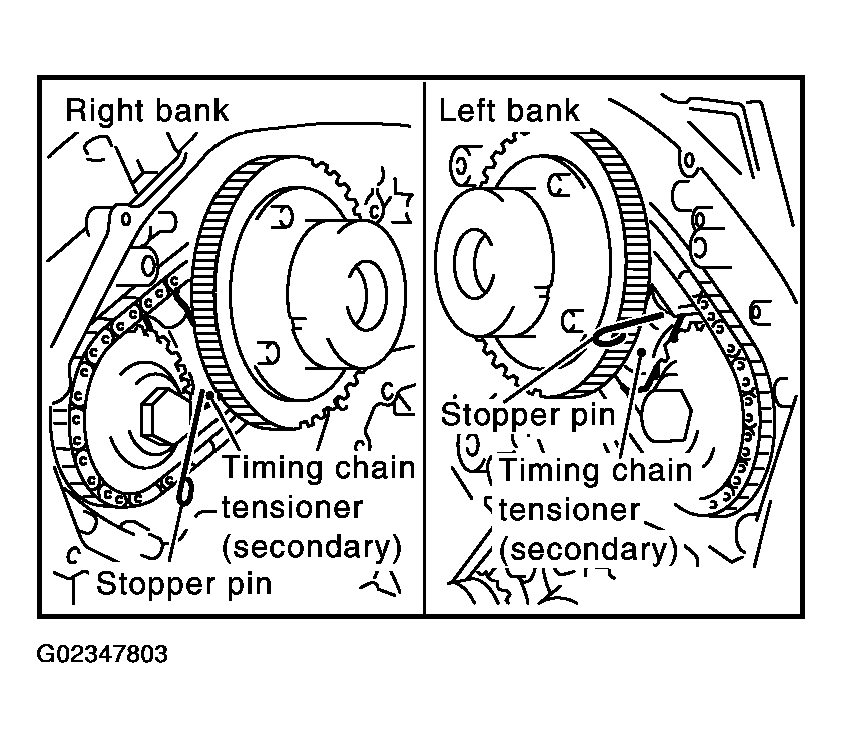

1. Push plunger of timing chain tensioner (secondary) and keep it pressed in with stopper pin.

  Fig 8: Locating Stopper Pin
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install timing chains (secondary) and camshaft sprockets.
  - Align the mating marks on timing chain (secondary) (gold link) with the ones on take and exhaust camshaft sprockets (punched), and install them.
    NOTE:
    Mating marks for intake camshaft sprocket are on the back side of camshaft sprocket (secondary).

    There are two types of mating marks, circle and oval types. They should be used for the right and left banks, respectively.
    right bank : Use circle type.

    left bank : Use oval type.
  - Align dowel pin and pin hole on camshafts with the groove and dowel pin on sprockets, and install them.
  - On the intake side, align pin hole on the small diameter side of the camshaft front end with dowel pin on the back side of camshaft sprocket, and install them.
  - On the exhaust side, align dowel pin on camshaft front end with pin groove on camshaft sprocket, and install them.
  - In a case that positions of each mating mark and each dowel pin are not fit on mating parts, make fine adjustment to the position holding the hexagonal portion on camshaft with wrench or equivalent.

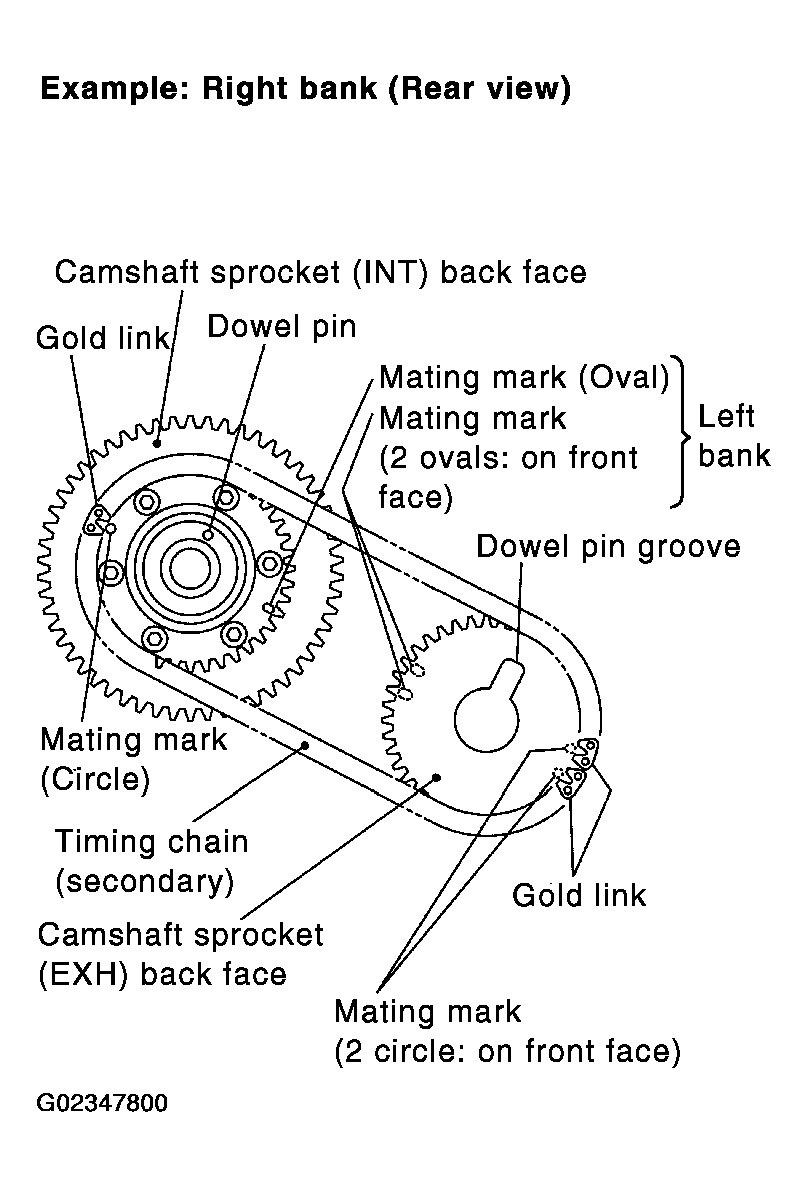

    Fig 9: Alignment Of Mating Mark On Timing Chain With Intake & Exhaust Camshaft Sprockets & Installed
    Courtesy of NISSAN MOTOR CO., U.S.A.
  - Mounting bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is enough to prevent the dislocation of dowel pins.
  - It may be difficult to visually check the dislocation of mating marks during and after installation. To make the matching easier, make a mating mark on the top of sprocket teeth and its extended line in advance with paint.

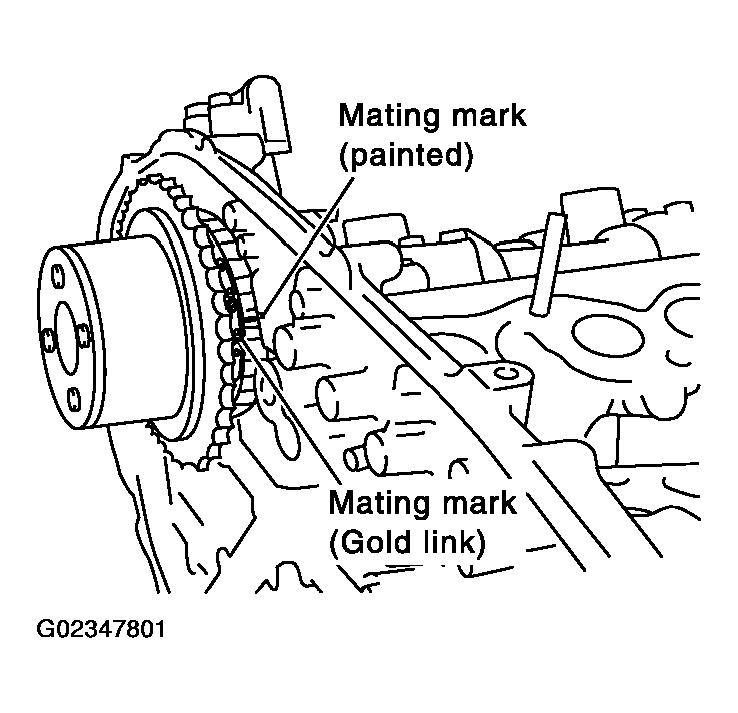

    Fig 10: Locating Mating Mark
    Courtesy of NISSAN MOTOR CO., U.S.A.
3. After confirming the mating marks are aligned, tighten camshaft sprocket mounting bolts.

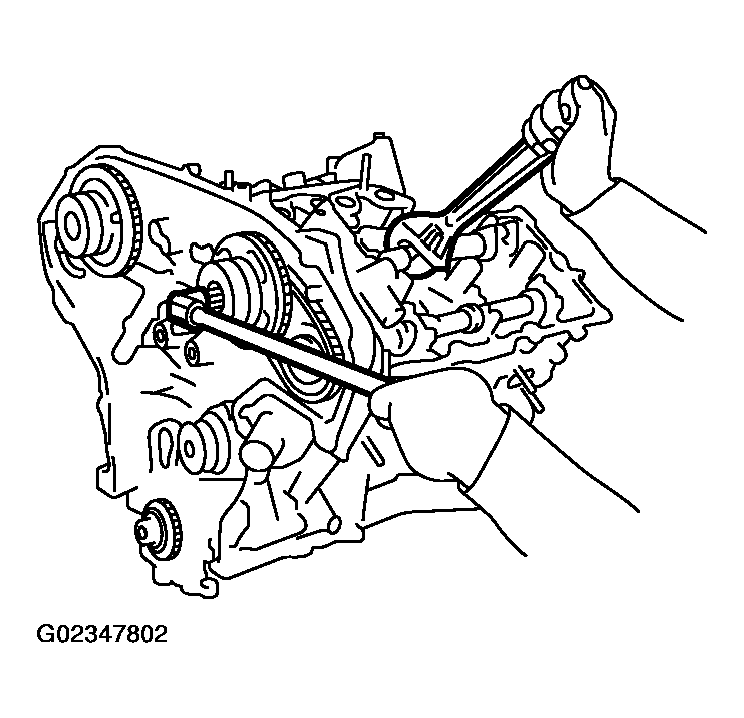

  - Secure camshaft using wrench at the hexagonal portion to tighten mounting bolts.

    Fig 11: Tightening Bolt
    Courtesy of NISSAN MOTOR CO., U.S.A.
4. Pull stopper pins out from timing chain tensioners (secondary).

  Fig 12: Pulling Of Stopper Pin
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install timing chain (primary) as follows:

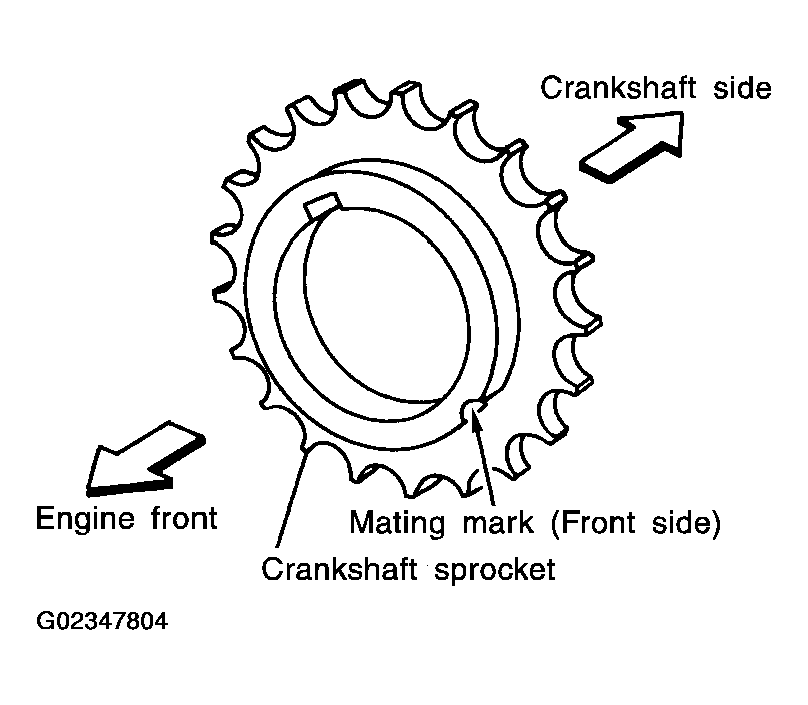

1. Install crankshaft sprocket.
  - Make sure the mating marks on crankshaft sprocket face the front of engine.

    Fig 13: Mating Mark Side
    Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install timing chain (primary).

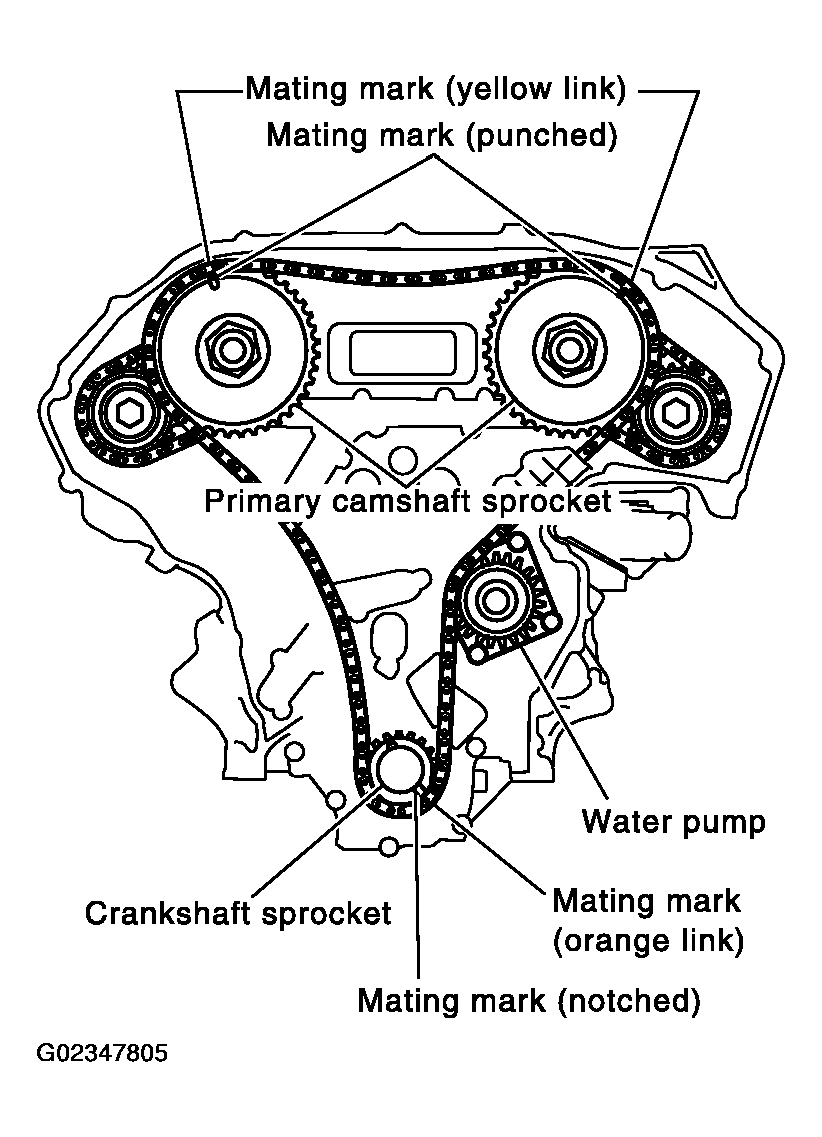

  - Install timing chain (primary) so the mating mark (punched) on camshaft sprocket is aligned with the yellow link on timing chain, while the mating mark (notched) on crankshaft sprocket is aligned with the orange one on timing chain, as shown in the figure.
  - When it is difficult to align mating marks of timing chain (primary) with each sprocket, gradually turn camshaft using wrench on the hexagonal portion to align it with the mating marks.
  - During alignment, be careful to prevent dislocation of mating mark alignments of timing chains (secondary).

    Fig 14: Alignment Of Mating Mark
    Courtesy of NISSAN MOTOR CO., U.S.A.
Install internal chain guide and slack guide.

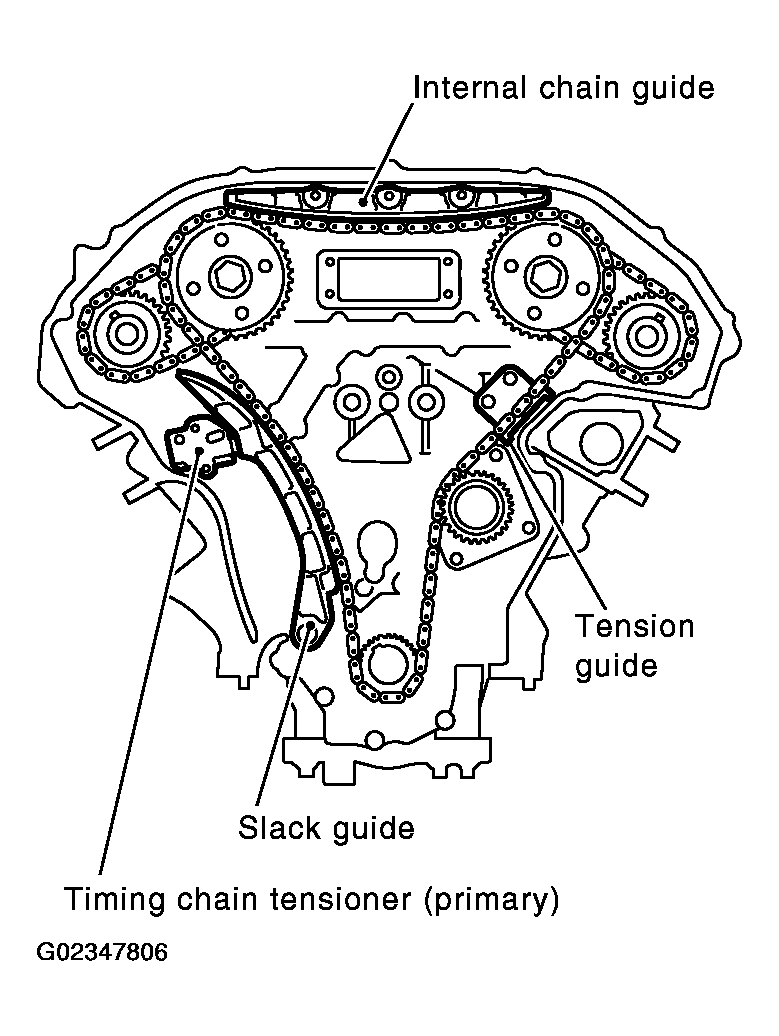

Fig 15: Installation Of Internal Chain Guide & Slack Guide
Courtesy of NISSAN MOTOR CO., U.S.A.

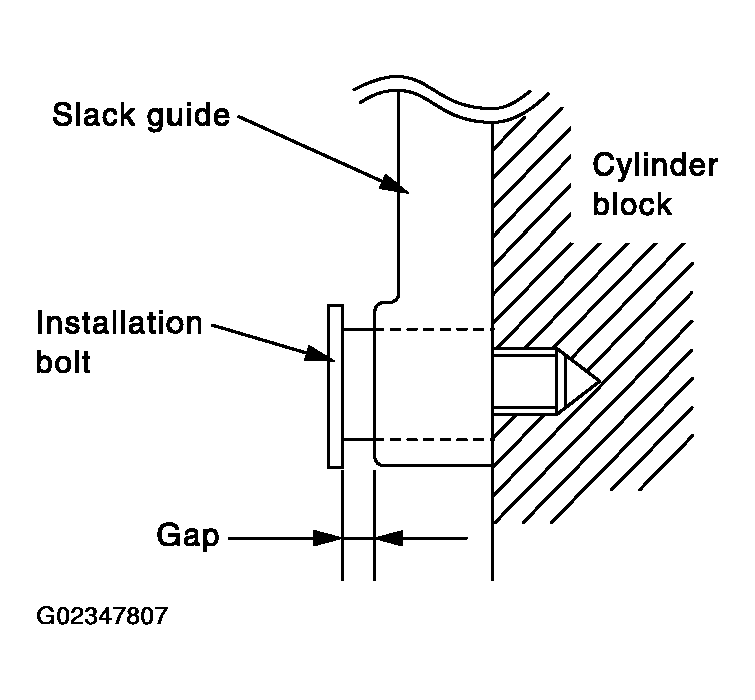

CAUTION: Do not overtighten slack guide mounting bolts. It is normal for a gap to exist under the bolt seats when mounting bolts are tightened to specification.

Fig 16: Precaution - Don't Overtighten Slack Guide Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

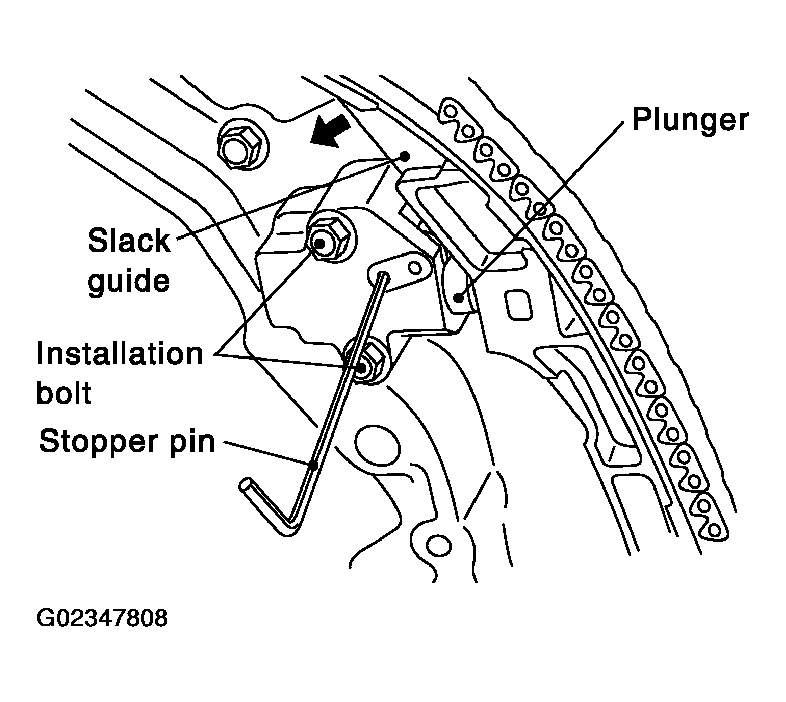

- When installing timing chain tensioner (primary), push in plunger and keep it pressed in with stopper pin.
- Remove any dirt and foreign materials completely from the back and the mounting surfaces of chain tensioner.
- After installation, pull out stopper pin by pressing slack guide.

  Fig 17: Installation Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure again that the mating marks on sprockets and timing chain have not slipped out of alignment.

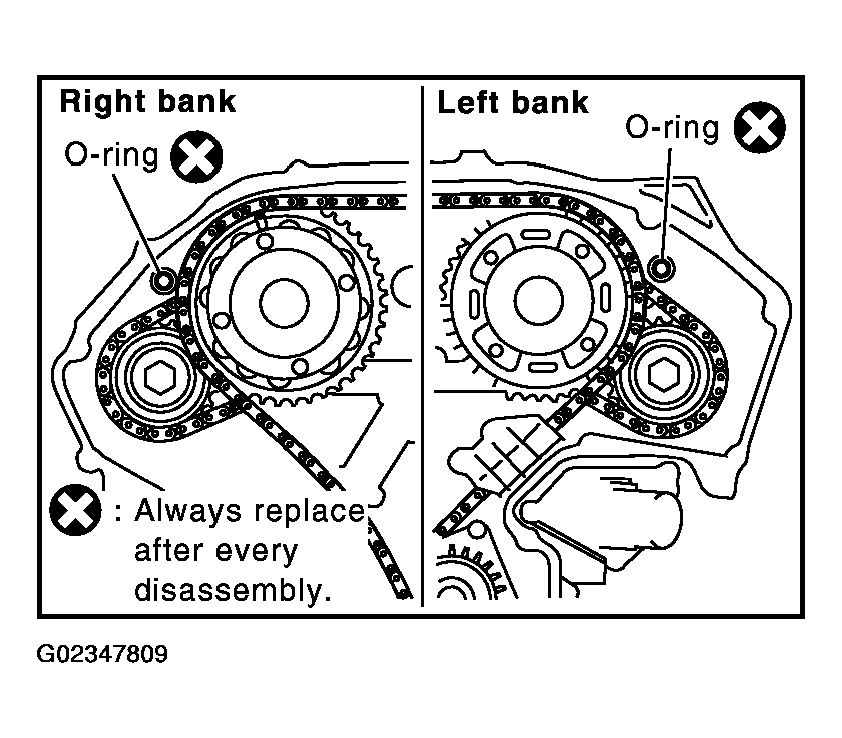

Install new O-rings on rear timing chain case.

Fig 18: Installation Of New O-Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install front oil seal on front timing chain case. Apply new engine oil to the oil seal lip, dust seal lip and outer round of oil seal.

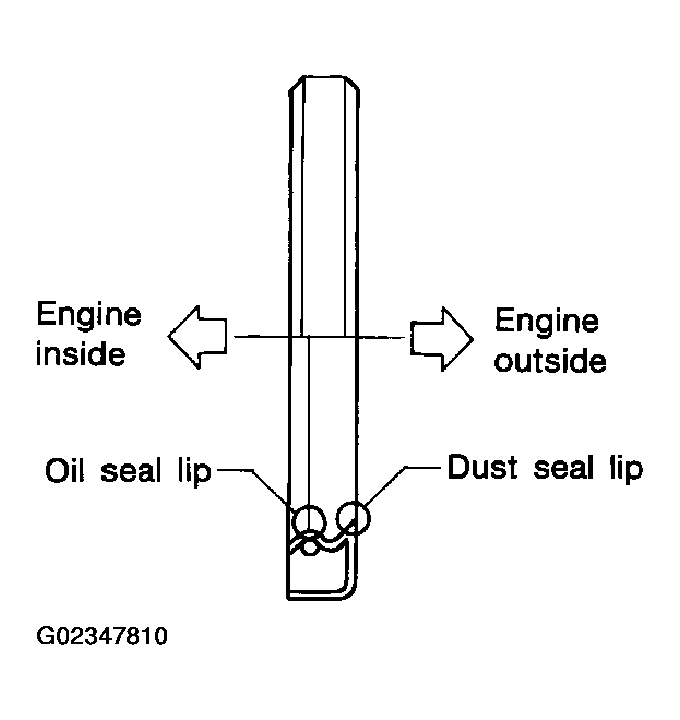

- Install it so that each seal lip is oriented as shown in the figure.

  Fig 19: Locating Different Seal Lip
  Courtesy of NISSAN MOTOR CO., U.S.A.

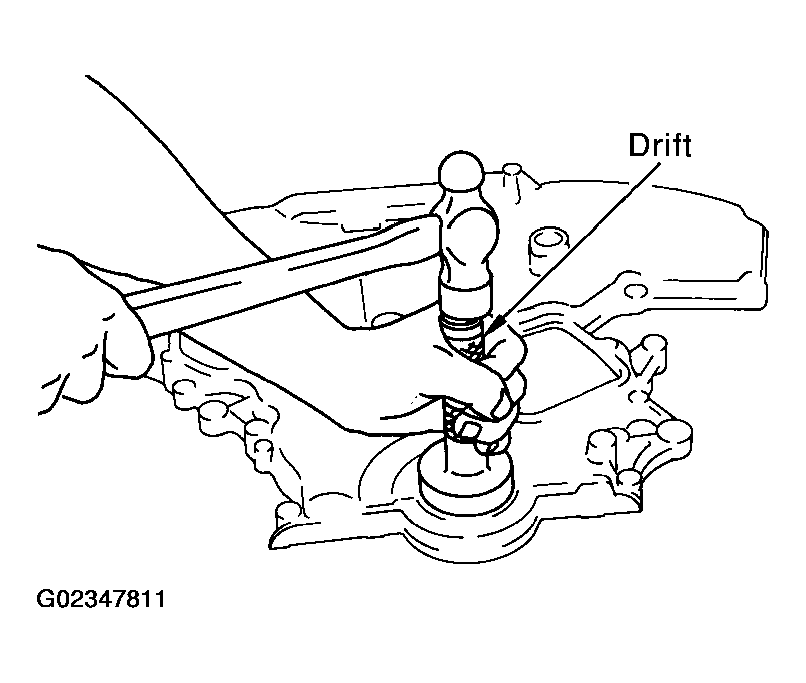

- Using suitable drift, press-fit oil seal until it becomes flush with timing chain case end face.
- Make sure the garter spring is in position and seal lip is not inverted.

  Fig 20: Locating Drift
  Courtesy of NISSAN MOTOR CO., U.S.A.

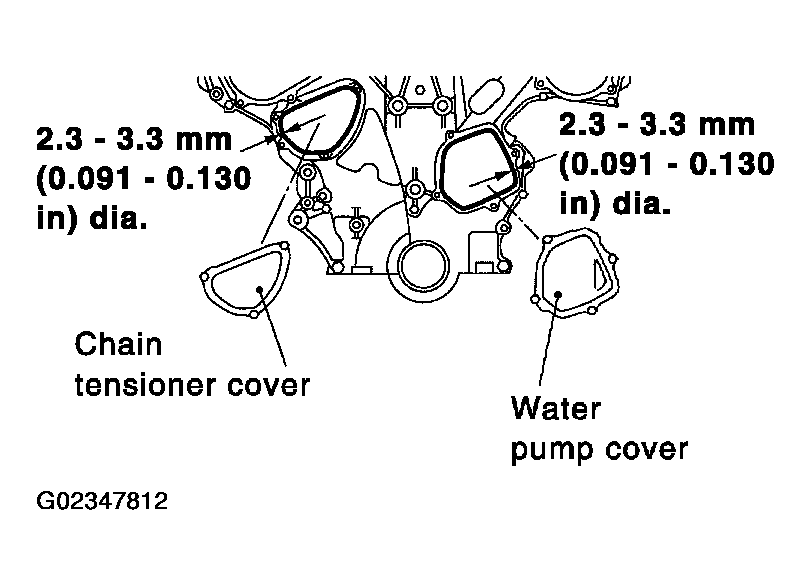

Install water pump cover and chain tensioner cover to front timing chain case.
- Apply a continuous bead of liquid gasket with tube presser [SST: WS39930000 ( - )] to front timing chain case as shown in the figure.
  Use Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

  Fig 21: Application Of Continuous Bead Of Liquid Gasket
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install front timing chain case as follows:

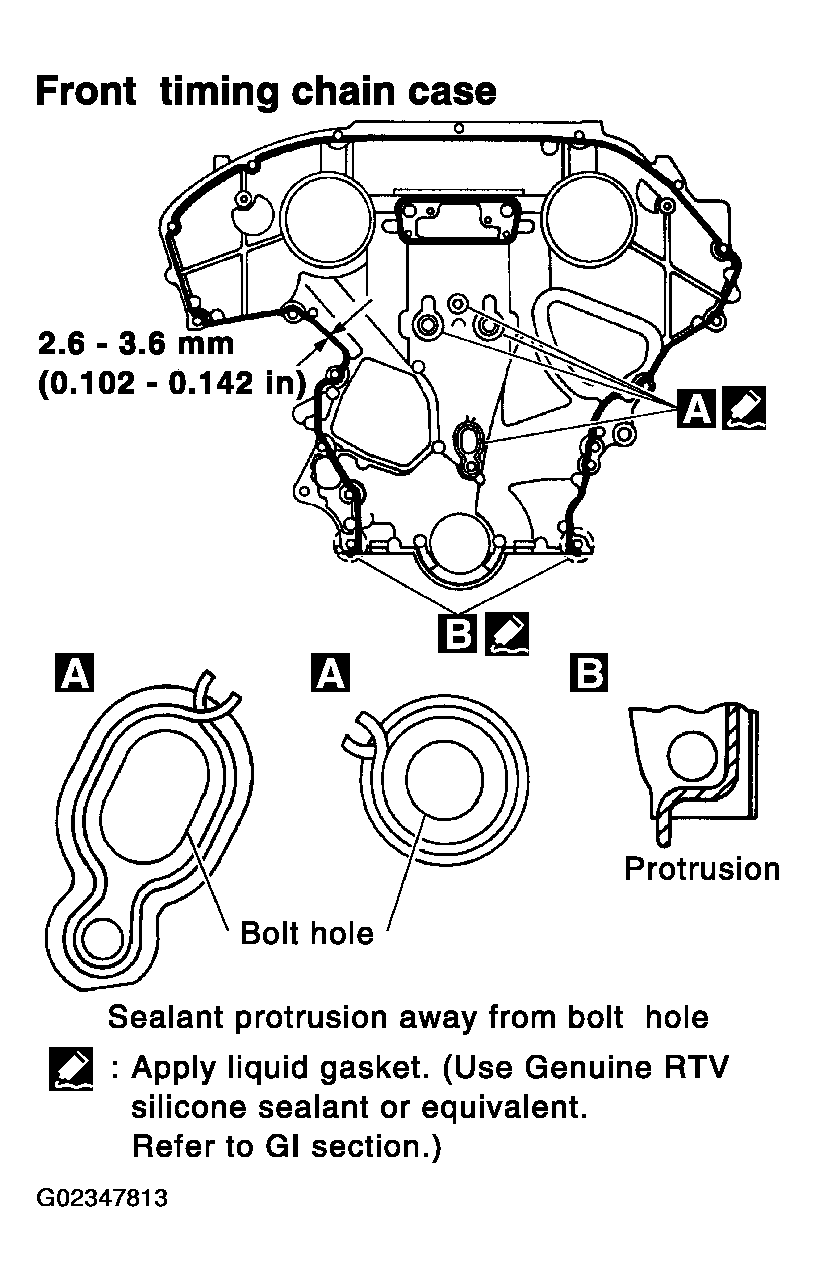

1. Apply liquid gasket to front timing chain case back side as shown in the figure.
  Use Genuine RTV Silicone Sealant or equivalent. Refer to " RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
2. Install dowel pin on rear timing chain case into dowel pin hole on front timing chain case.

  Fig 22: Application Of Continuous Bead Of Liquid Gasket
  Courtesy of NISSAN MOTOR CO., U.S.A.

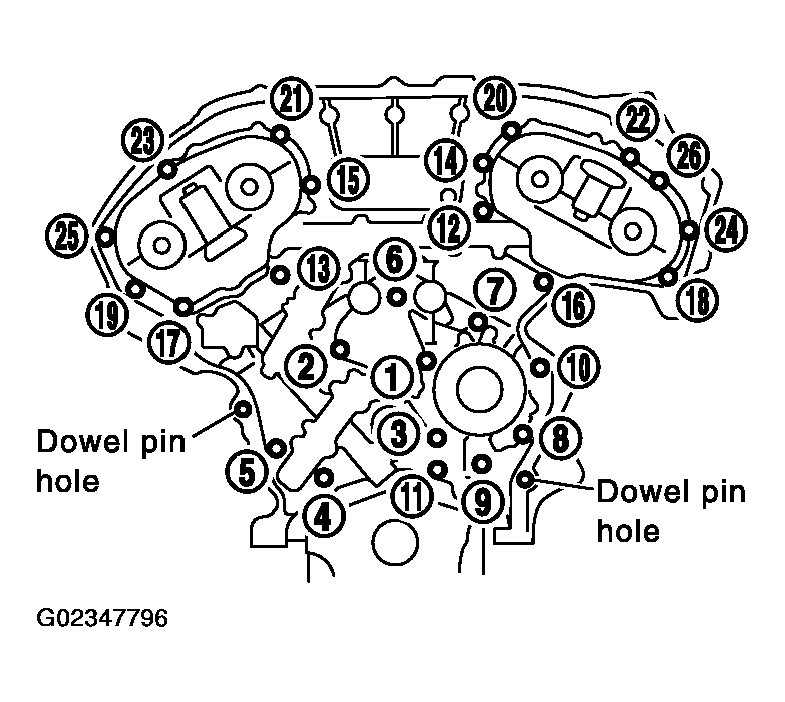

3. Tighten bolts to the specified torque in numerical order as shown in the figure.
  - There are two types of mounting bolts. Refer to the following for locating bolts.
    M8 bolts : 1, 2

    : 25.5 - 31.3 N.m (2.6 - 3.2 kg-m, 19-23 ft-lb)

    M6 bolts : Except the above

    : 11.7 - 13.7 N.m (1.2 - 1.4 kg-m, 9 - 10 ft-lb)

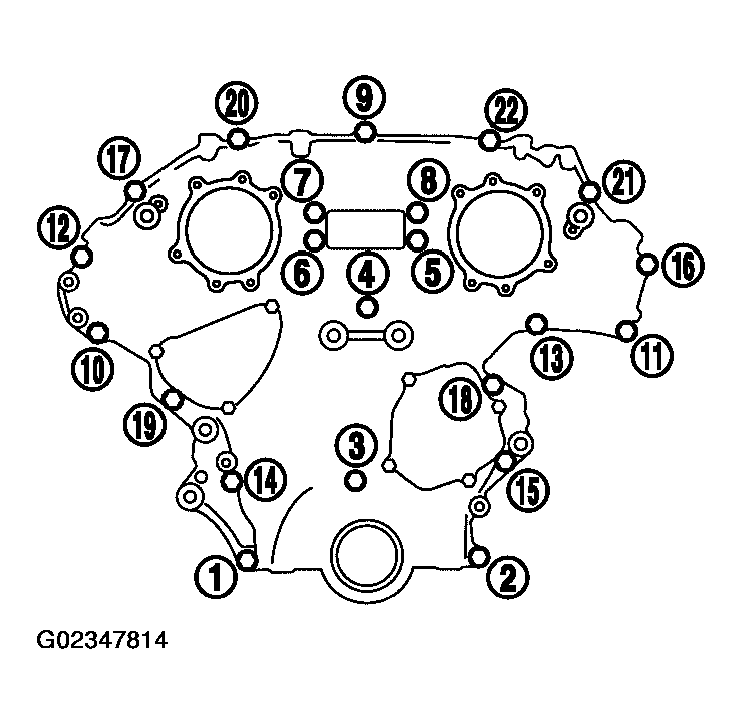

    Fig 23: Tightening Order Of Bolts
    Courtesy of NISSAN MOTOR CO., U.S.A.
4. After all bolts are tightened, retighten them to the specified torque in numerical order shown in the figure.

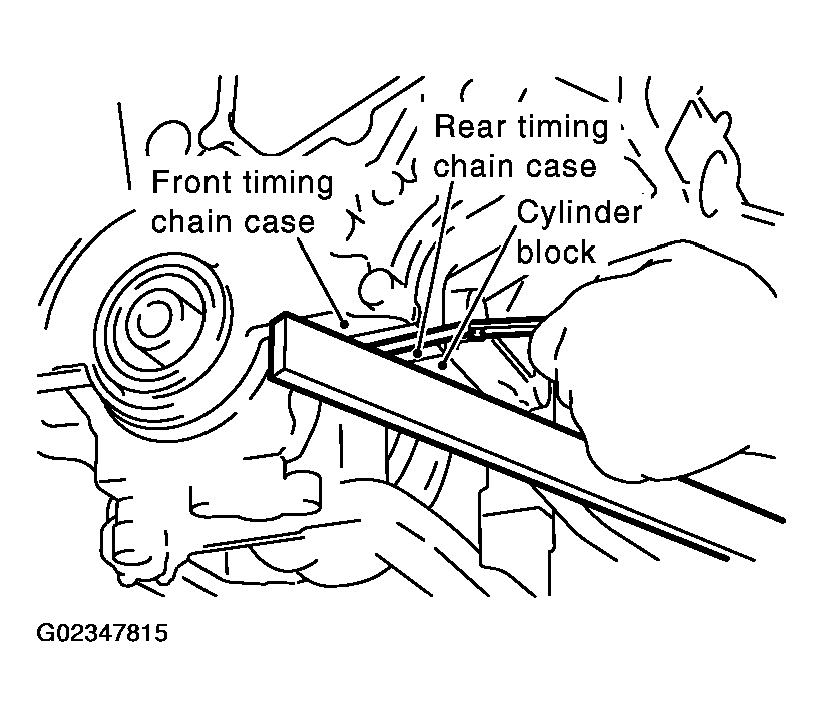

5. After installing front timing chain case, check surface height difference between the following parts on the oil pan (upper) mounting surface.
  Standard

  Front timing chain case to rear timing chain case: -0.14 to 0.14 mm (-0.005 to 0.0055 in)
  - If out of the standard, repeat the installation procedure.

    Fig 24: Checking Surface Height Difference
    Courtesy of NISSAN MOTOR CO., U.S.A.
Install right and left intake valve timing control covers as follows:

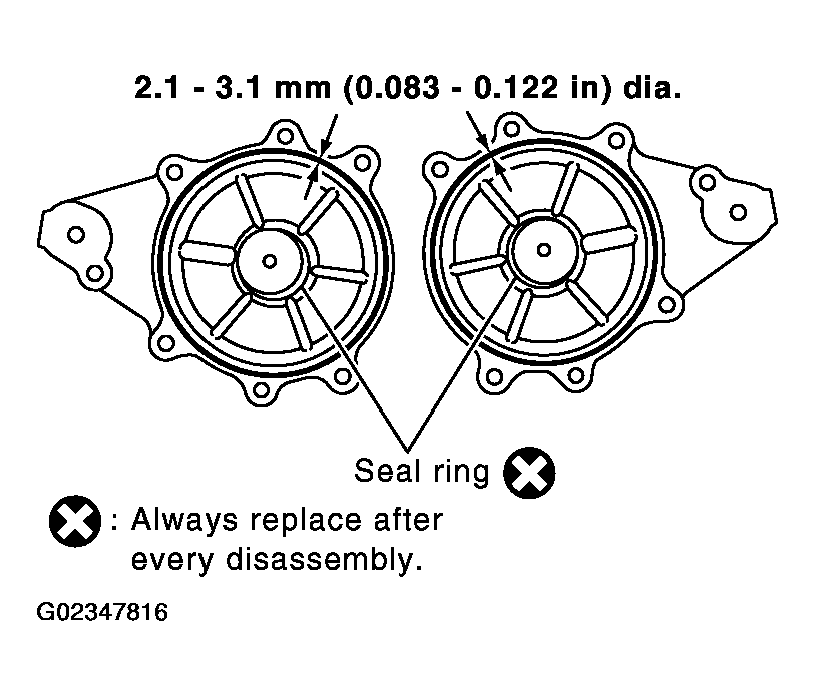

1. Install seal rings in shaft grooves.
2. Apply liquid gasket to intake valve timing control covers as shown in the figure.
  Use Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

  Fig 25: Application Of Liquid Gasket
  Courtesy of NISSAN MOTOR CO., U.S.A.

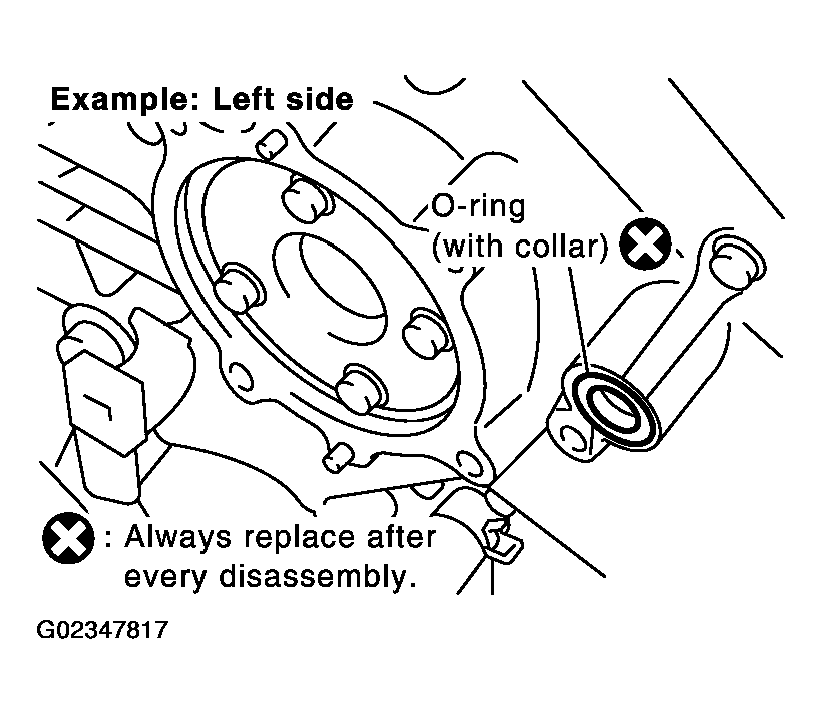

3. Install collared O-ring in front timing chain case oil hole (left and right sides).

  Fig 26: Installation Of Collared O-Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Being careful not to move seal ring from the installation groove, align dowel pins on front timing chain case with holes to install intake valve timing control covers.
5. Tighten bolts in numerical order as shown in the figure.

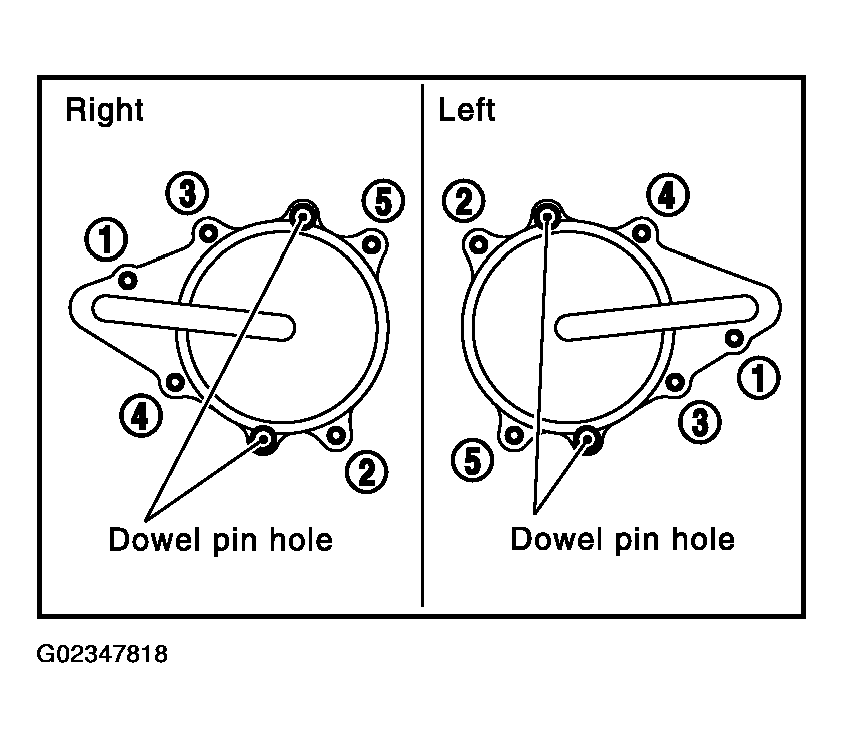

  Fig 27: Tightening Order Of Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pans (upper and lower). Refer to "OIL PAN AND OIL STRAINER ".
Install rocker covers (right and left banks). Refer to "ROCKER COVER ".
Install crankshaft pulley as follows:
1. Fix crankshaft using ring gear stopper [SST: KV10117700 (J44716)].
2. Install crankshaft pulley, taking care not to damage front oil seal.
  - When press-fitting crankshaft pulley with plastic hammer, tap on its center portion (not circumference).
3. Tighten crankshaft pulley bolt.
  : 39.2 - 49.0 N.m (4.0 - 5.0 kg-m, 29 - 36 ft-lb)

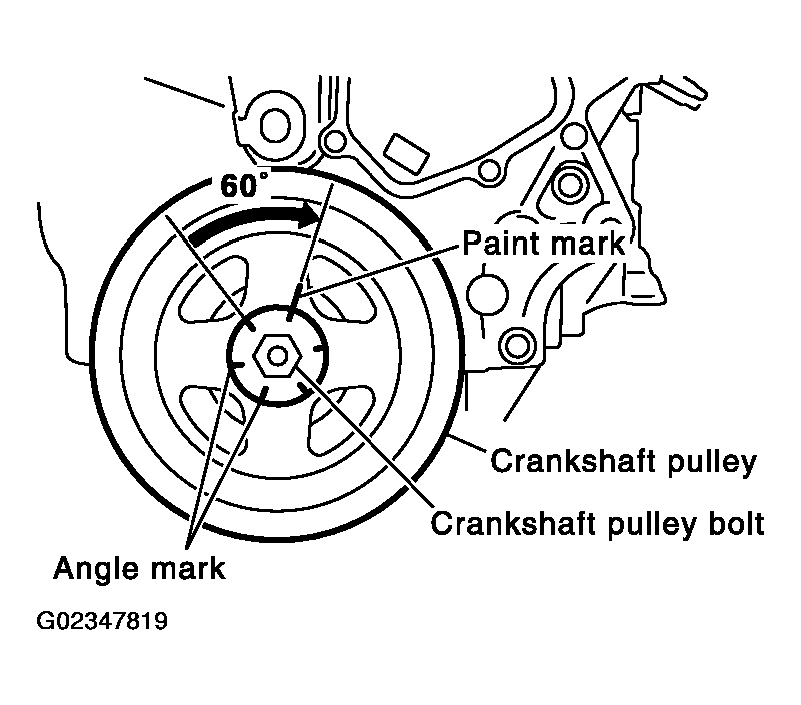

4. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt. Then, further retighten bolt by 60 to 65 degrees [Target: 60 degrees (equivalent to one graduation)].

  Fig 28: Paint Mark Align With Angle Mark
  Courtesy of NISSAN MOTOR CO., U.S.A.
Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to confirm it turns smoothly.
Install in the reverse order of removal after this step.
NOTE: If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in guide may generate a pounding noise during and just after engine start. However, this does not indicate an unusualness. Noise will stop after hydraulic pressure rises.
