Check Fuel Level Sensor Unit And Fuel Pump (Main)

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the resistance between terminals 2 and 5.

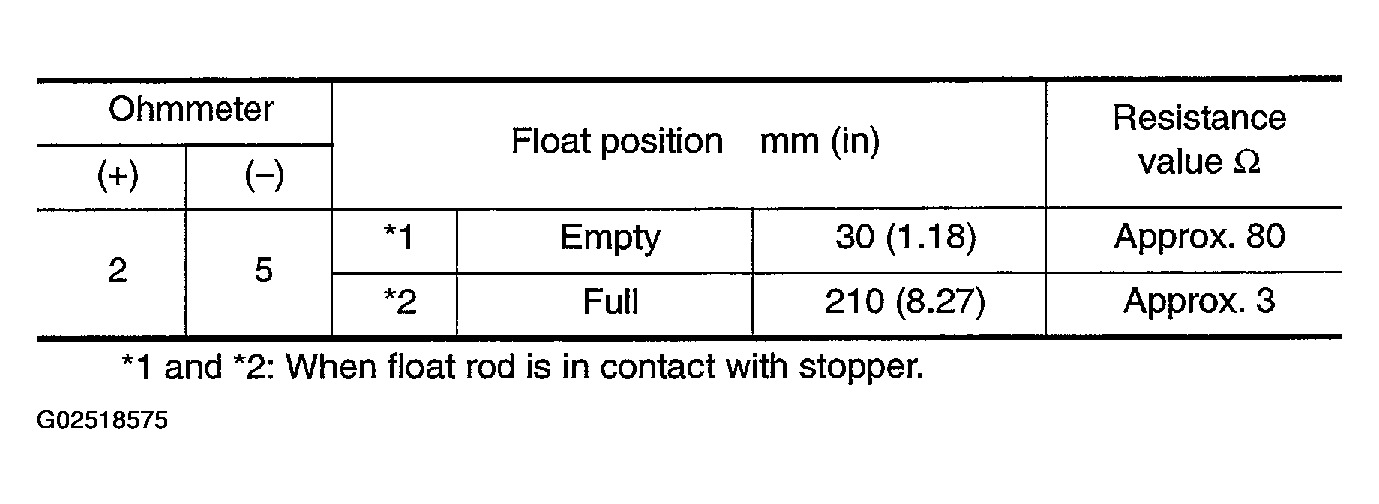

    Fig 1: Terminals 2 And 5 Resistance Reference Chart
    G02518575Courtesy of NISSAN MOTOR CO., U.S.A.

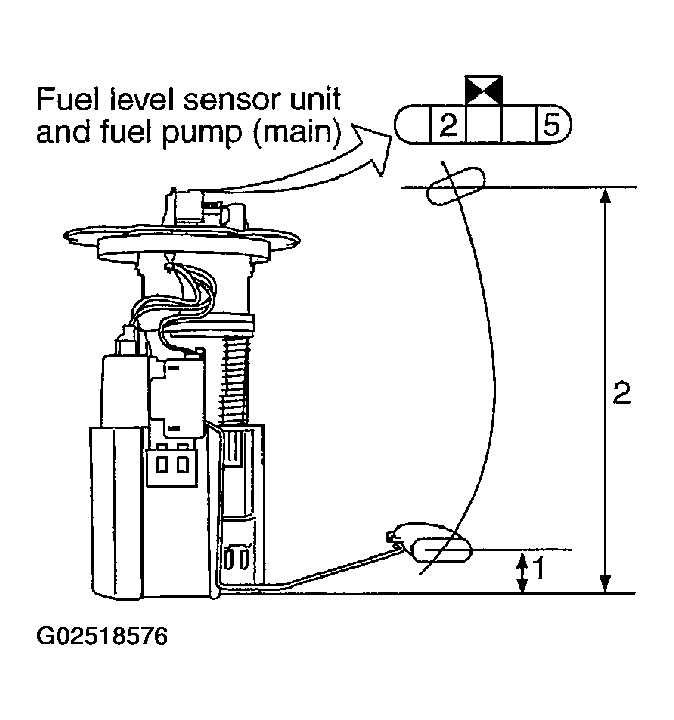

    Fig 2: Checking Resistance Between Terminals 2 And 5
    G02518576Courtesy of NISSAN MOTOR CO., U.S.A.
    • If the results of check is NG, perform as following "Check the fuel level sensor unit and fuel pump (main) harness".
