CAN Communication Unit: Notes

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Go to CAN system, when selecting your car model from the following table.

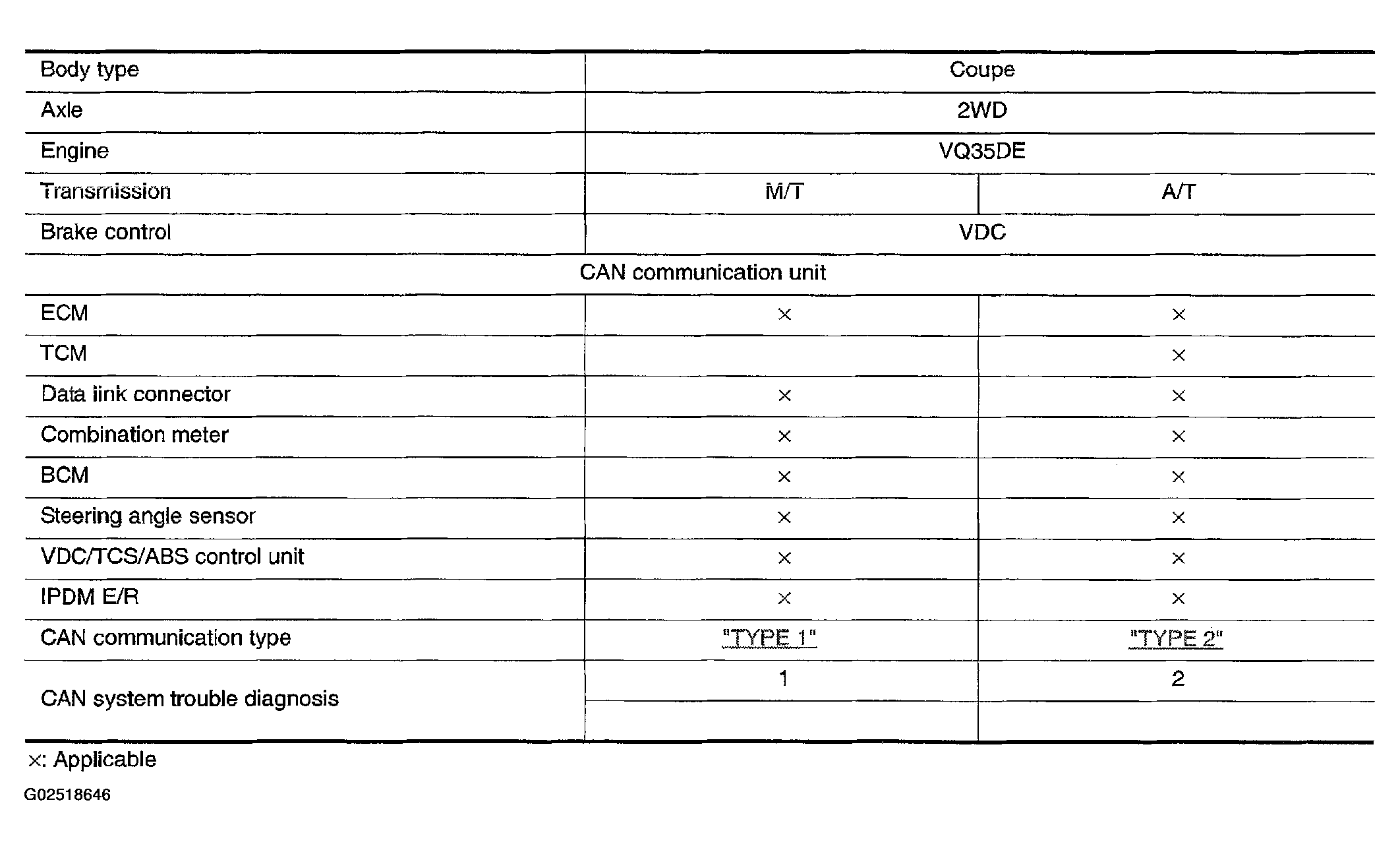

Fig 1: CAN Communication Unit Table

Courtesy of NISSAN MOTOR CO., U.S.A.

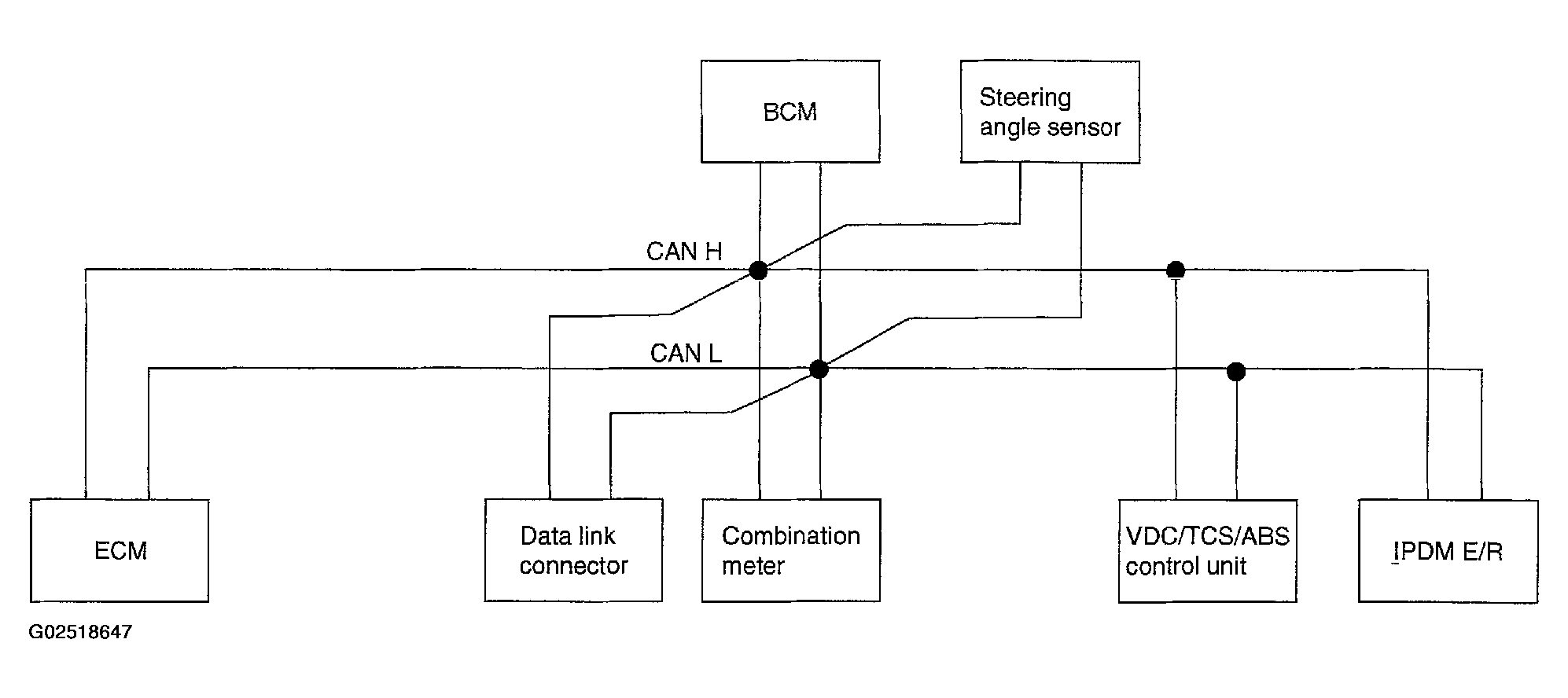

Fig 2: System Diagram - TYPE 1

Courtesy of NISSAN MOTOR CO., U.S.A.
