TAIL LAMP OPERATION CHECK
When lighting switch turned 1st or 2nd position, does tail lamp illuminate?

YES or NO
1. YES: GO TO 2.
2. NO: Go to tail lamp trouble diagnosis. Refer to PARKING, LICENSE PLATE & TAIL LAMPS DO NOT ILLUMINATE .
ILLUMINATION SIGNAL CHECK
1. Check voltage between NAVI control unit and ground.

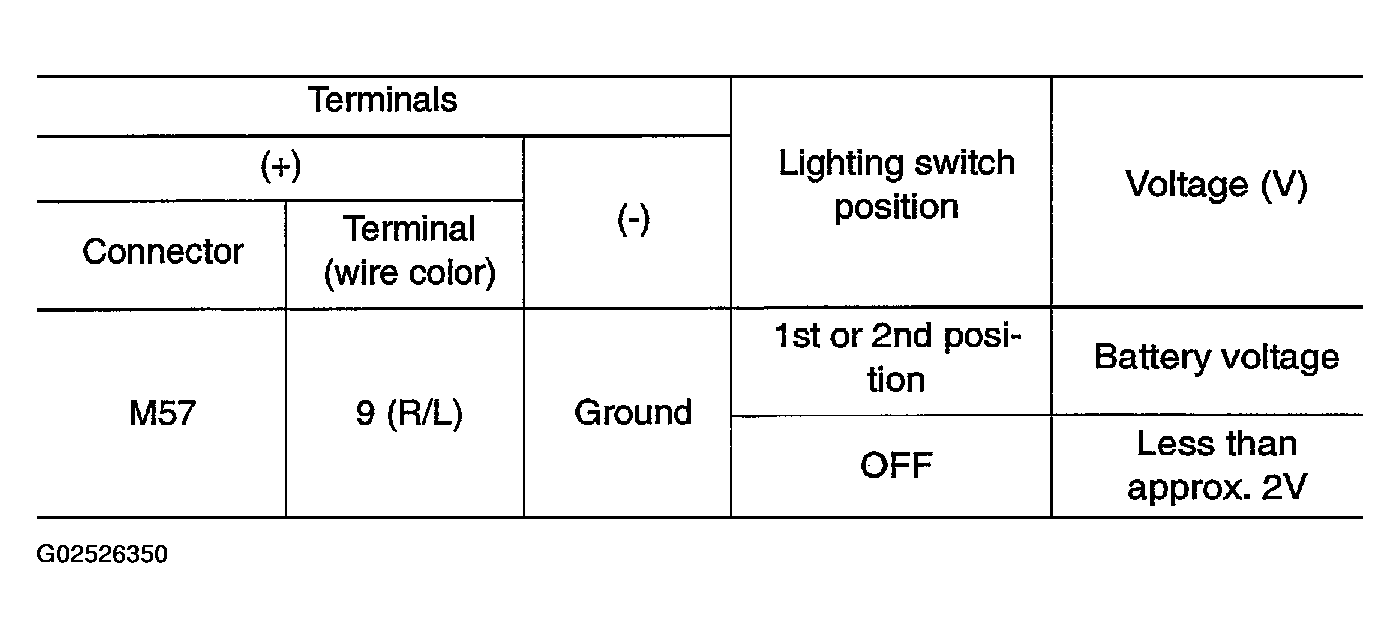

  Fig 1: NAVI Control Unit And Ground Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Checking Voltage Between NAVI Control Unit And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace NAVI control unit.
2. NG: Check harness for open or short between NAVI control unit and IPDM E/R.
