Terminals And Reference Value Of Combination Meter (With Navigation System)
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

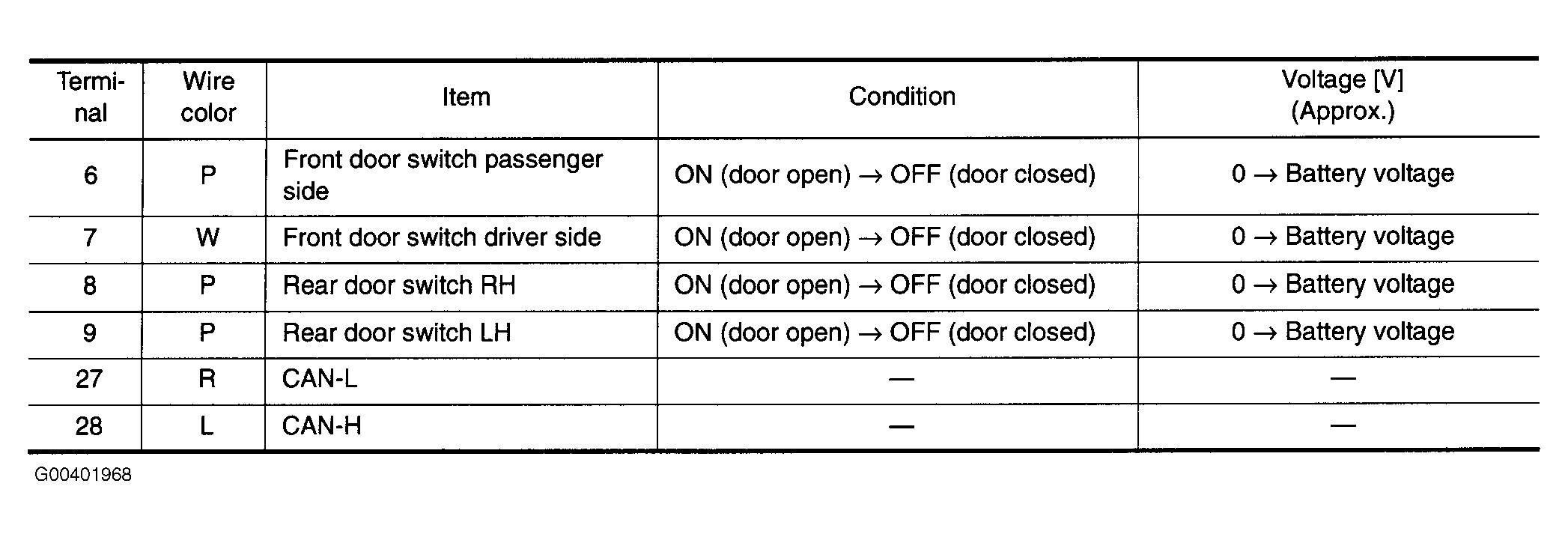

Fig 1: Terminal And Reference Values Of Combination
