CONSULT-II Inspection Procedure

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

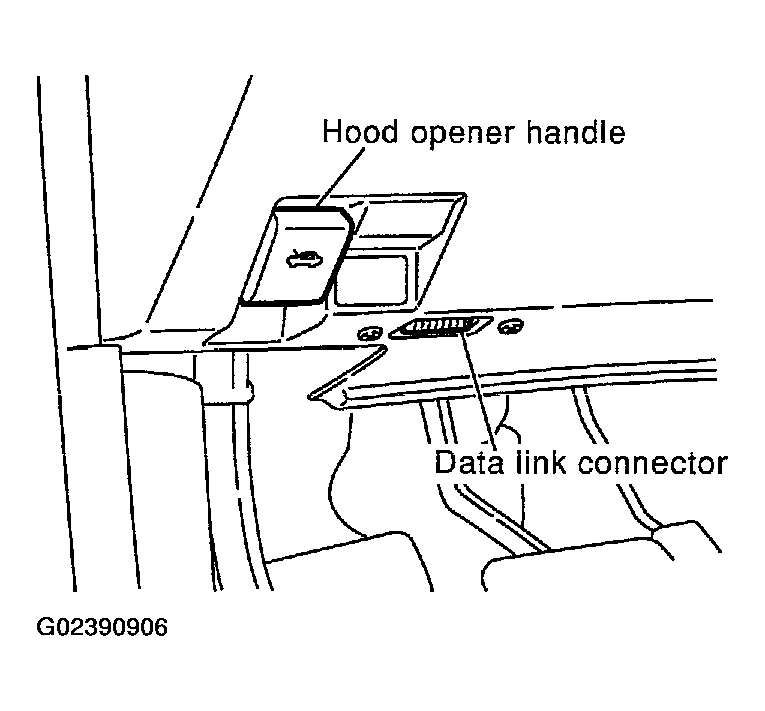

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START.

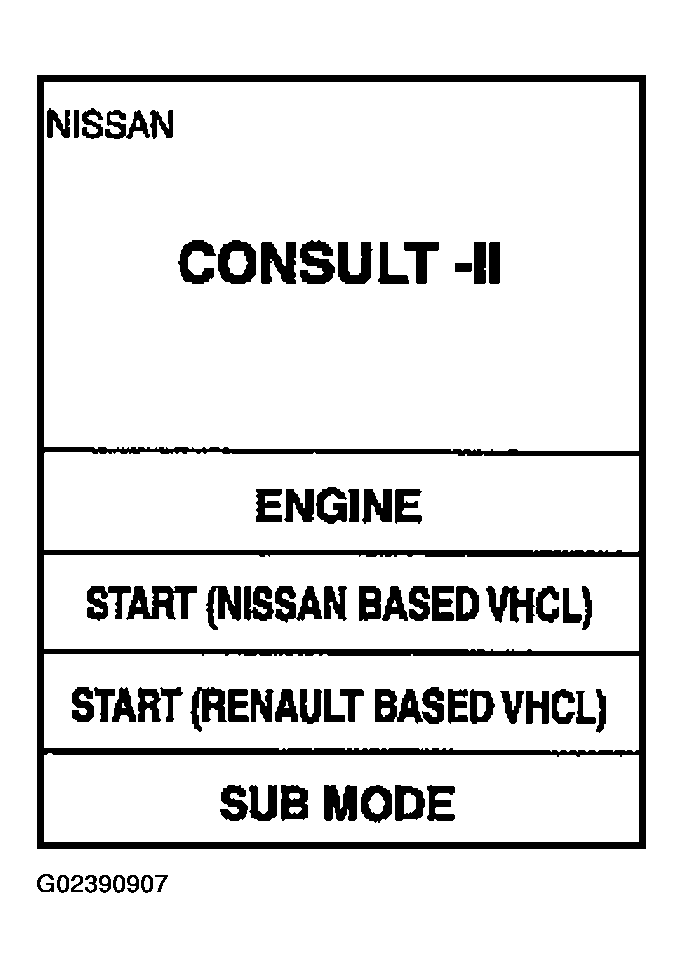

Fig 2: Identifying CONSULT-II Main Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch BCM on SELECT SYSTEM screen.
If BCM is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

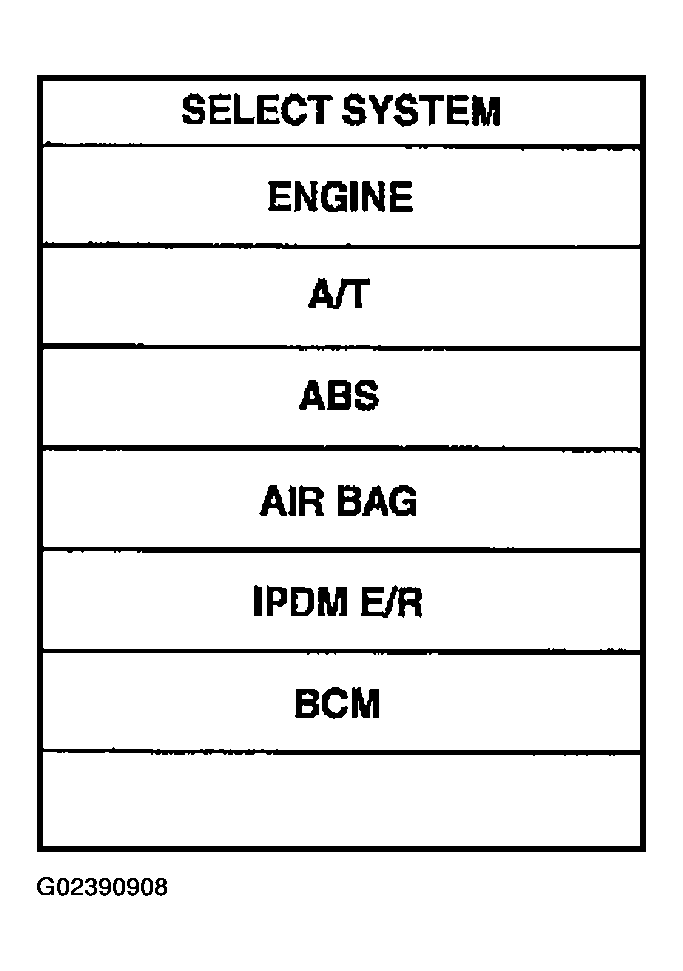

Fig 3: Displaying CONSULT-II Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch DOOR LOCK on SELECT TEST ITEM screen.

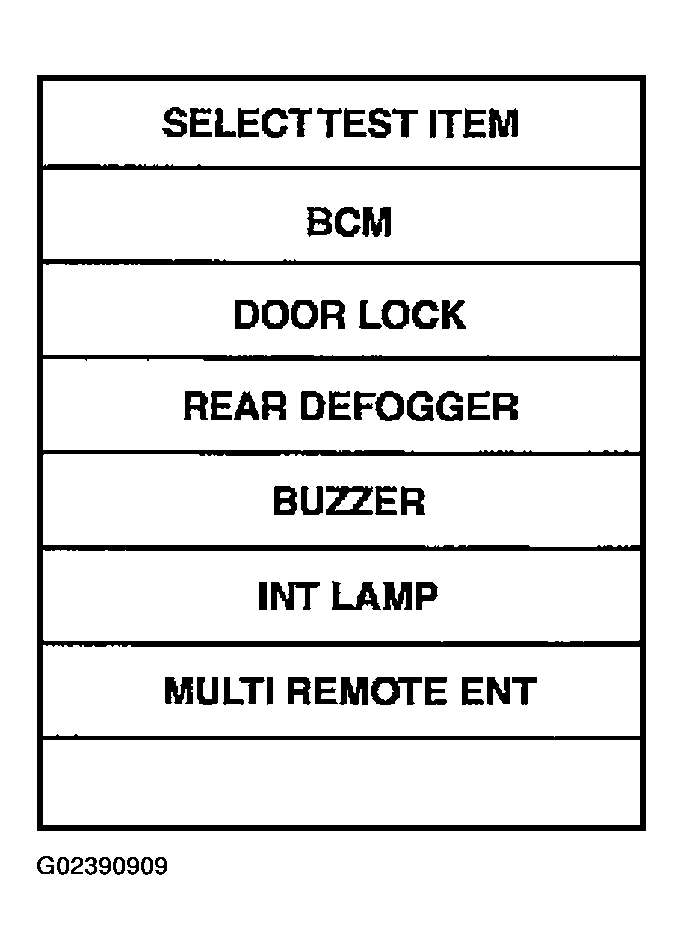

Fig 4: Displaying CONSULT-II SELECT TEST ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR, ACTIVE TEST and WORK SUPPORT are available.

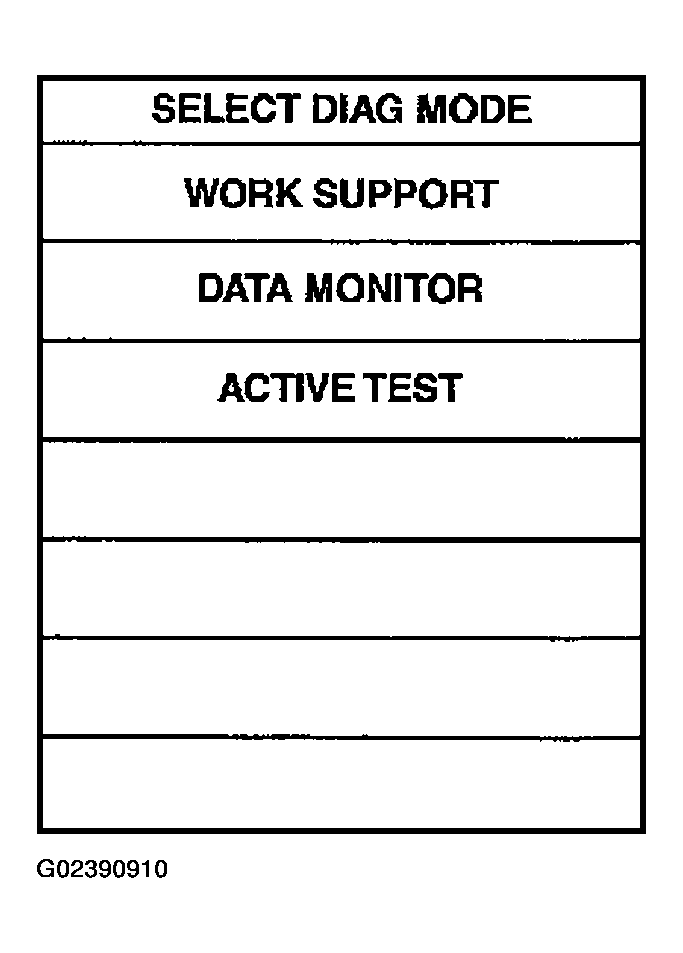

Fig 5: Displaying CONSULT-II SELECT DIAG MODE Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
