Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

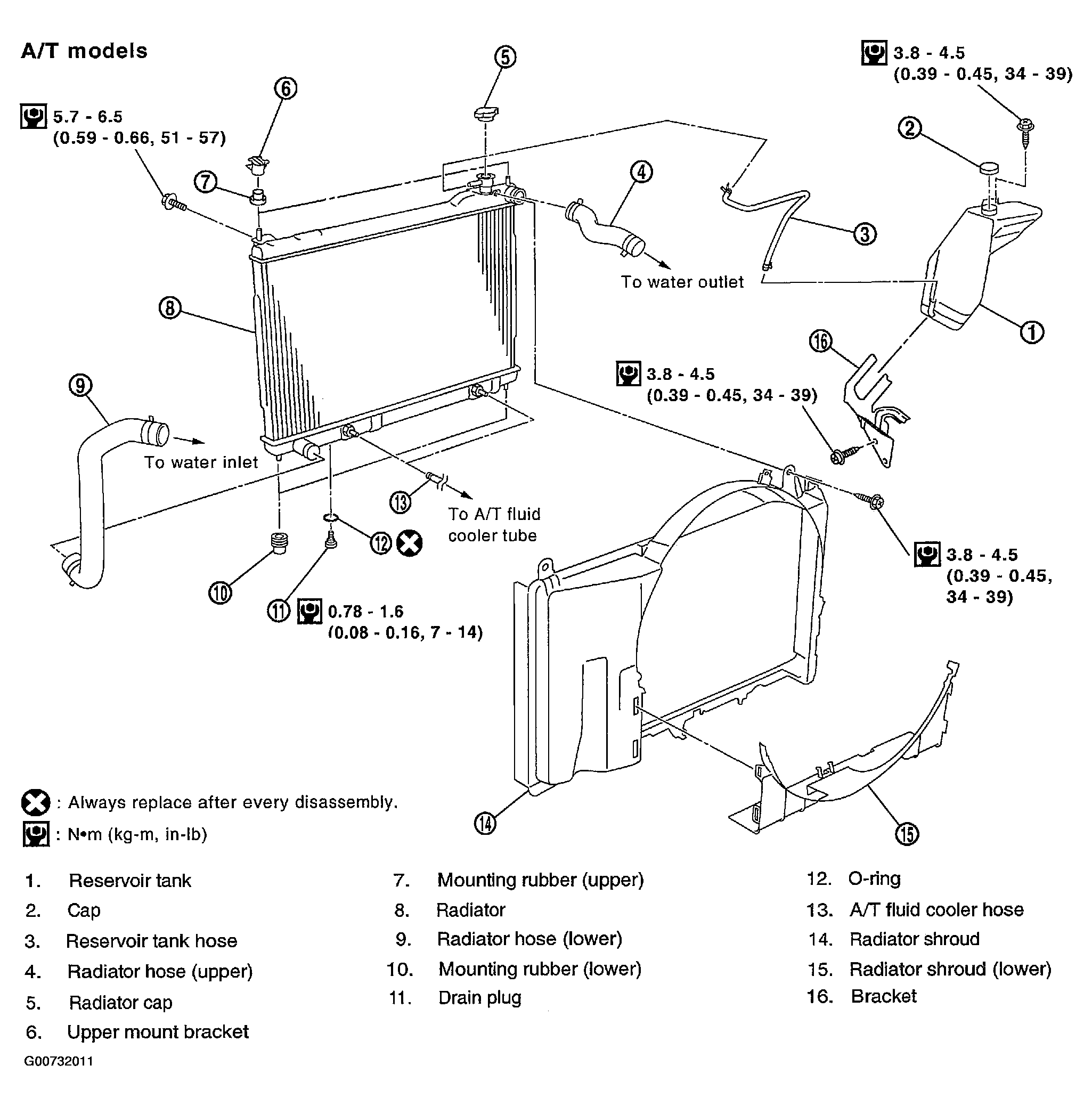

Fig 1: Removing and Installing Of Radiator Assembly - A/T Model

Courtesy of NISSAN MOTOR CO., U.S.A.

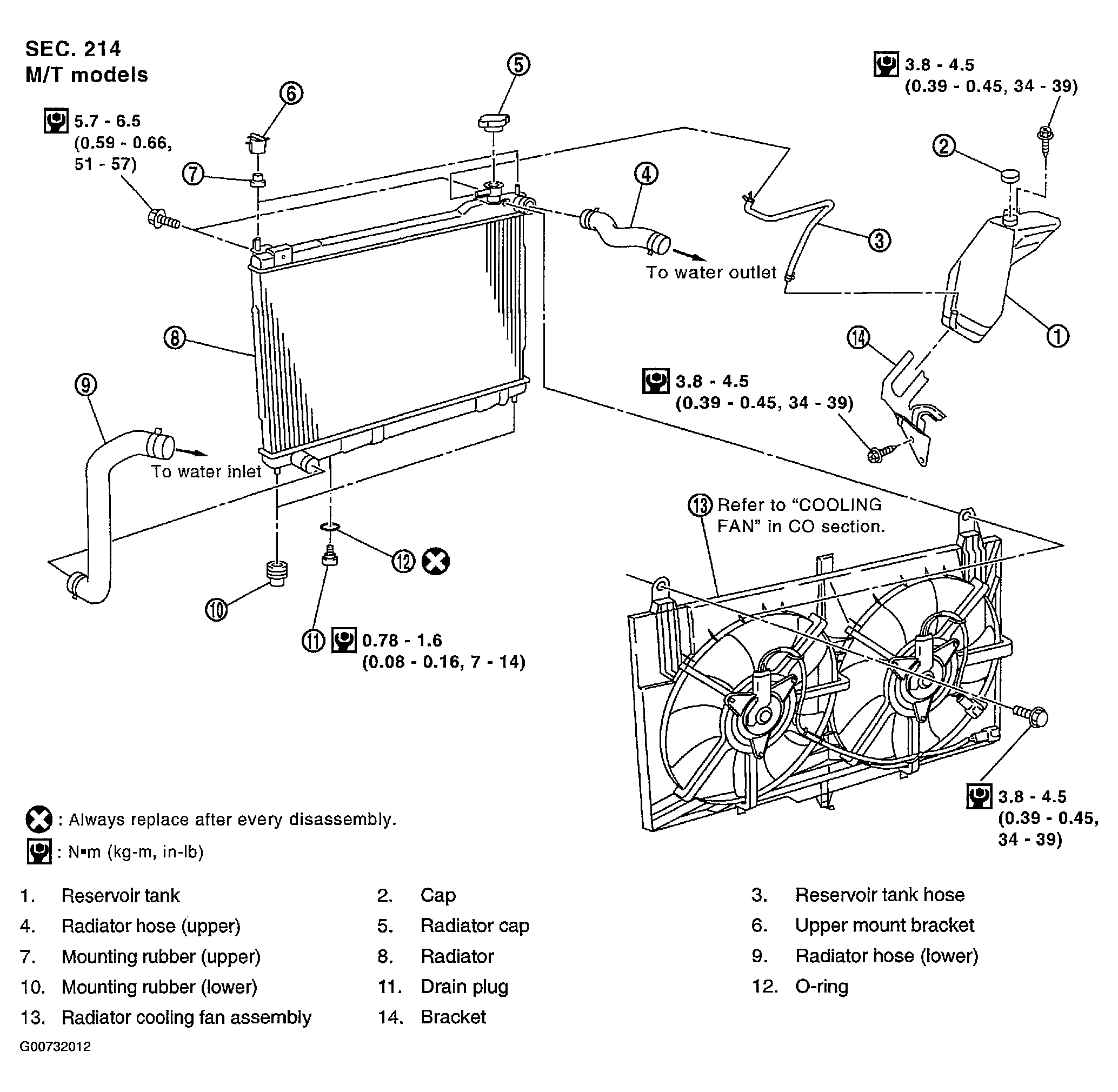

Fig 2: Removing and Installing Of Radiator Assembly - M/T Model

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Do not remove radiator cap when engine is hot. Serious burns could occur from high-pressure engine coolant escaping from radiator.
