Final Drive: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Attach side gear thrust washers to side gears, then install pinion mate thrust washers and pinion mate gears in place.
- Apply ATF to any parts.

  Fig 1: Assembly (1 Of 8)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Insert pinion mate shaft.
- When inserting, be careful not to damage pinion mate thrust washers.

  Fig 2: Assembly (2 Of 8)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between side gear and differential case with washers following the procedure below:
1. Set Tool and dial indicator on side gear.

  Fig 3: Assembly (3 Of 8)
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Move side gear up and down to measure dial indicator deflection. Always measure indicator deflection on both side gears.
  Clearance between side gear and differential case with washer: 0.1 - 0.2 mm (0.004 - 0.008 in)
3. If not within specification, adjust clearance by changing thickness of differential side gear thrust washers.
  Differential side gear "thrust washers: Refer to "DIFFERENTIAL SIDE GEAR THRUST WASHERS ".

  Fig 4: Assembly (4 Of 8)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install lock pin.
- Make sure that lock pin is flush with case.

  Fig 5: Assembly (5 Of 8)
  Courtesy of NISSAN MOTOR CO., U.S.A.

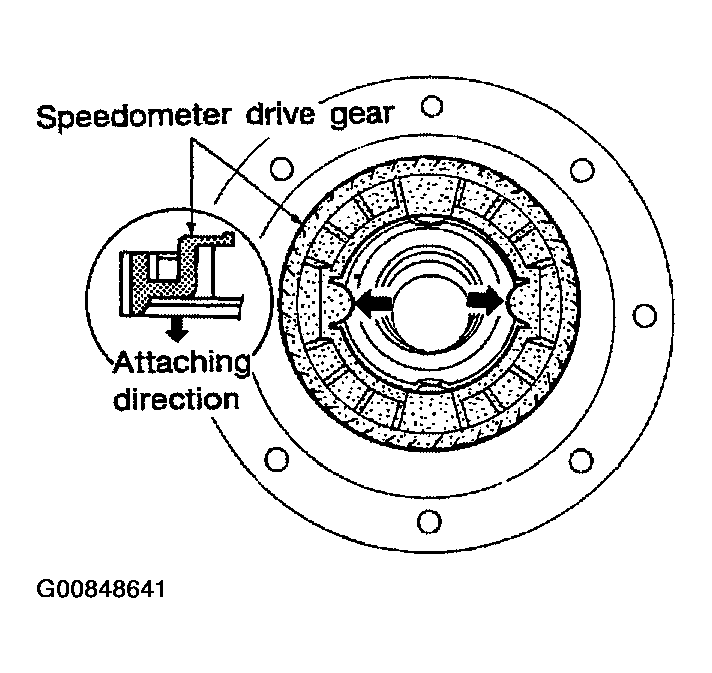

Install speedometer drive gear on differential case.
- Align the projection of speedometer drive gear with the groove of differential case.

  Fig 6: Assembly (6 Of 8)
  Courtesy of NISSAN MOTOR CO., U.S.A.

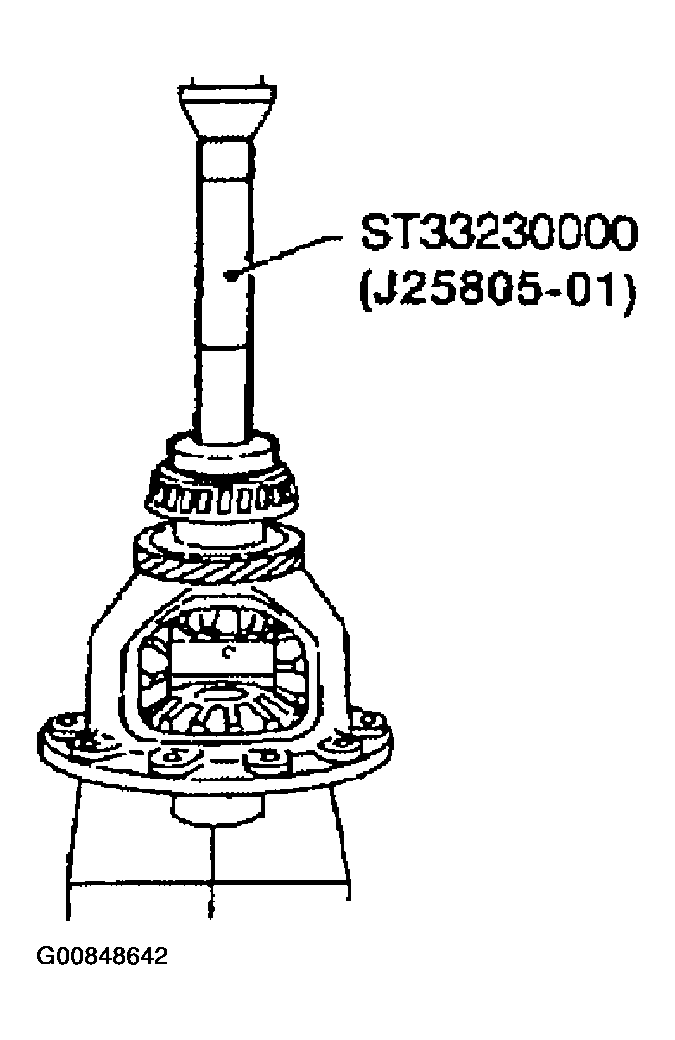

- Press on differential side bearings.

  Fig 7: Assembly (7 Of 8)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install final gear and tighten fixing bolts in a crisscross pattern. Tighten final gear bolts to the specified torque. Refer to "COMPONENTS ".

Fig 8: Assembly (8 Of 8)
Courtesy of NISSAN MOTOR CO., U.S.A.
