3. Check Ho2S2 Ground Circuit For Open And Short

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect heated oxygen sensor 2 harness connector.

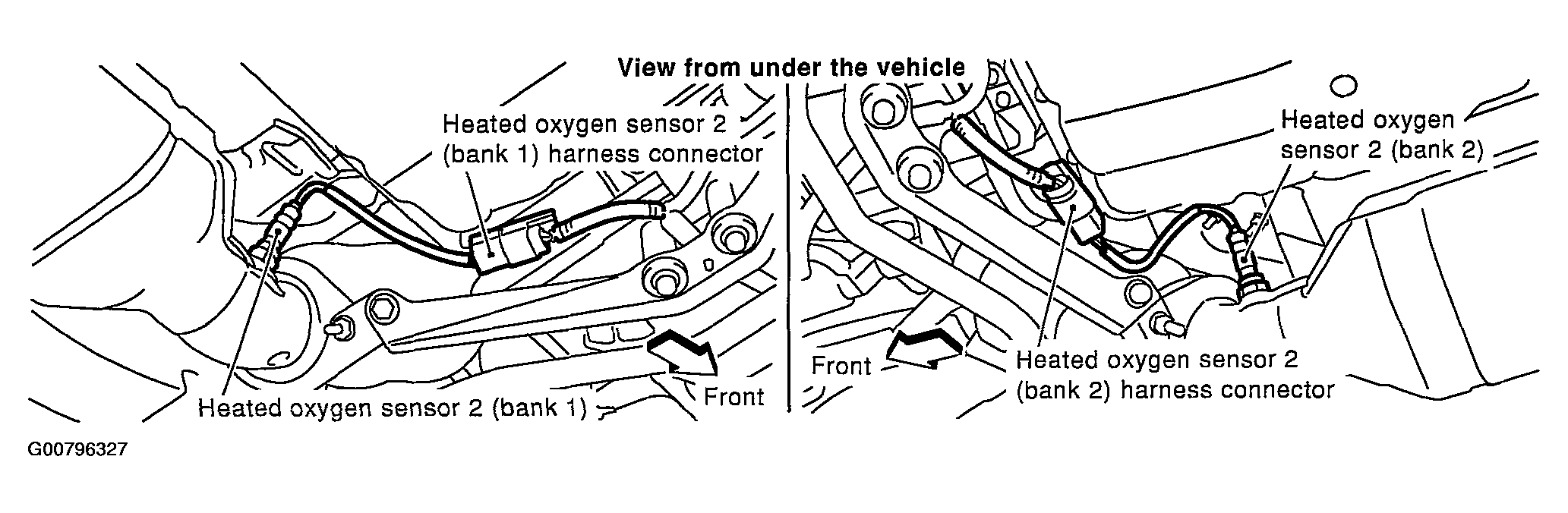

    Fig 1: Identifying HO2S2 Harness Connector
    G00796327Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check harness continuity between HO2S2 terminal 4 and ground.

    Refer to WIRING DIAGRAM .

    Continuity should exist.

  4. Also check harness for short to power.

OK or NG

  1. OK: GO TO 55. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT .
  2. NG: GO TO 4.
