Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install oil pump.
  2. Install oil pump drive spacer as follows.
    1. When inserting oil pump drive spacer, align the crankshaft key and the flat face of inner rotor.
      • If they are not aligned, rotate inner rotor by hand.
    2. Make sure that the each part is aligned. Using a tool such as a plastic hammer, tap lightly until it reaches the end.
  3. Install in the reverse order of removal.

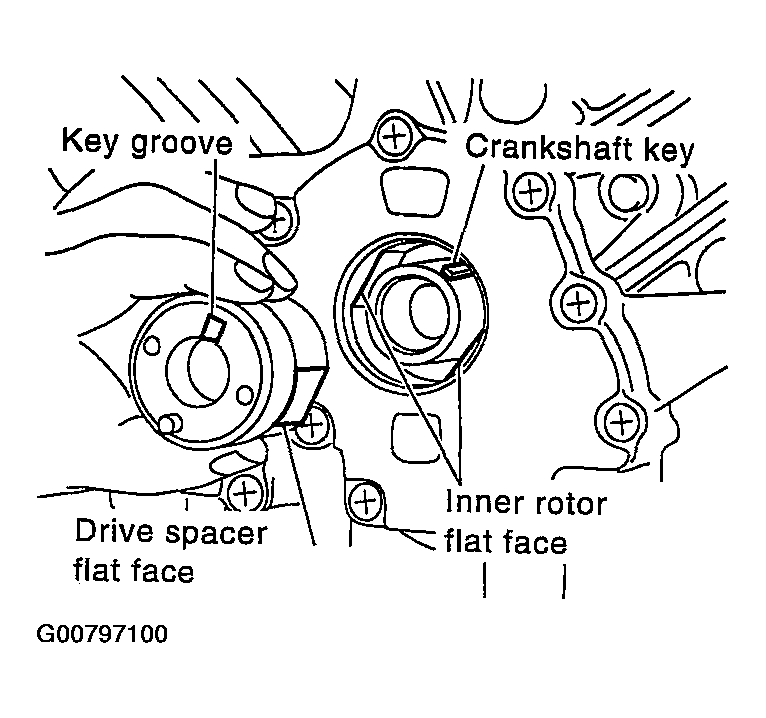

    Fig 1: Inserting Oil Pump Drive Spacer & Aligning Crankshaft Key To Groove
    G00797100Courtesy of NISSAN MOTOR CO., U.S.A.
