Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain engine coolant from radiator. Refer to CHANGING ENGINE COOLANT
    CAUTION:
    • Perform when the engine is cold.
    • Do not spill engine coolant on drive belts.
  2. Remove cooling fan shroud. Refer to REMOVAL AND INSTALLATION
  3. Remove A/T oil cooler hoses.
    • Install blind plug to avoid leakage of A/T oil.
  4. Remove bolts of both right and left end of radiator core (2 bolts for each).
  5. Lift A/C condenser up approximately 2 cm (0.79 in).

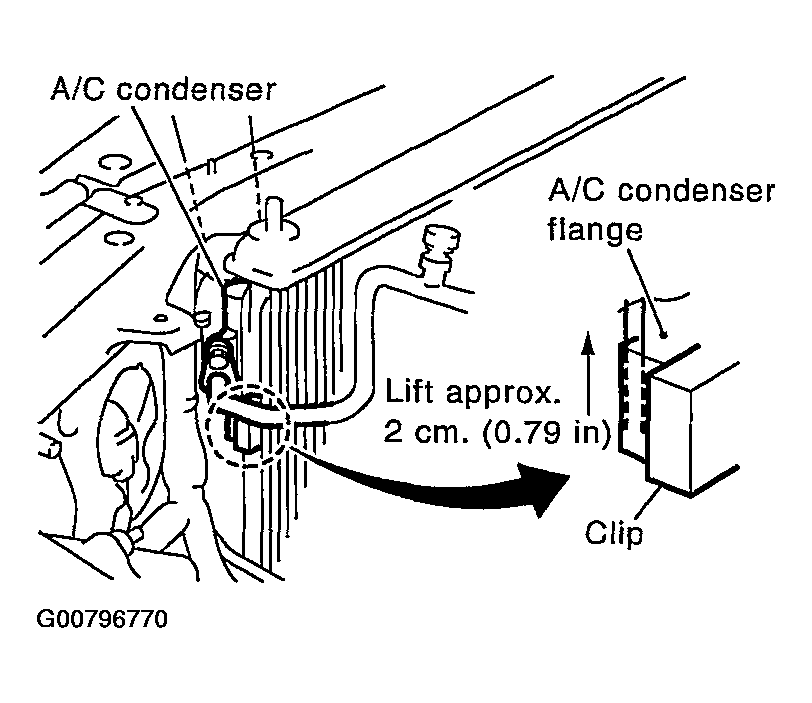

    Fig 1: Locating A/C Condenser & A/C Condenser Flange
    G00796770Courtesy of NISSAN MOTOR CO., U.S.A.

    Remove the clips from the right and left flange parts of A/C condenser.

    CAUTION: To avoid putting a load on A/C piping, be careful not to lift too much.
  6. Lift up and remove radiator.
    CAUTION:
    • Do not damage or scratch radiator core when removing.
    • After removing radiator, fix A/C condenser on the vehicle side with a rope or similar means. This is to prevent a load being applied to A/C piping.
