Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Remove fan.
CAUTION:
- Reverse screws are used for the fan attachment nuts. When removing or attaching, turn the nut the opposite way as for a normal screw.

  Fig 1: Assembling & Disassembling Cooling Fan
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Do not remove balancer clip from fan.

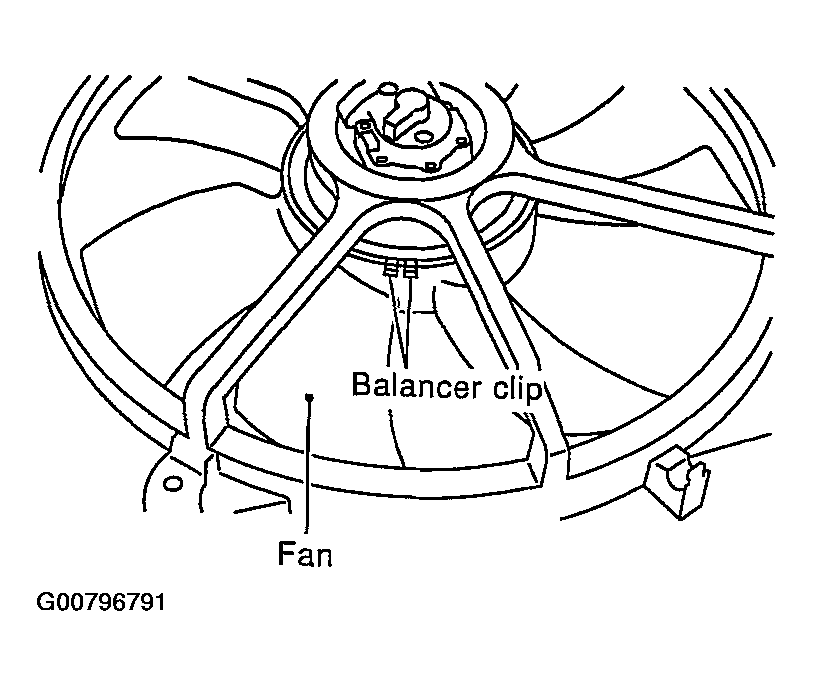

  Fig 2: Locating Cooling Fan Balancer Clip
  Courtesy of NISSAN MOTOR CO., U.S.A.
- In case balancer clip is removed, make an alignment mark for the installation position on the fan side.
Remove cooling fan motor from cooling fan shroud.
