Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heater & cooling unit. Refer to HEATER & COOLING UNIT ASSEMBLY .
  2. Remove evaporator from heater & cooling unit.
  3. Separate heater & cooling unit case.
  4. Remove the intake sensor.

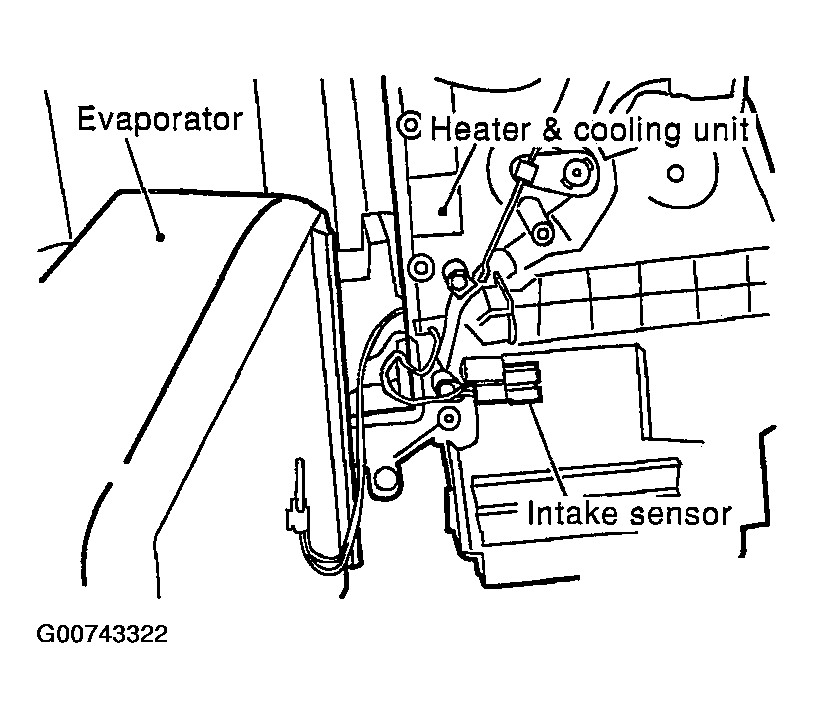

    Fig 1: Identifying Intake Sensor & Components
    G00743322Courtesy of NISSAN MOTOR CO., U.S.A.
