1. Check Vacuum Hose

WARNING: This page is about a different car, the 2004 Infiniti M45 and 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check vacuum hose (between ASCD actuator and ASCD pump) for breakage, cracks or fracture.

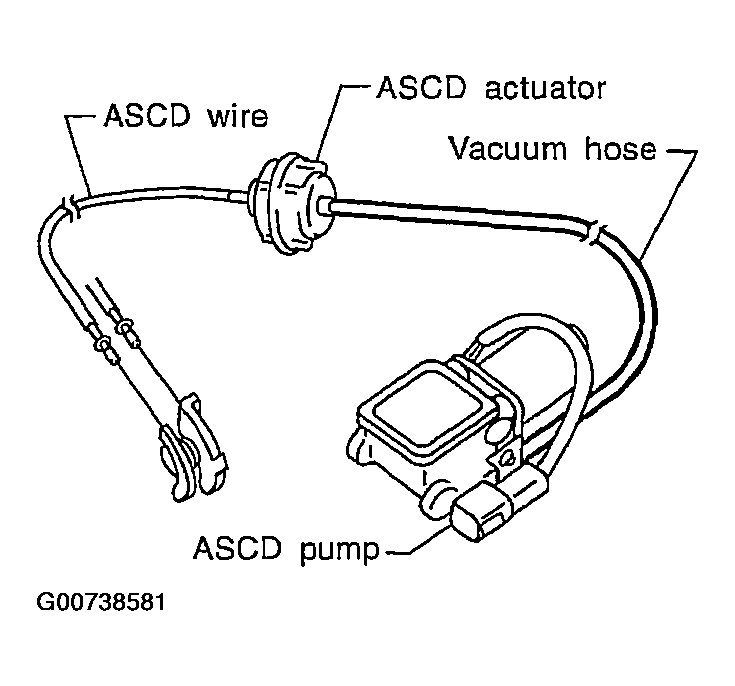

Fig 1: Inspecting Vacuum Hose
G00738581Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 2.
  2. NG: Repair or replace vacuum hose.
