Symptom Chart

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.

CAUTION:

If any malfunction occurs in the RE5R05A transmission, replace the transmission assembly.
Condition for "on vehicle" only

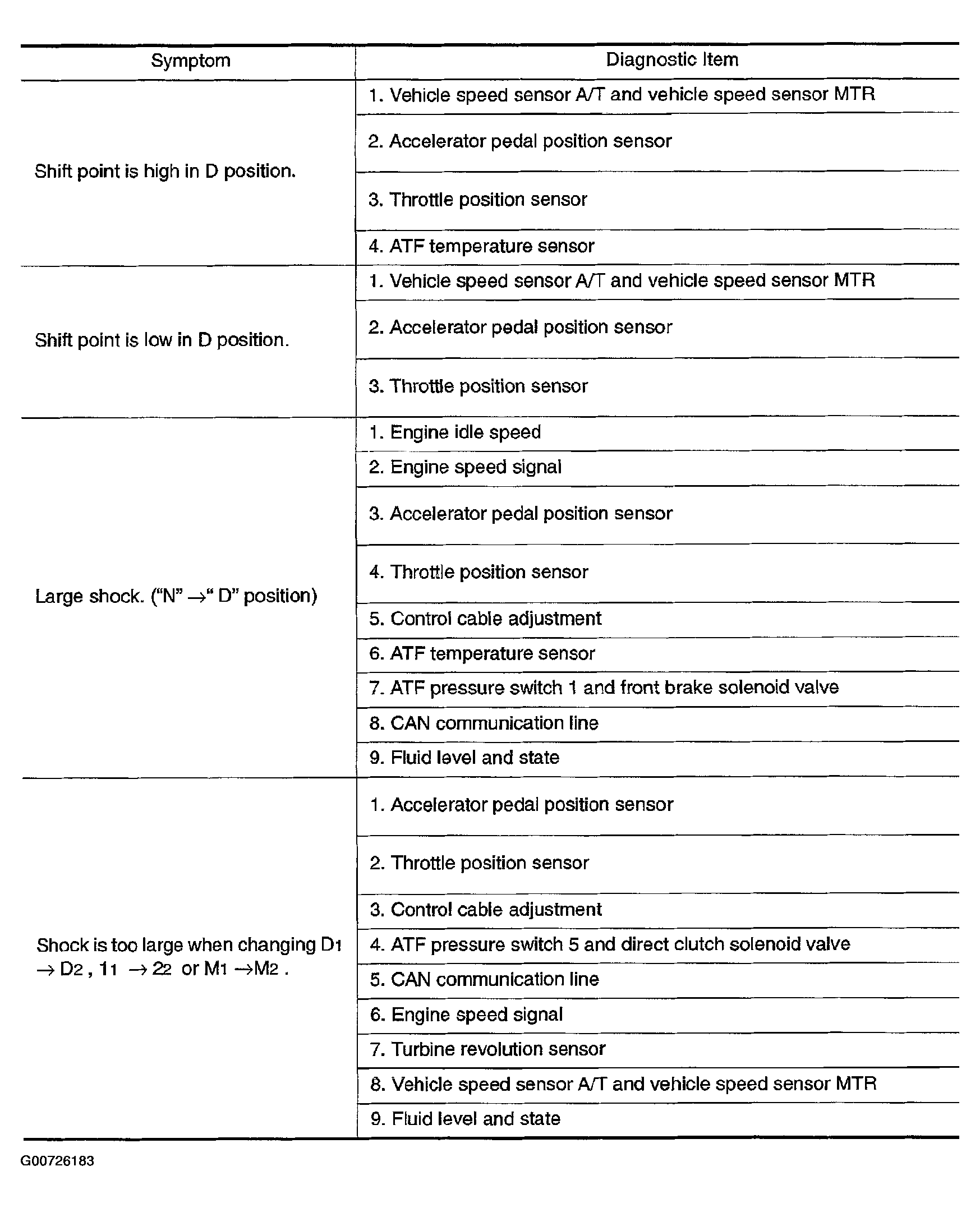

Fig 1: Symptom Chart (1 Of 9)

G00726183

Courtesy of NISSAN MOTOR CO., U.S.A.

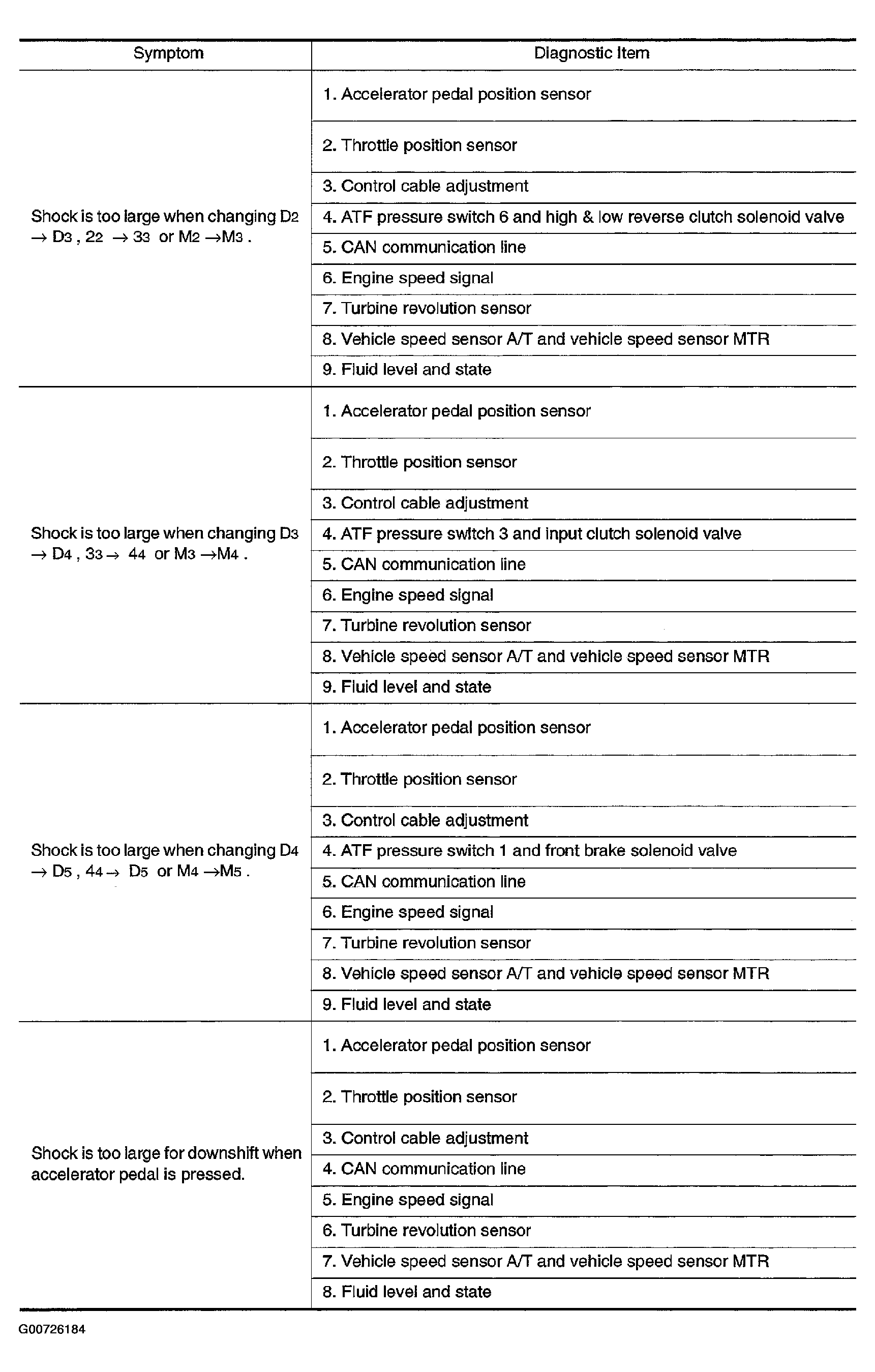

Fig 2: Symptom Chart (2 Of 9)

G00726184

Courtesy of NISSAN MOTOR CO., U.S.A.

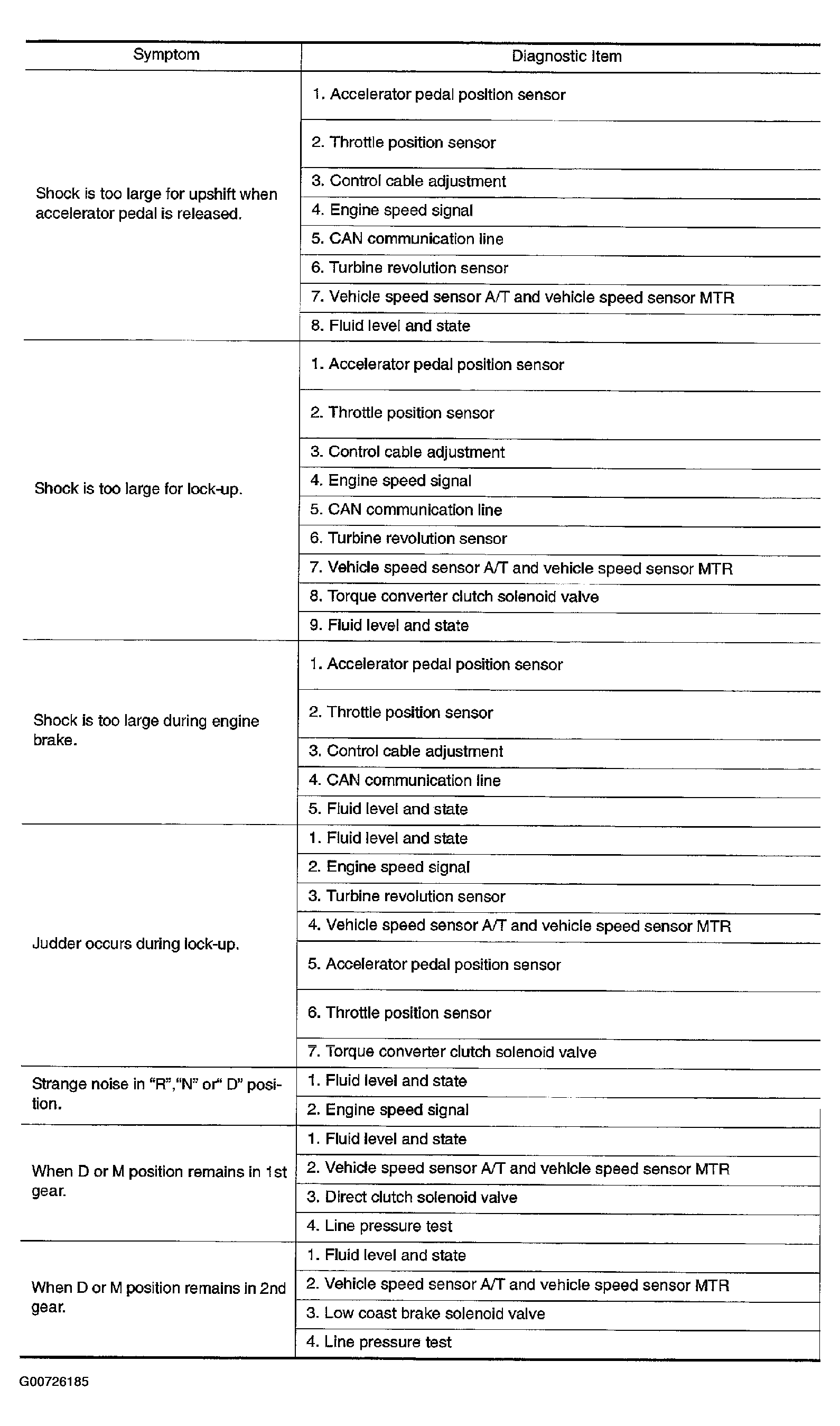

Fig 3: Symptom Chart (3 Of 9)

G00726185

Courtesy of NISSAN MOTOR CO., U.S.A.

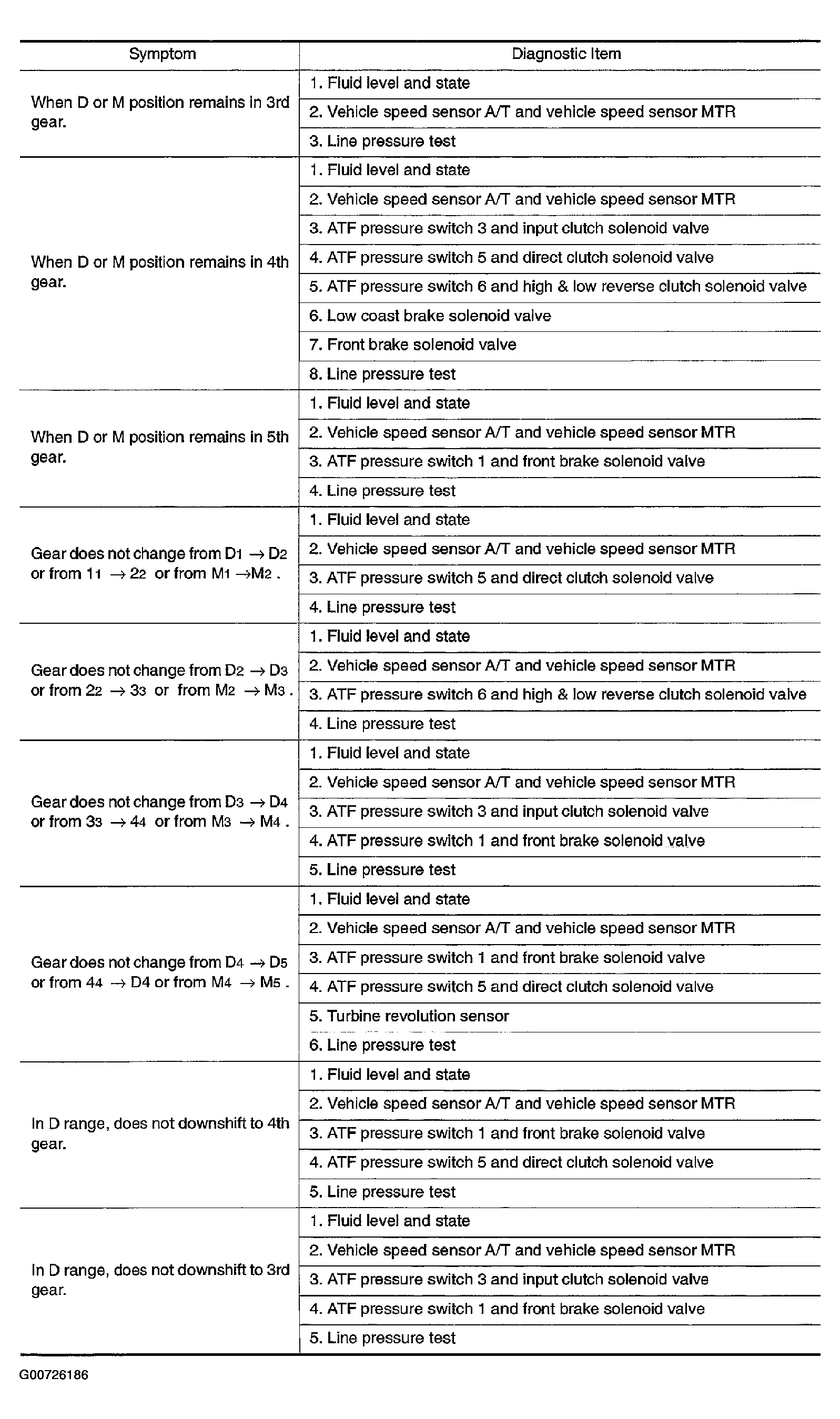

Fig 4: Symptom Chart (4 Of 9)

G00726186

Courtesy of NISSAN MOTOR CO., U.S.A.

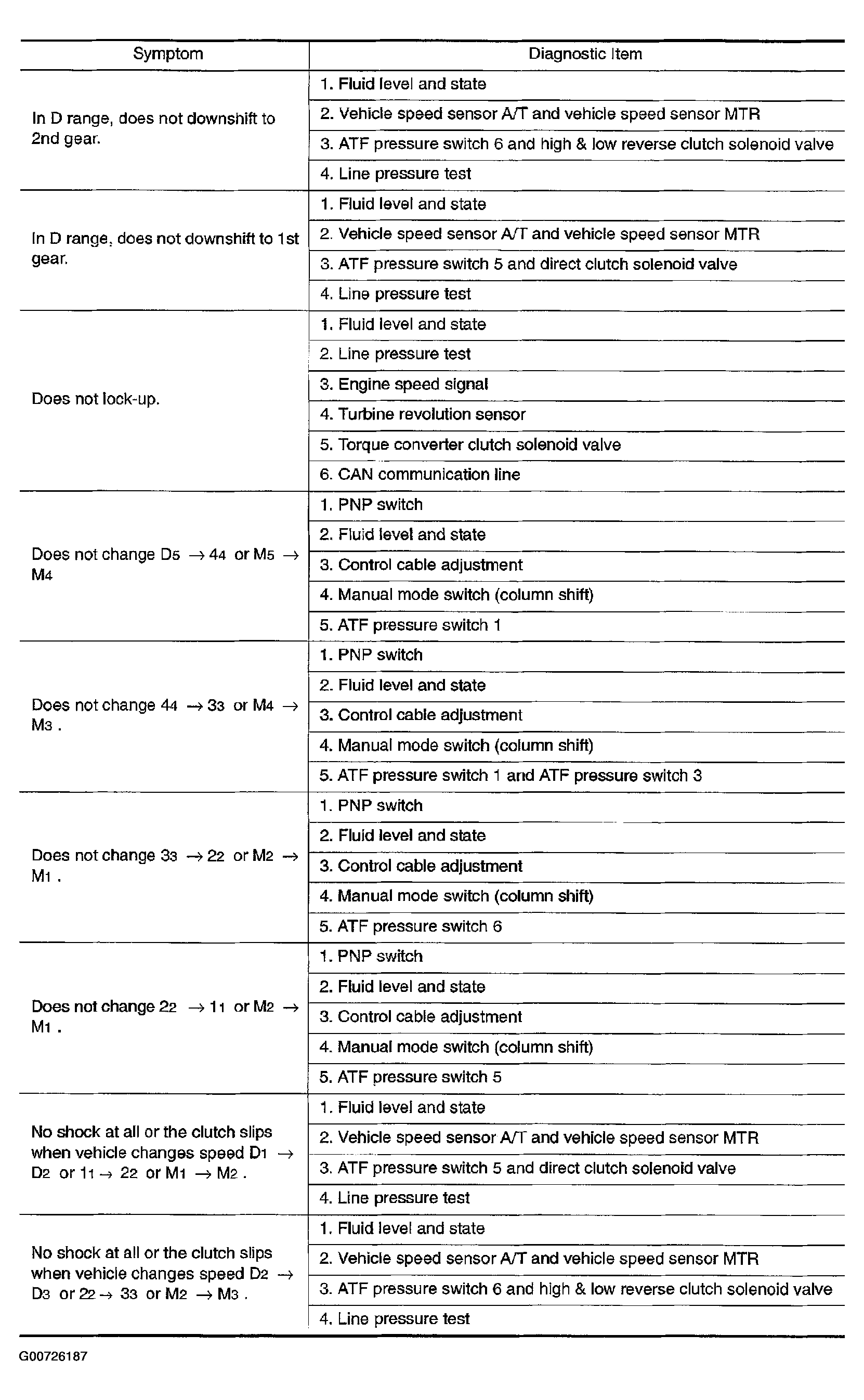

Fig 5: Symptom Chart (5 Of 9)

G00726187

Courtesy of NISSAN MOTOR CO., U.S.A.

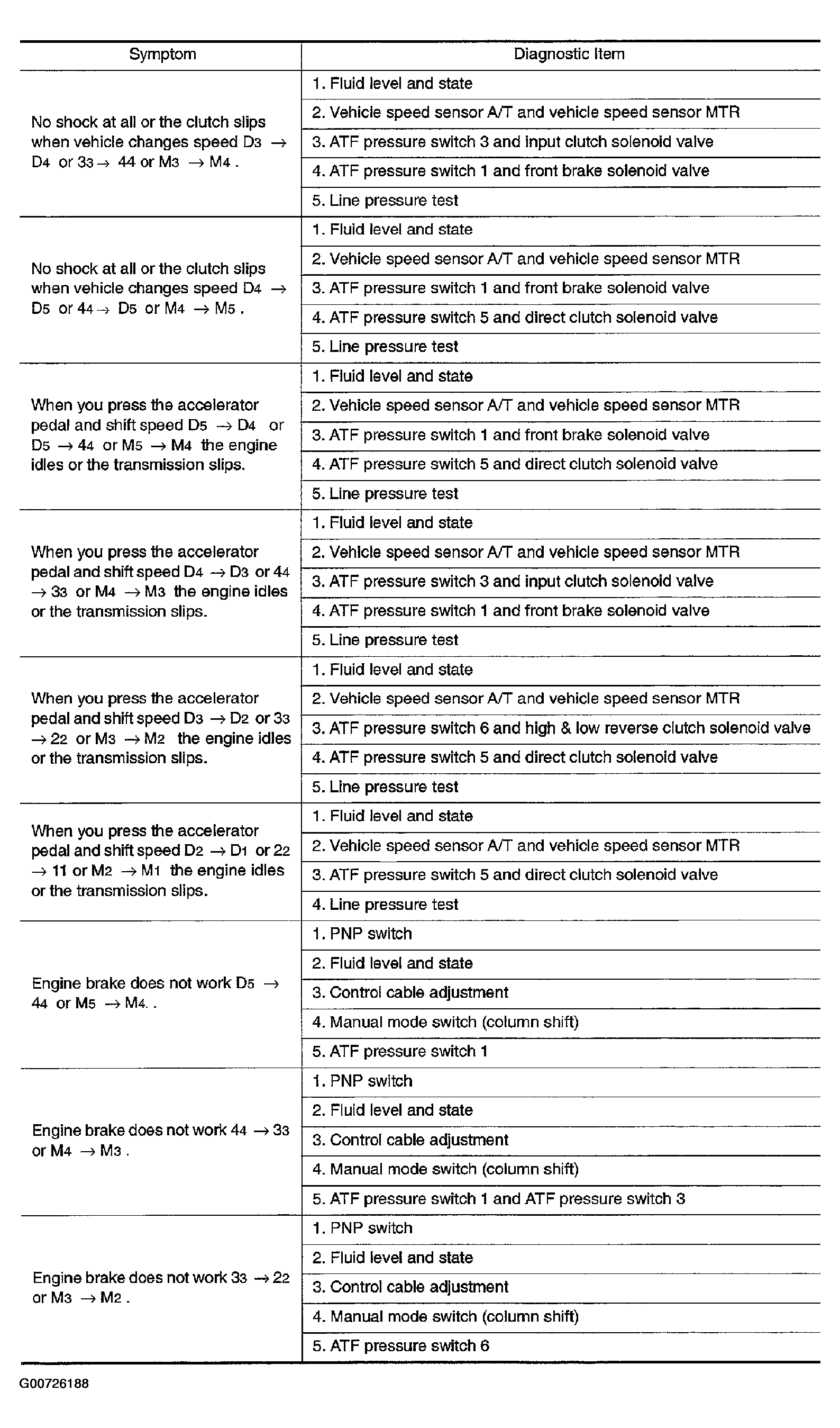

Fig 6: Symptom Chart (6 Of 9)

G00726188

Courtesy of NISSAN MOTOR CO., U.S.A.

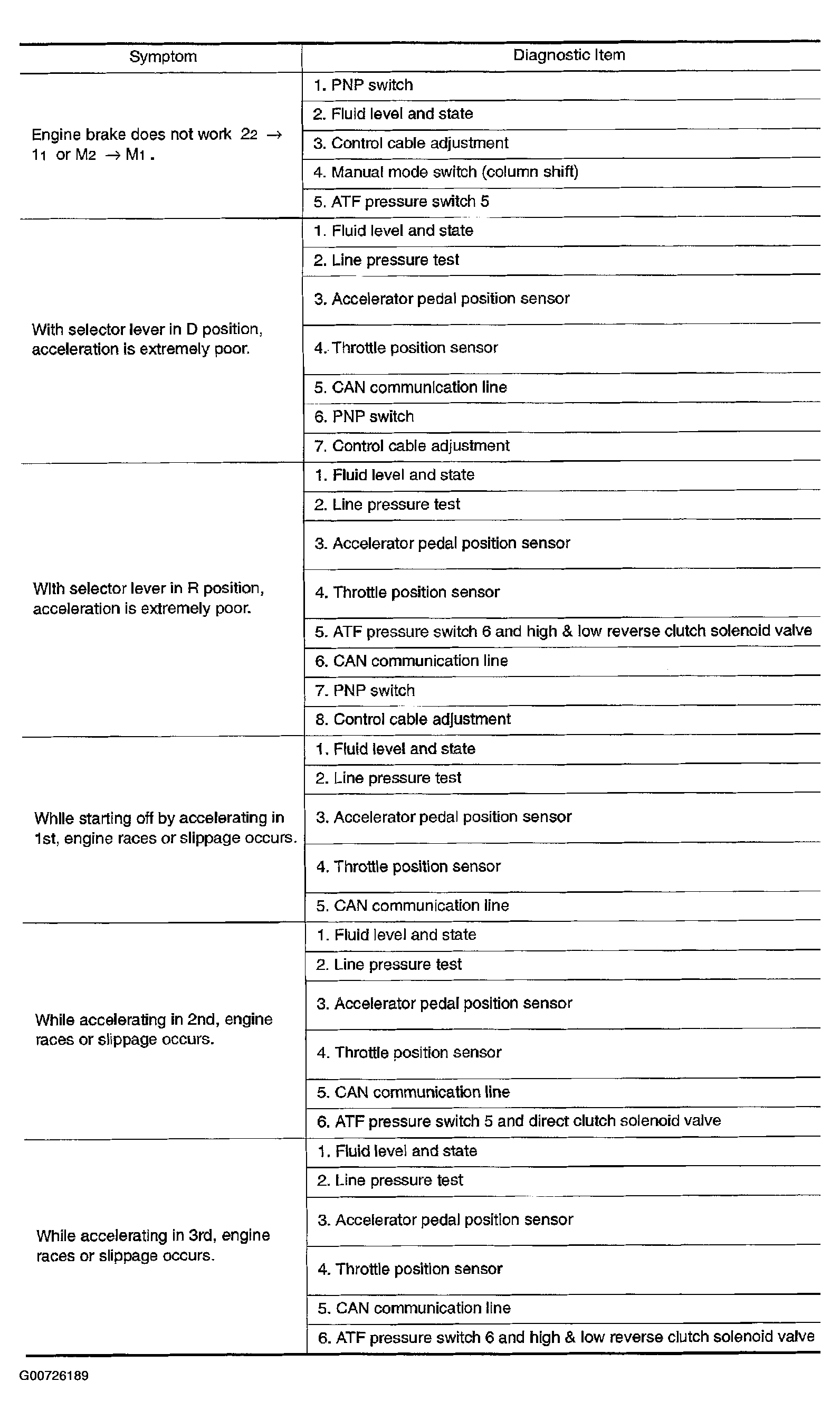

Fig 7: Symptom Chart (7 Of 9)

G00726189

Courtesy of NISSAN MOTOR CO., U.S.A.

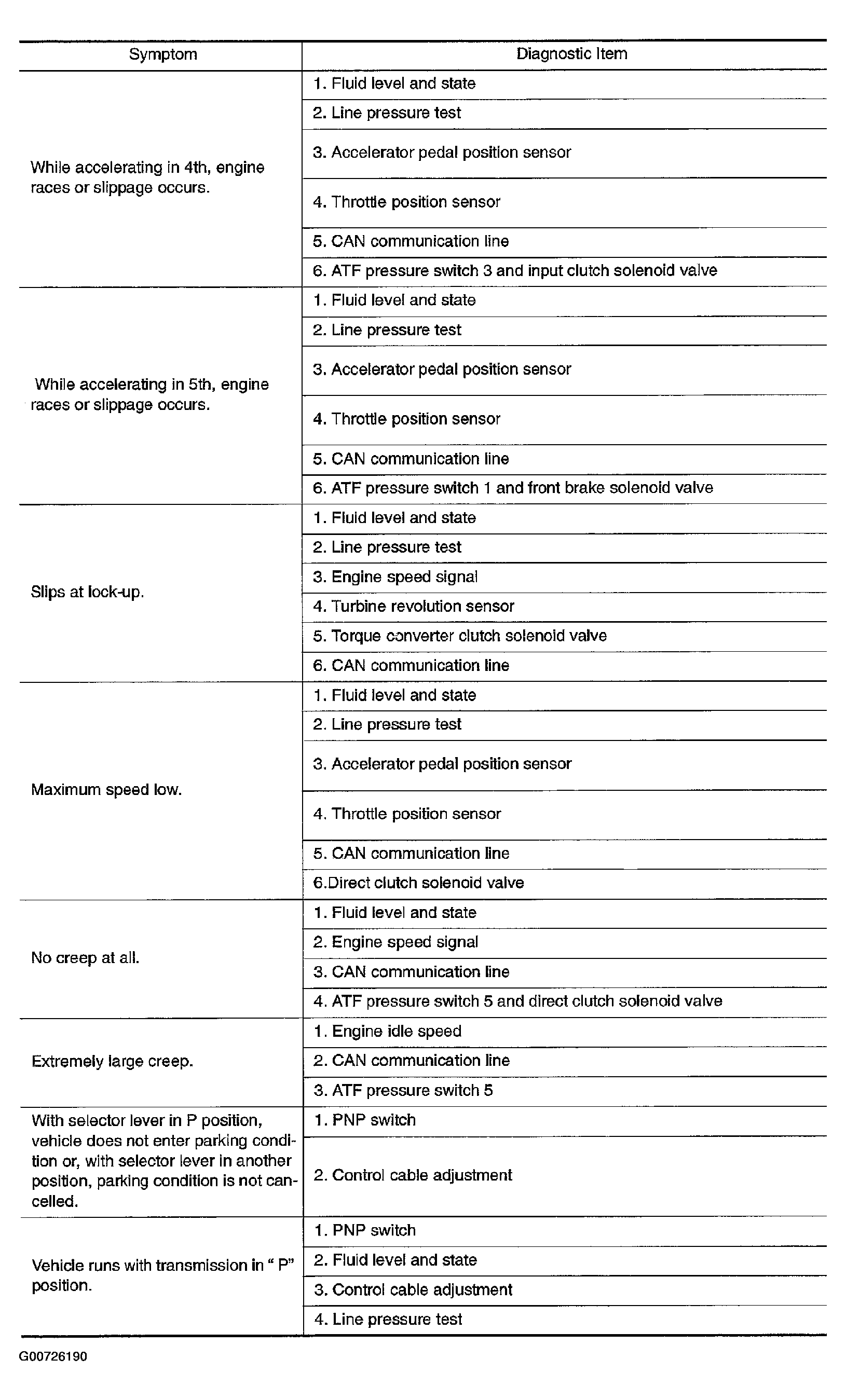

Fig 8: Symptom Chart (8 Of 9)

G00726190

Courtesy of NISSAN MOTOR CO., U.S.A.

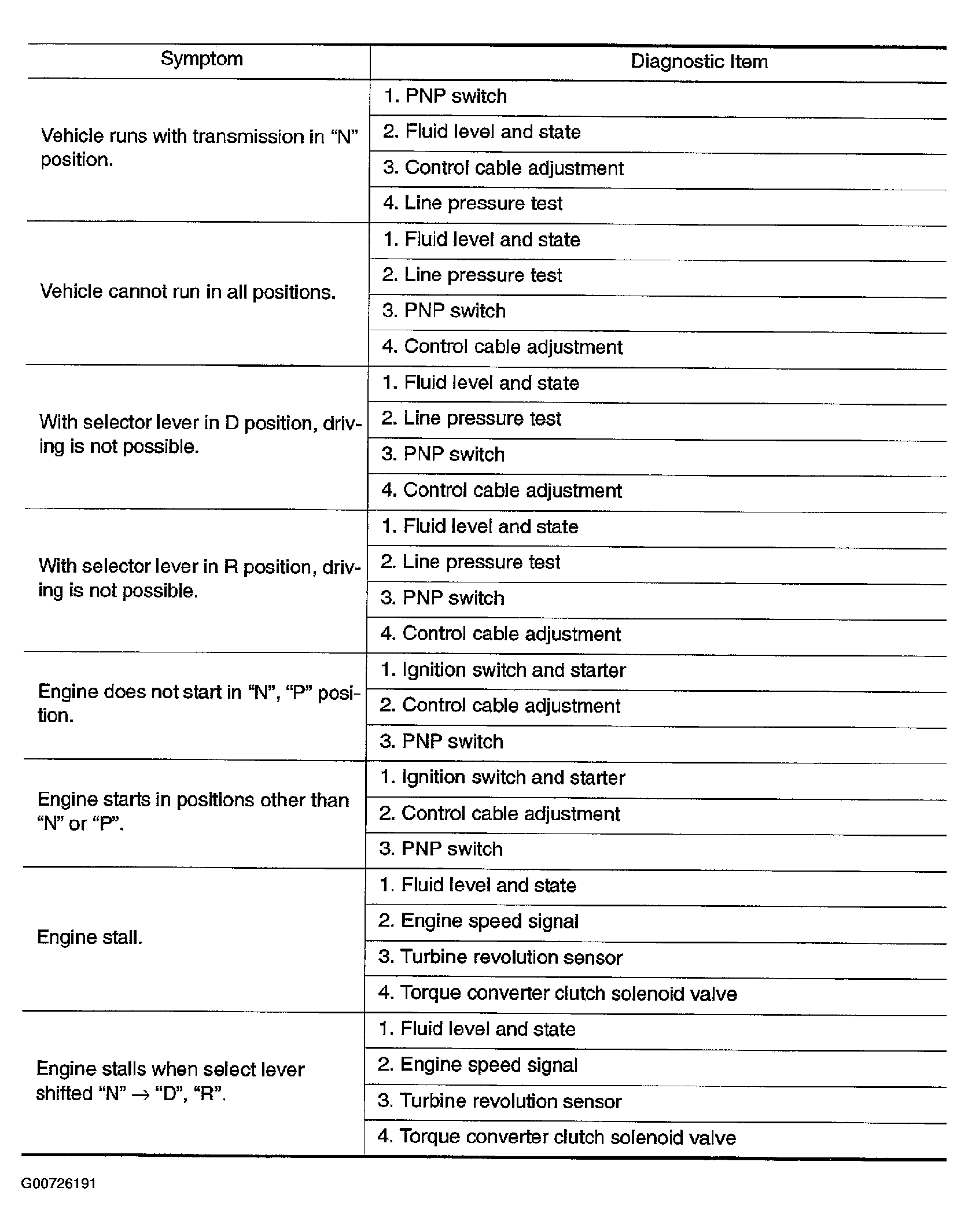

Fig 9: Symptom Chart (9 Of 9)

G00726191

Courtesy of NISSAN MOTOR CO., U.S.A.
