Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If friction material is detected, flush the transmission cooler after repair, refer to A/T FLUID COOLER CLEANING .

Install the oil pan magnet.

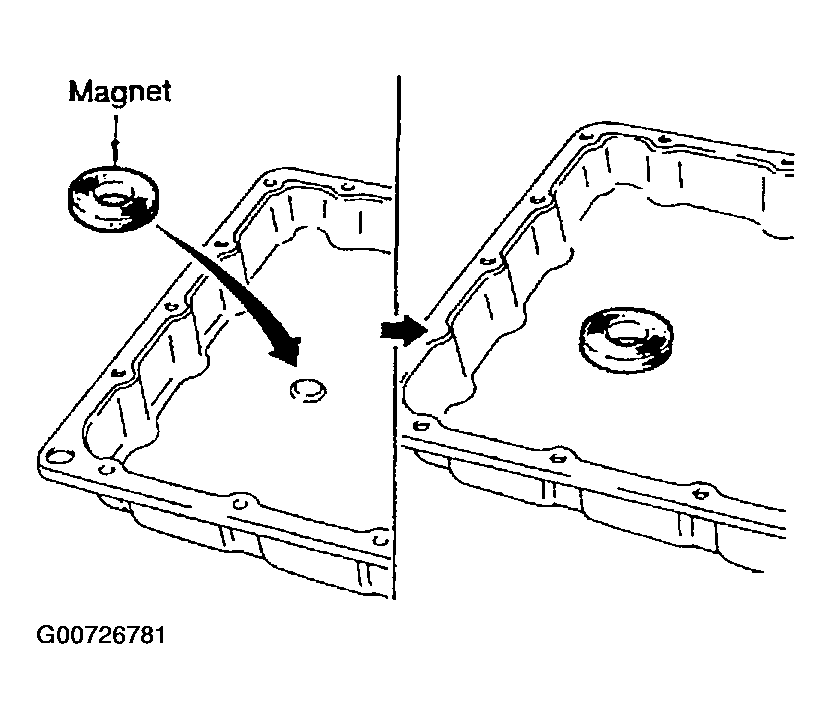

Fig 1: Installing The Oil Pan Magnet
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the oil pan and gasket.
CAUTION:
- Be sure the oil pan drain plug is located to the rear of the transmission assembly.
- Before installing oil pan bolts, remove any traces of old sealant from the sealing surfaces and threaded holes.
- Do not reuse old gasket, replace with a new one.
- Always replace the oil pan bolts as they are self-sealing.
- Partially install the oil pan bolts in a crisscross pattern to prevent dislocation of the gasket.
Tighten oil pan bolts as shown.
1. Oil pan bolts : 7.9 N.m (0.81 kg-m, 70 in-lb)

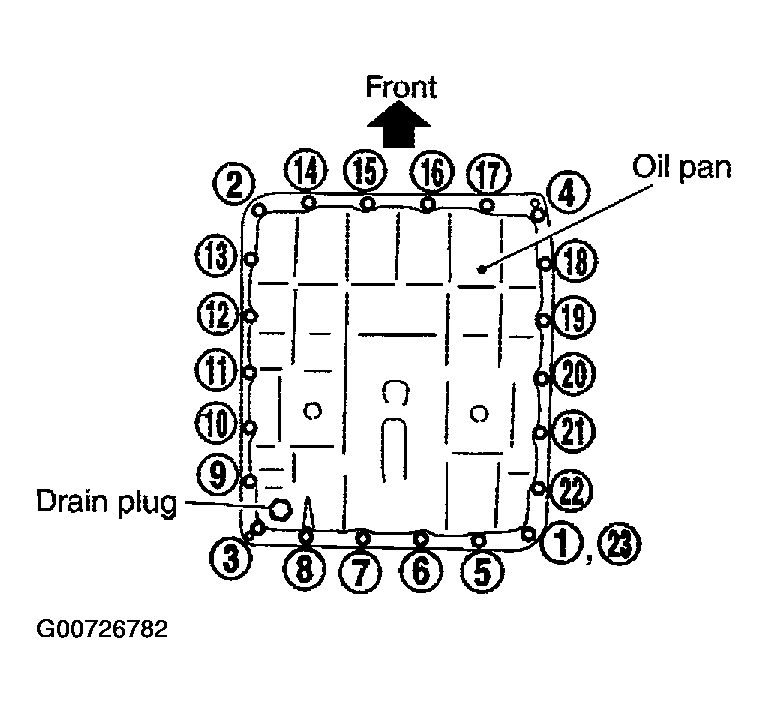

  Fig 2: Oil Pan Bolt Tightening Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drain plug in oil pan.
CAUTION: Do not reuse old drain plug gasket replace with a new one.
1. Drain plug : 34 N.m (3.5 kg-m, 25 ft-lb)
Refill the transmission assembly with fluid.
