With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
  3. Start engine and wait for at least 6 seconds.
  4. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

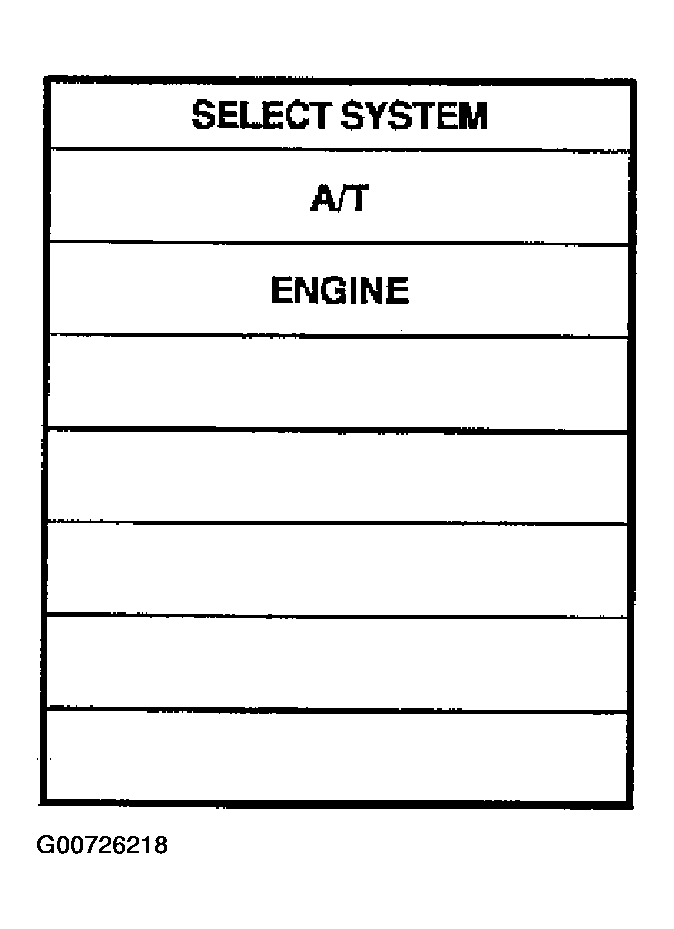

Fig 1: CONSULT-II Display
G00726218Courtesy of NISSAN MOTOR CO., U.S.A.
