With CONSULT-II
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Start engine.
- Accelerate vehicle to maintain the following conditions.
ACCELE POS : 1.5/8 - 2.0/8
Selector lever : "D" position
Gear position : 1st --> 2nd Gear (D/C ON/OFF)
Driving location : Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.
- Perform step "2" again.
- Turn ignition switch "OFF", then perform step "1" to "3" again.

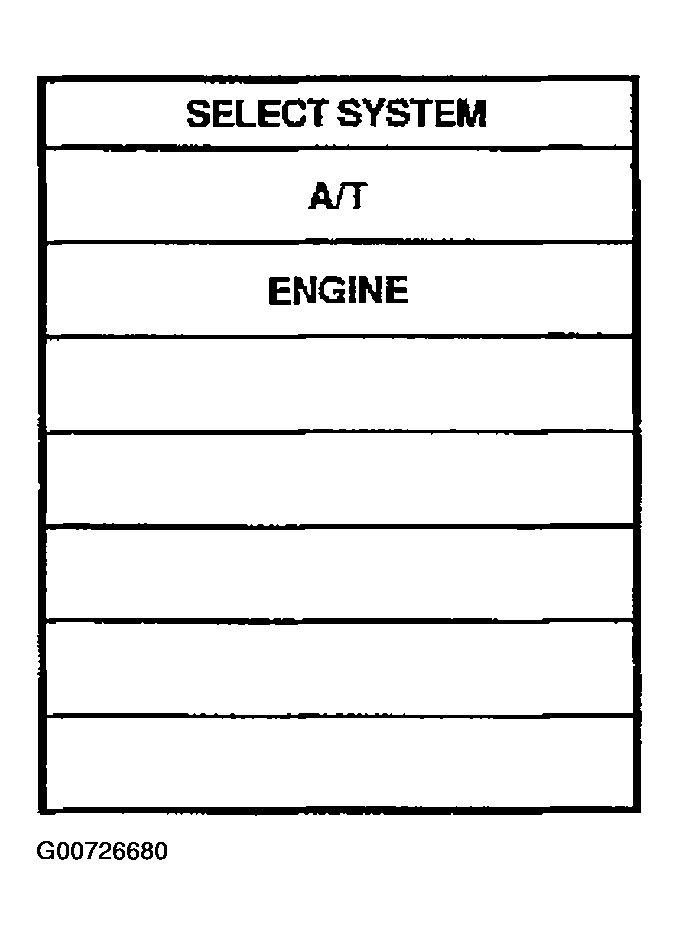

- Check "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II. If DTC (P1764) is detected, refer to DIAGNOSTIC PROCEDURE . If DTC (P1762) is detected, go to DIAGNOSTIC PROCEDURE . If DTC (P1845) is detected, go to DIAGNOSTIC PROCEDURE .
