3. Check Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between stop lamp switch harness connector E38 terminals 1 (R/Y) and 2 (R/G).

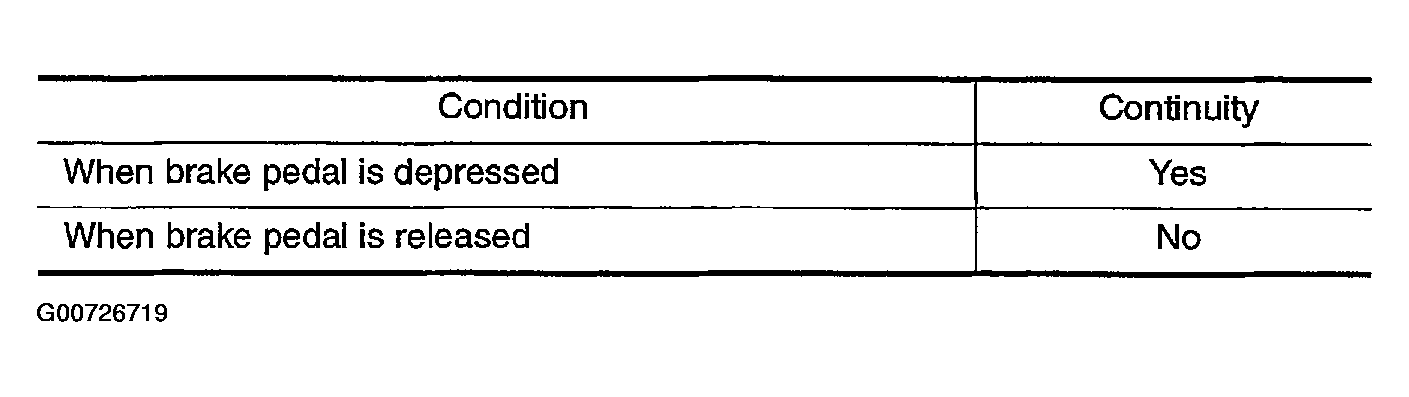

Fig 1: Continuity Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal---refer to ADJUSTMENTS in DISC - TITAN article in BRAKES.

NOTE: For additional brake pedal information, see REMOVAL & INSTALLATION under BRAKE PEDAL in ADJUSTABLE PEDAL SYSTEM - TITAN article.

OK or NG

OK: INSPECTION END
NG: Check the following items. If NG, repair or replace damaged parts.

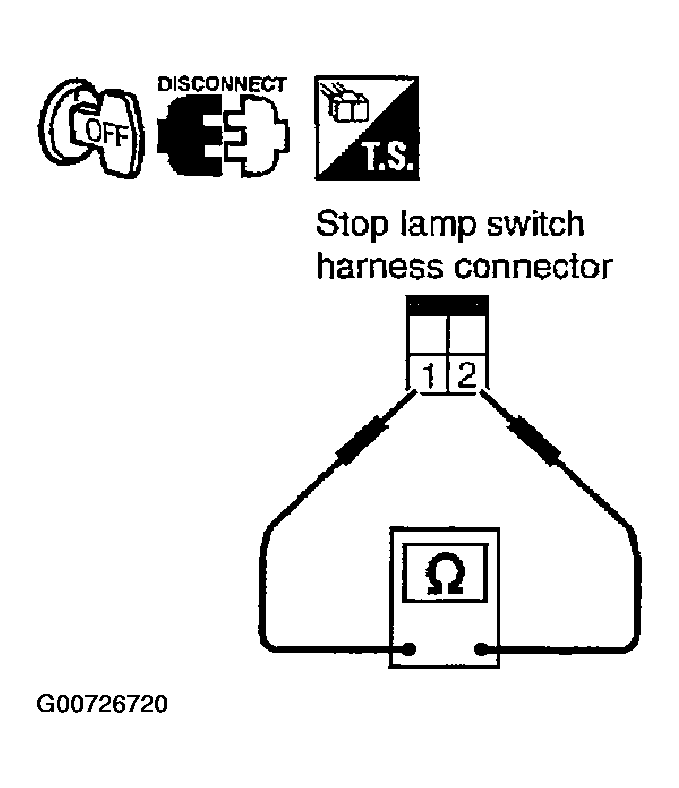

Fig 2: Checking Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

Harness for short or open between battery and stop lamp switch.
Harness for short or open between stop lamp switch and combination meter.
