3. Check Injector Power Supply Circuit

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect injector harness connector.

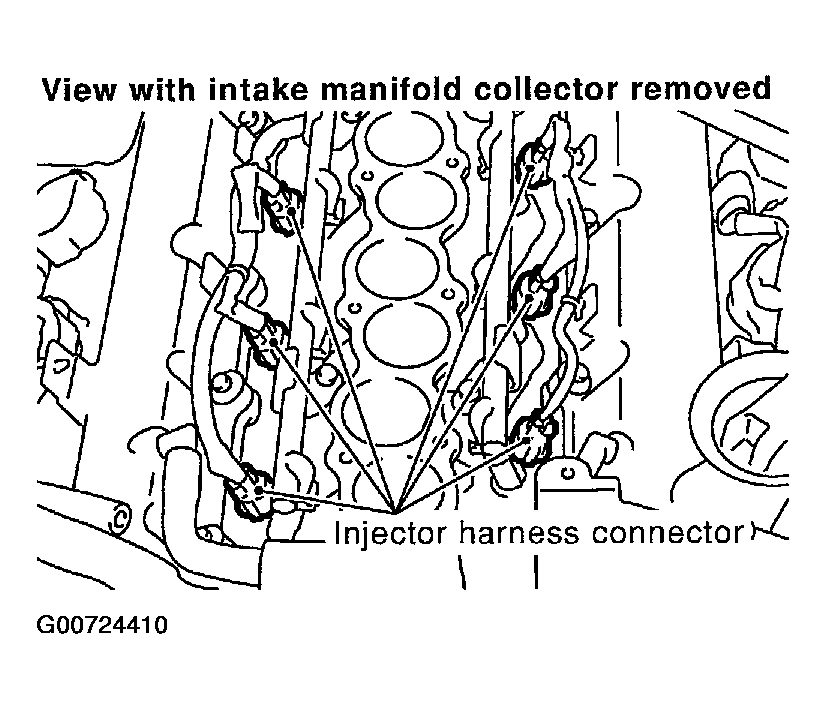

Fig 1: Locating Injector Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Check voltage between injector terminal 1 and ground with CONSULT-II or tester.

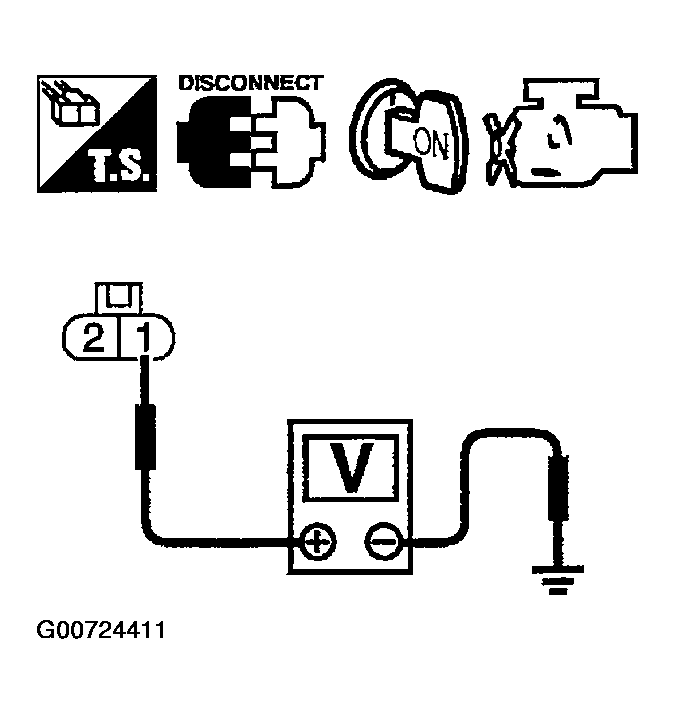

Fig 2: Checking Power Supply Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Voltage: Battery voltage

OK or NG

OK: GO TO 5 .

NG: GO TO 4.
