4. Check App Sensor 2 Power Supply Circuit-I

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check voltage between APP sensor terminal 4 and ground with CONSULT-II or tester.

Voltage: Approximately 5V

OK or NG

OK: GO TO 10 .

NG: GO TO 5.

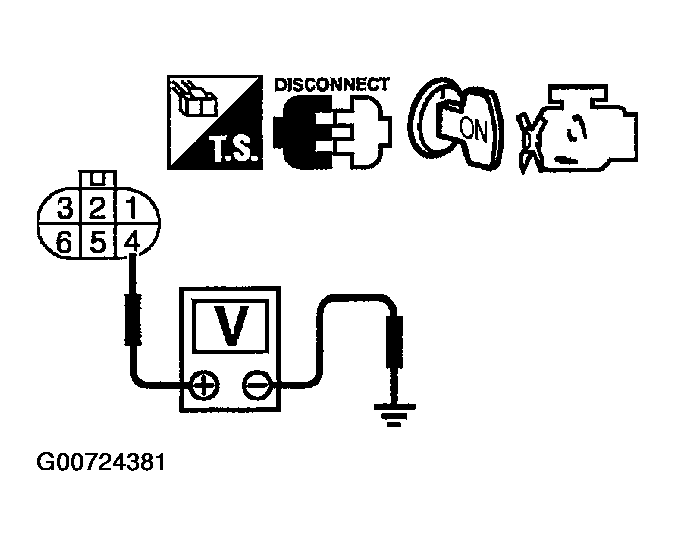

Fig 1: Checking APP Sensor 2 Power Supply Circuit-1

Courtesy of NISSAN MOTOR CO., U.S.A.
