Special Service Tools

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here in Fig 1-Fig 3 .

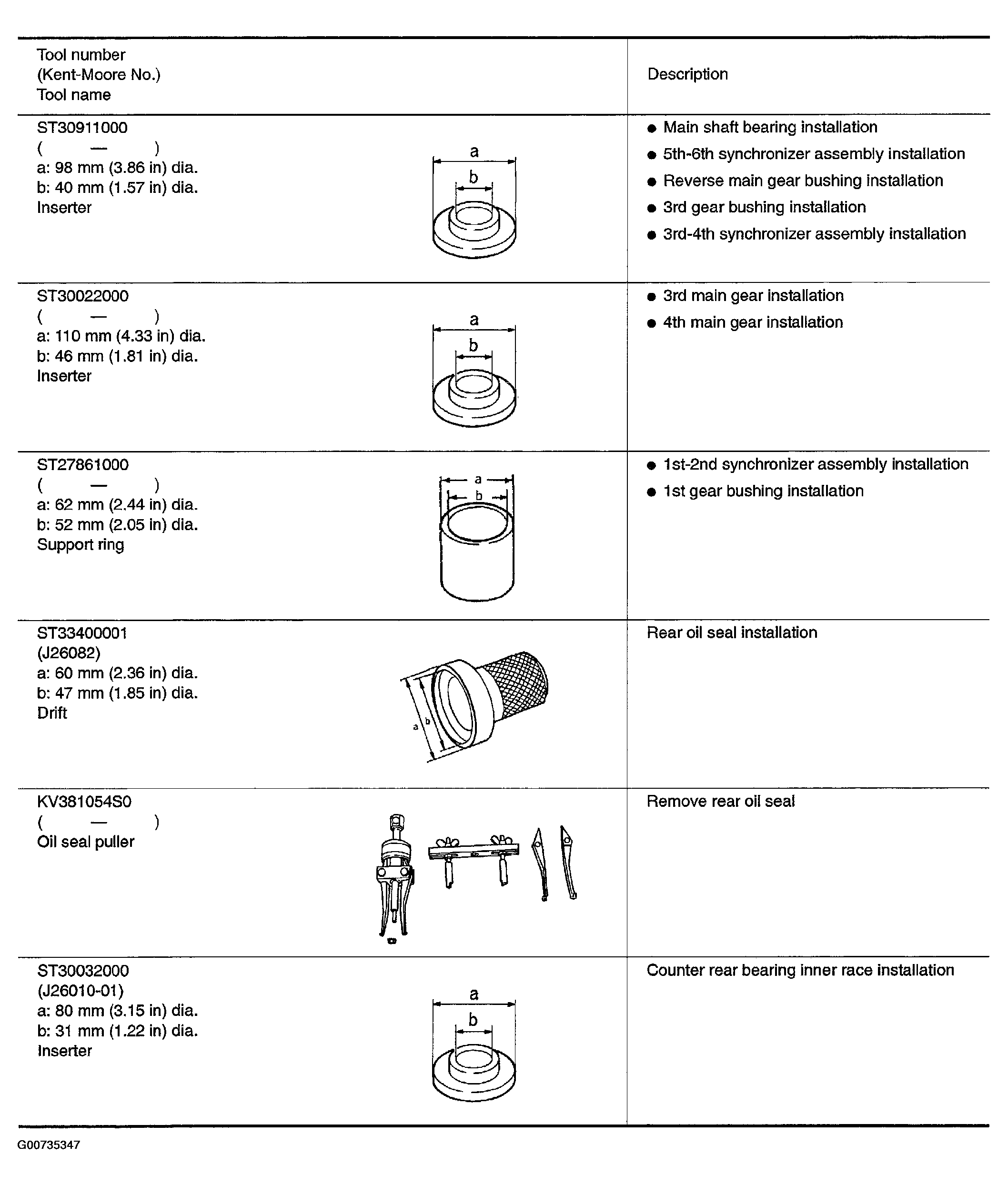

Fig 1: Special Service Tools (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

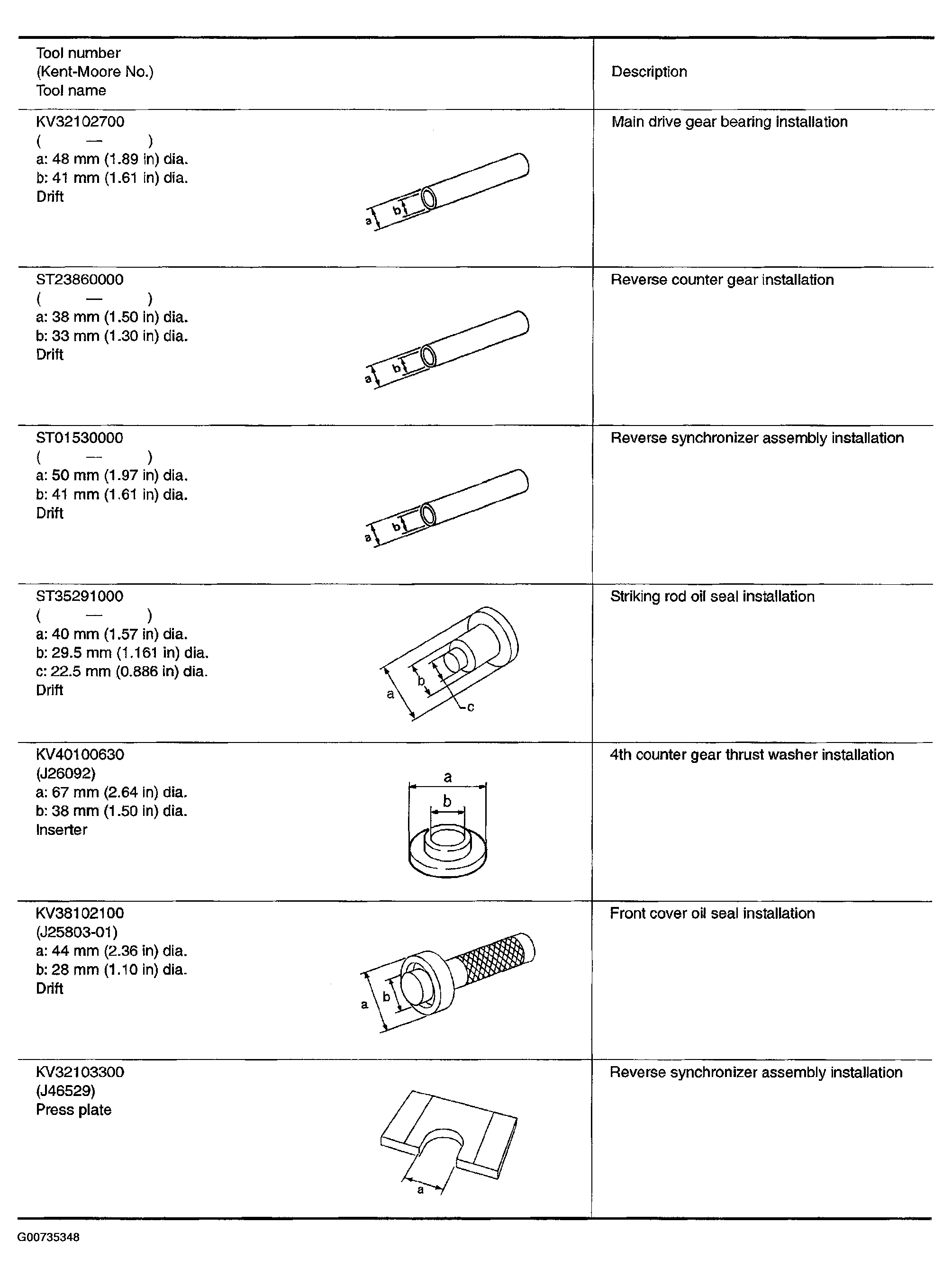

Fig 2: Special Service Tools (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

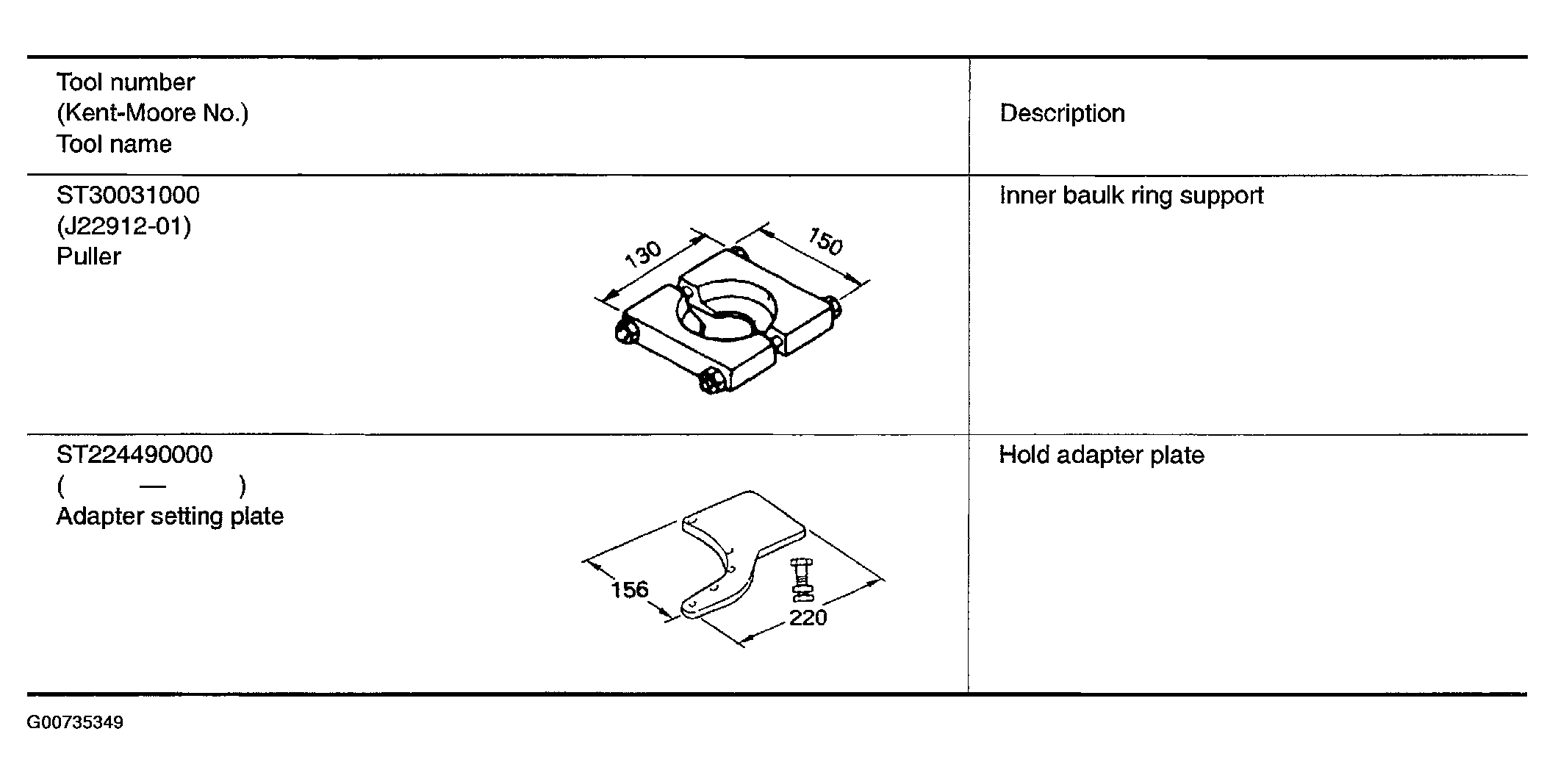

Fig 3: Special Service Tools (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
