Triple-Cone Synchronizer

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

The 2nd gear is equipped with a triple-cone synchronizer to reduce the operating force of the shift lever as shown in Fig 1.

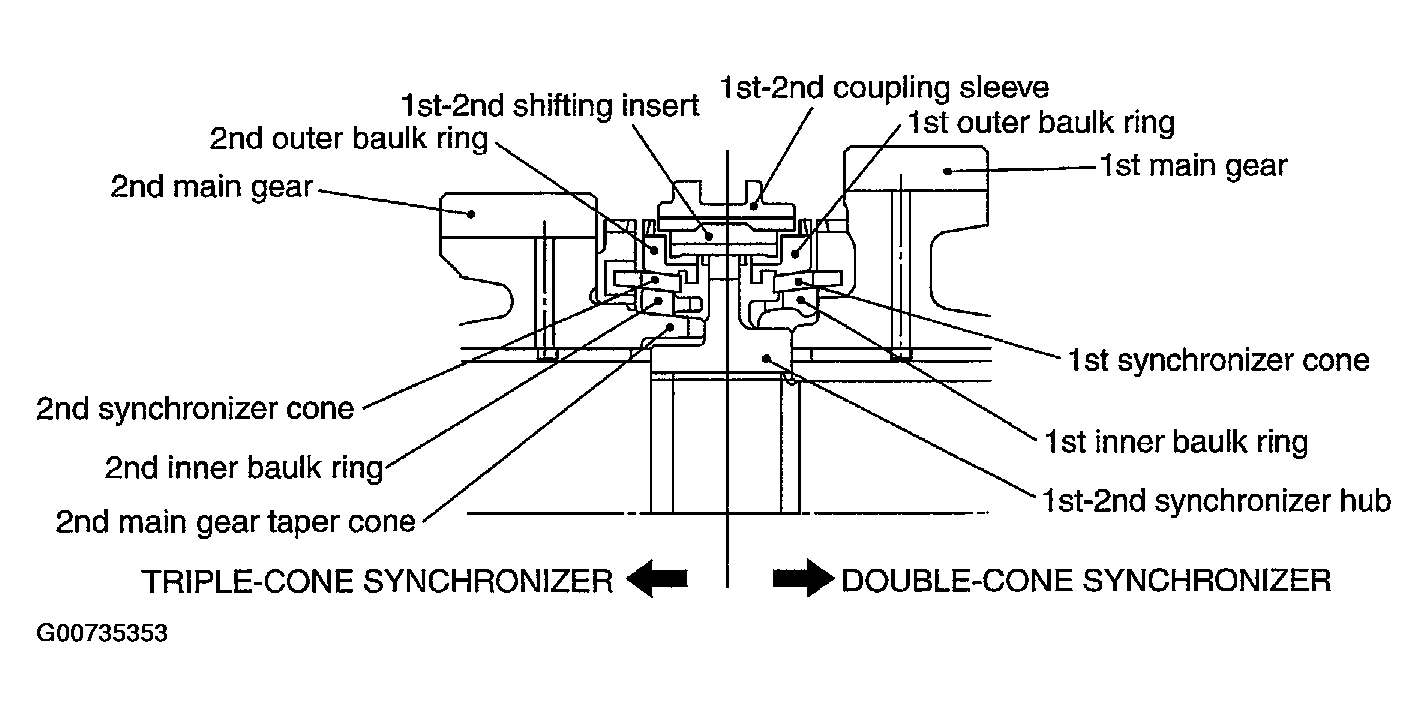

Fig 1: Cross-Sectional View Of Double-Cone & Triple-Cone Synchronizer
G00735353Courtesy of NISSAN MOTOR CO., U.S.A.
