Trouble Diagnosis: Wiring Diagram

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

For complete wiring diagrams, see ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS - TITAN article.

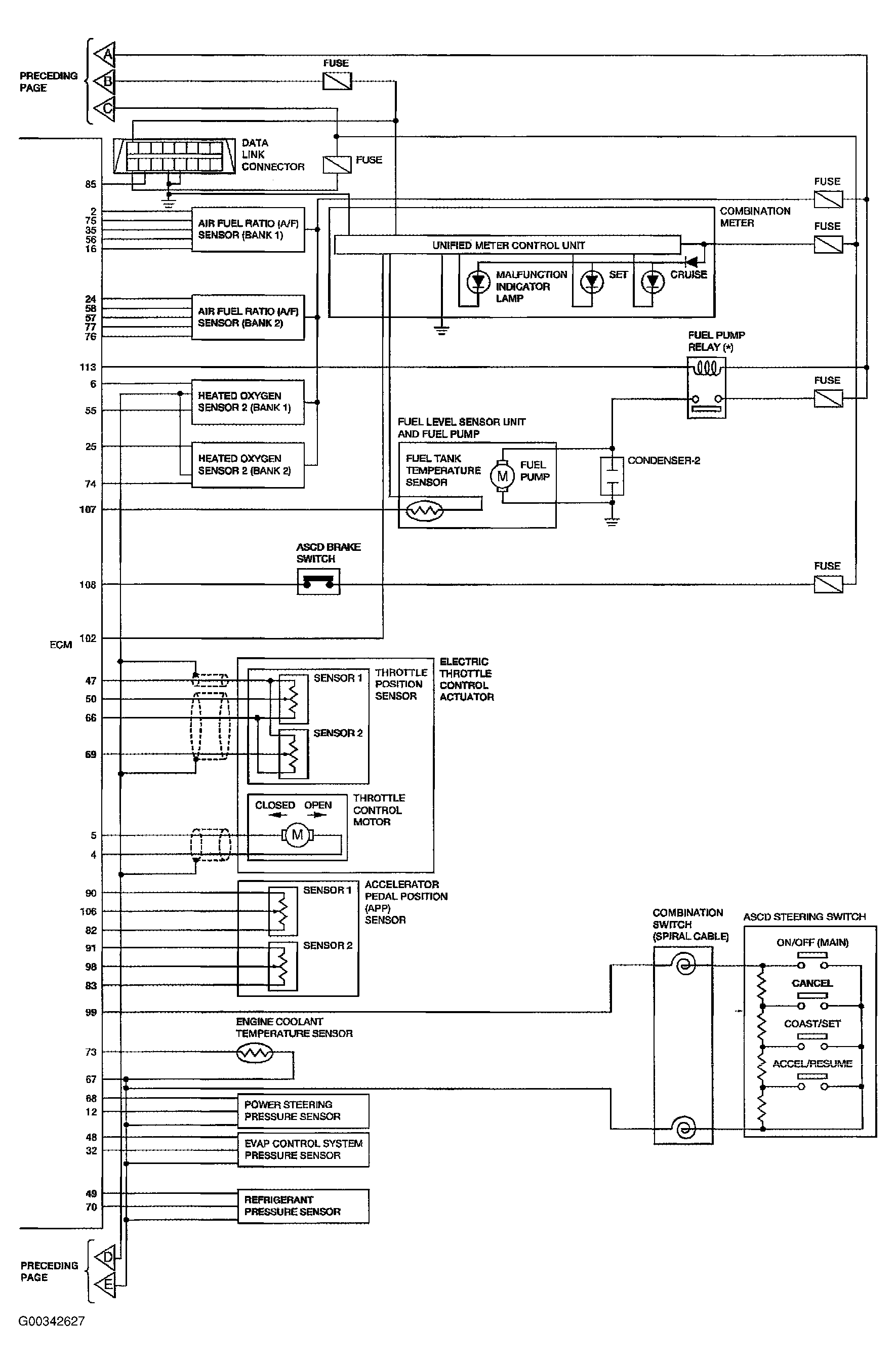

Fig 1: Circuit Schematic (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

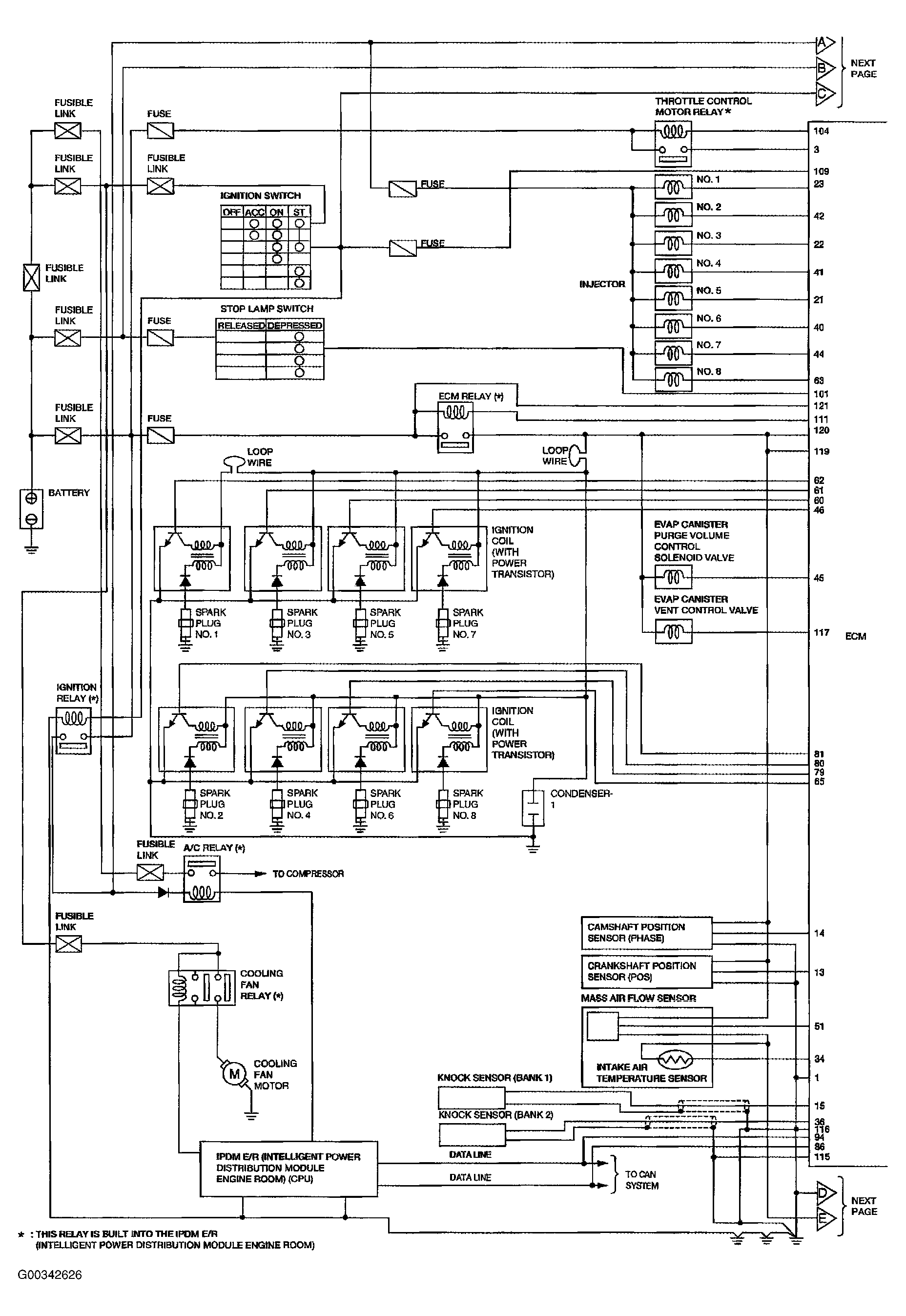

Fig 2: Circuit Schematic (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
